Product Introduction:

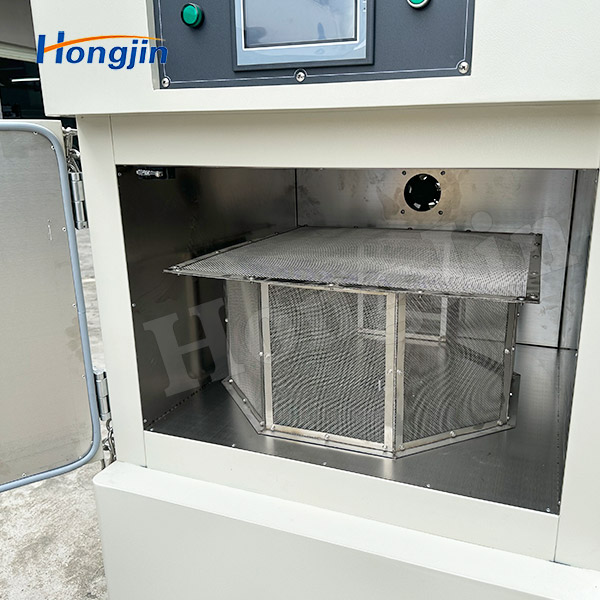

This machine is used for testing the fire resistance of lithium batteries (or battery packs). On a test platform, a circular hole with a diameter of 102mm is drilled, and a steel mesh is placed over the hole. The battery to be tested is placed on the steel mesh. An octagonal aluminum mesh is installed around the sample. The burner is then ignited to heat the sample until the battery explodes or burns completely, and the combustion process is timed.
Applicable Standards:
GB/T 31241-2014: “Safety requirements for lithium-ion batteries and battery packs used in portable electronic products”
UL 1642:2012: “Lithium Battery Standard”
UN38.3 (2012): “Recommendations on the Transport of Dangerous Goods – Part 3: Test Manual and Standards”
IEC 62133-2012: “Safety requirements for secondary cells and batteries containing alkaline or non-acid electrolytes”

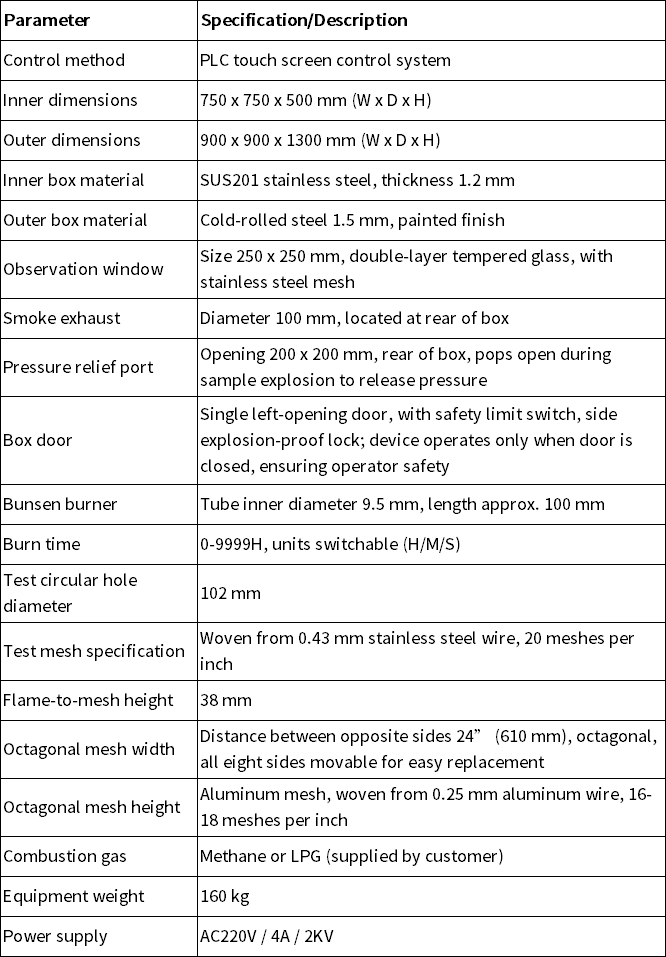

Product Parameters:

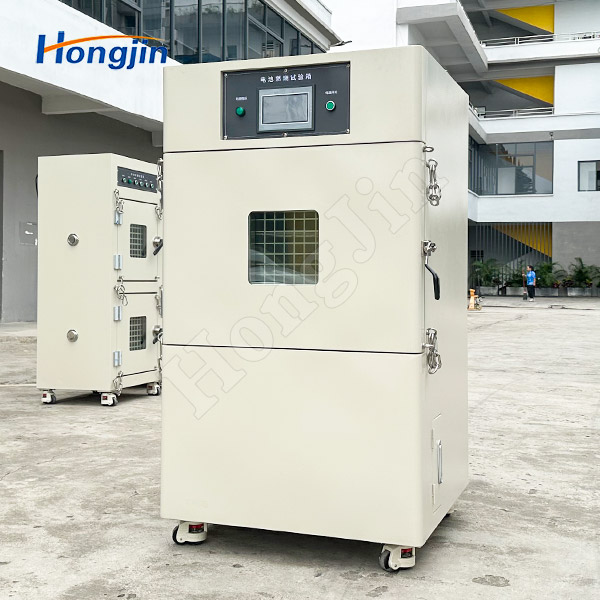

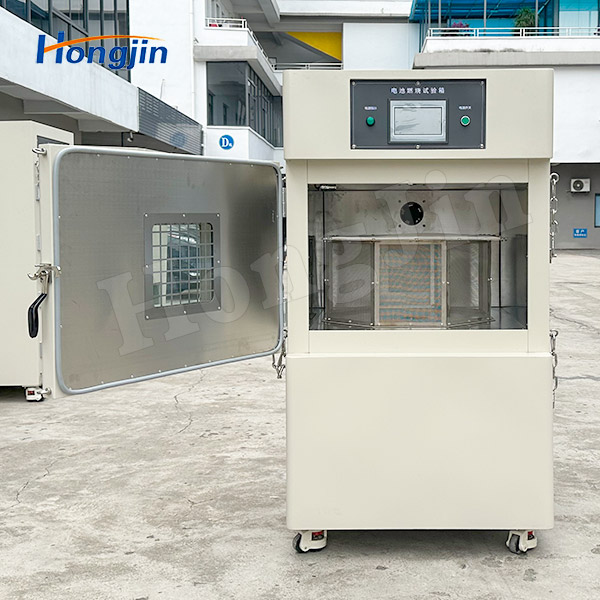

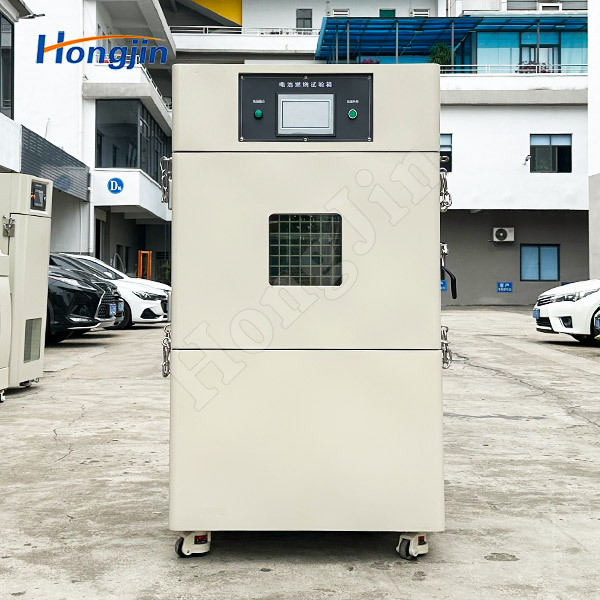

Actual Product Photos:
