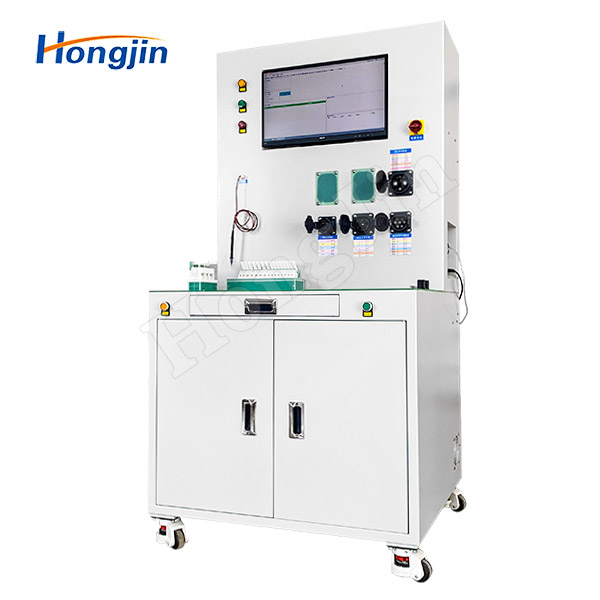

Charging pile comprehensive tester

Application Scope:

This equipment is used to test whether the discharge indicator of the charging gun operates normally, to verify the continuity between each connector pin and the cable end, and to perform insulation resistance and withstand voltage (hi-pot) tests between every two conductors.All test functions are automatically completed in a single test cycle, ensuring high efficiency, reduced labor requirements, and suitability for full inspection in mass production environments.

Applicable Standards:

1.GB/T 18487.2-2017Electric Vehicle Conductive Charging System – Part 2

2.GB/T 34657.1-2017Interoperability Test Specifications for Electric Vehicle Conductive Charging –Part 1: Supply Equipment

3.GB/T 34657.2-2017Interoperability Test Specifications for Electric Vehicle Conductive Charging –Part 2: Vehicle

4.GB/T 27930-2015Communication Protocol between Off-board Conductive Charger and Battery Management System (BMS) for Electric Vehicles

5.GB/T 18487.1-2015Electric Vehicle Conductive Charging System – Part 1: General Requirements

6.GB/T 20234.1-2015Connection Set for Conductive Charging of Electric Vehicles –

Part 1: General Requirements

7.GB/T 20234.2-2015Connection Set for Conductive Charging of Electric Vehicles –

Part 2: AC Charging Interface

8.GB/T 20234.3-2015Connection Set for Conductive Charging of Electric Vehicles –

Part 3: DC Charging Interface

9.Safety VoltageCompliant with the requirements of GB 3805

10.Equipment SafetyCompliant with the requirements of GB 8196

11.Residual Current ProtectionCompliant with the requirements of GB 3829

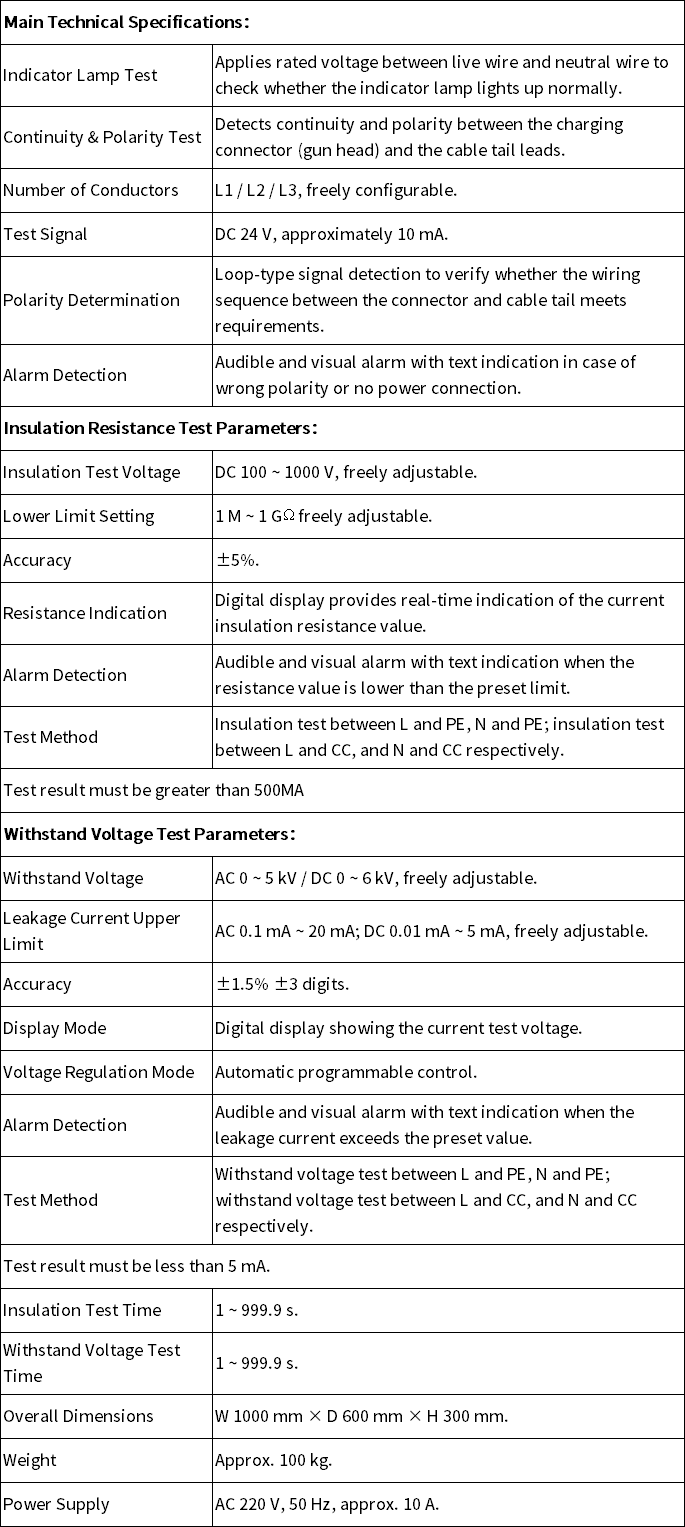

Product Parameters:

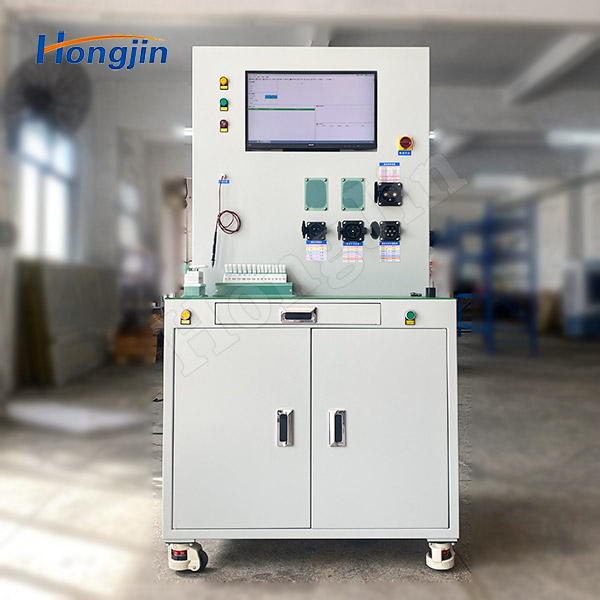

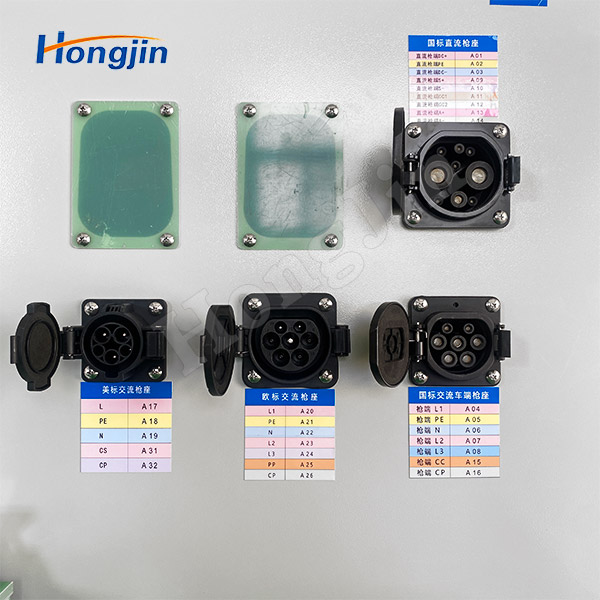

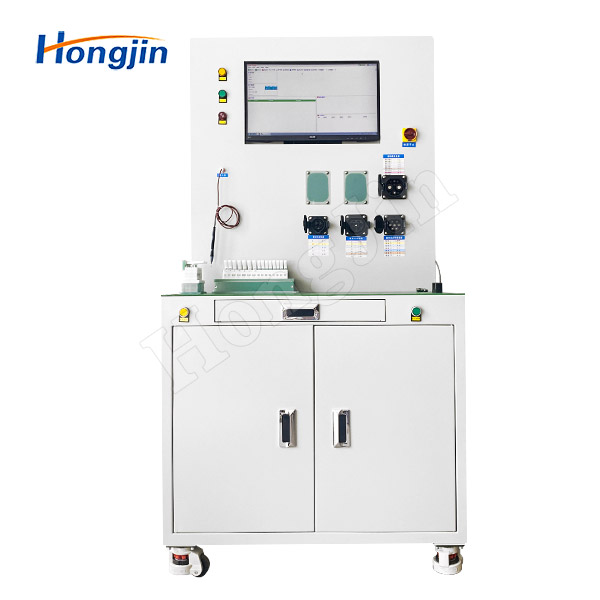

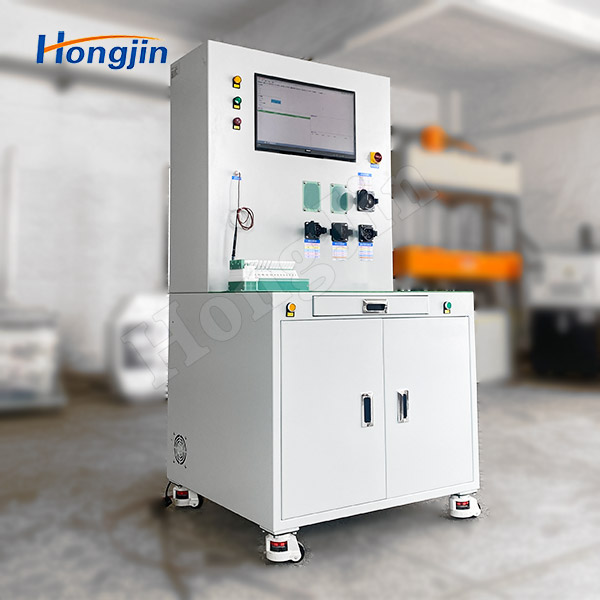

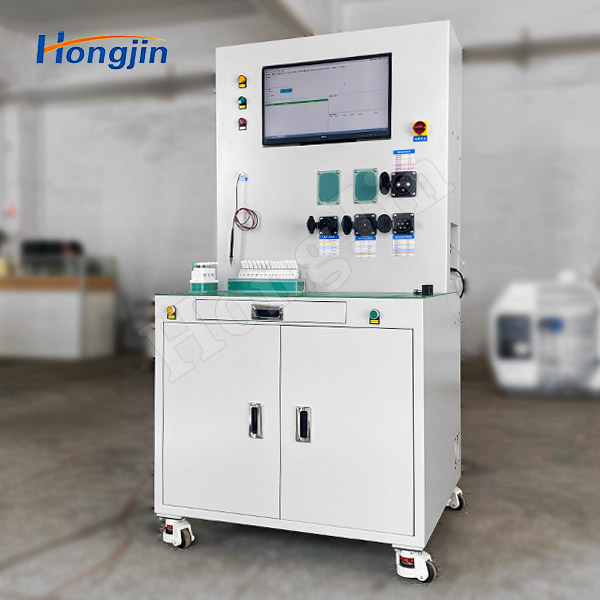

Actual Product Photos:

Company Profile:
