Scope of Application:
This instrument is used to measure and evaluate the impact resistance of products or packaging. It is capable of performing conventional impact tests with half-sine, trapezoidal, and post-peak sawtooth waveforms, simulating the impact shocks and impact energy that products may experience in real-world environments. The test results provide a scientific basis for systematically improving and optimizing product and packaging structural designs.
Product Features:
1.Multi-functional design: supports half-sine waveform (standard), post-peak sawtooth waveform (optional), and trapezoidal waveform (optional).
2.Fully automatic remote control: the test is completed automatically by simply entering basic parameters, with functions for data storage, printing, and editing.
3.Equipped with a secondary-impact prevention braking system and a fully digital control system capable of displaying real-time impact waveforms.
4.Optional high-acceleration generation system: peak impact acceleration up to 5,000–50,000 m/s², with acceleration duration of 0.2–1 ms.
5.Optimized structural design ensures no adverse impact on building floors during testing; the impact table is free from resonance, providing accurate and reliable test data.
6.Real-time test monitoring is supported, with full-waveform monitoring provided by the system.

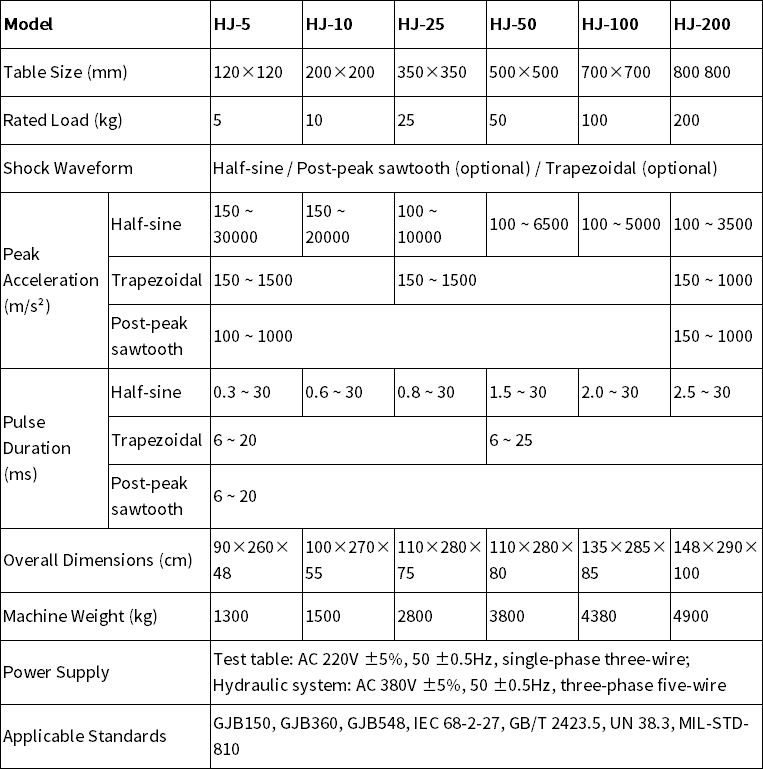

Product Parameters:

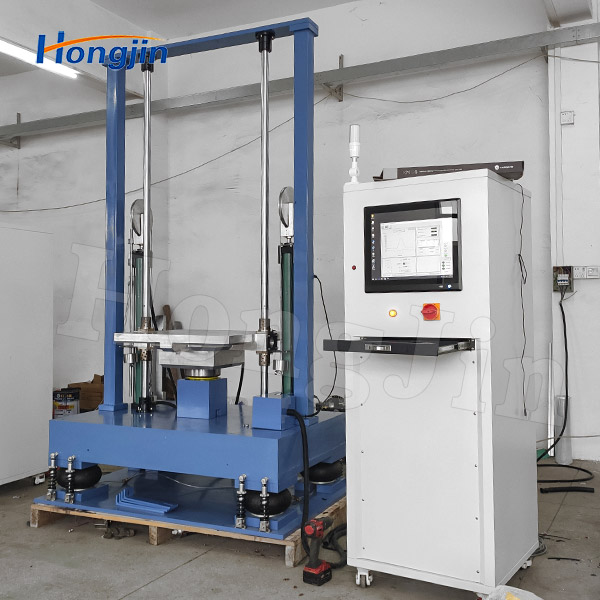

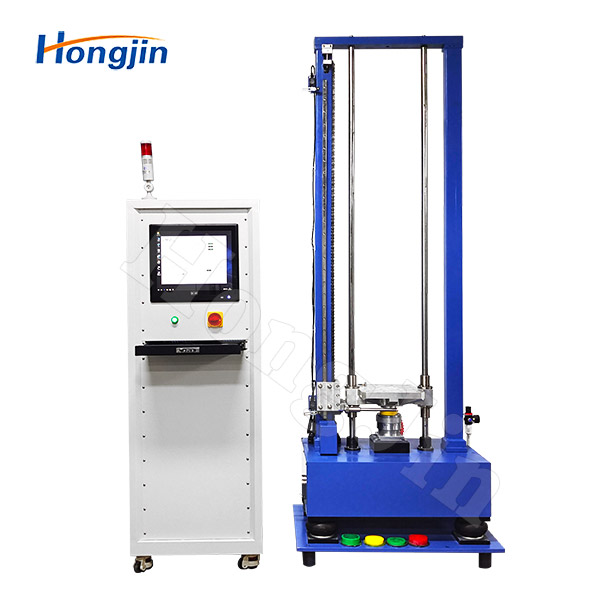

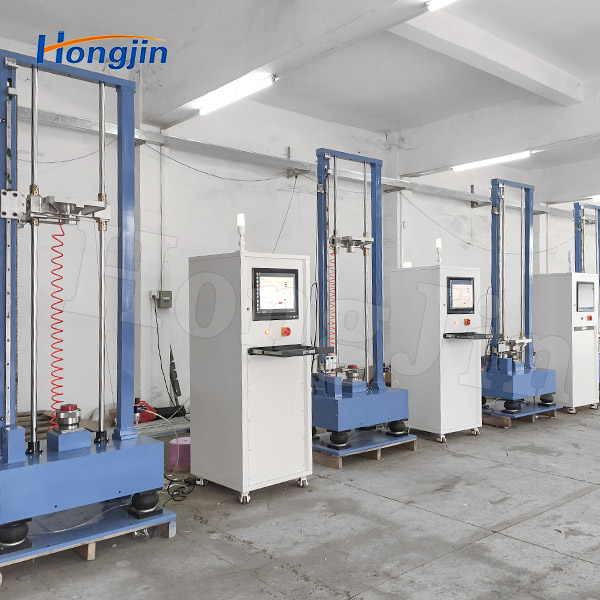

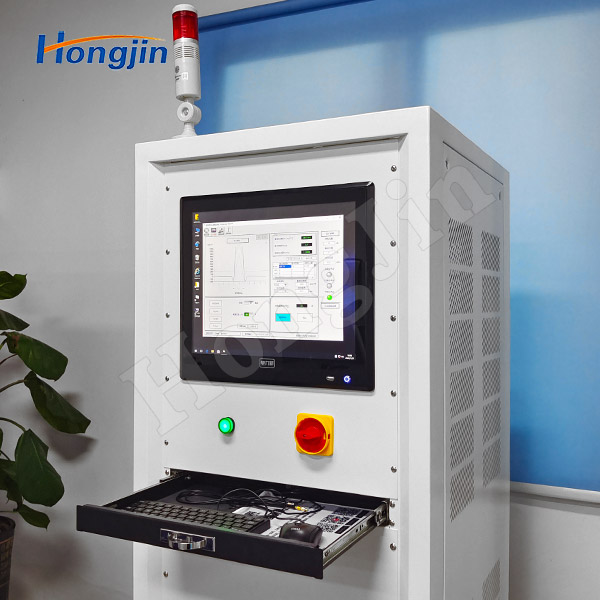

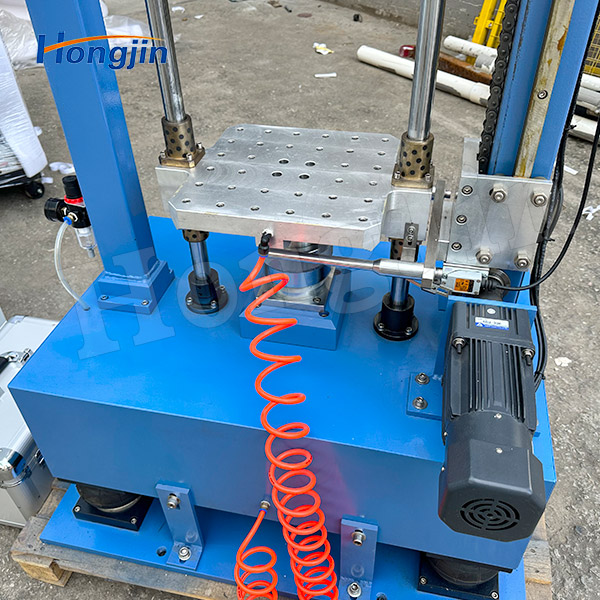

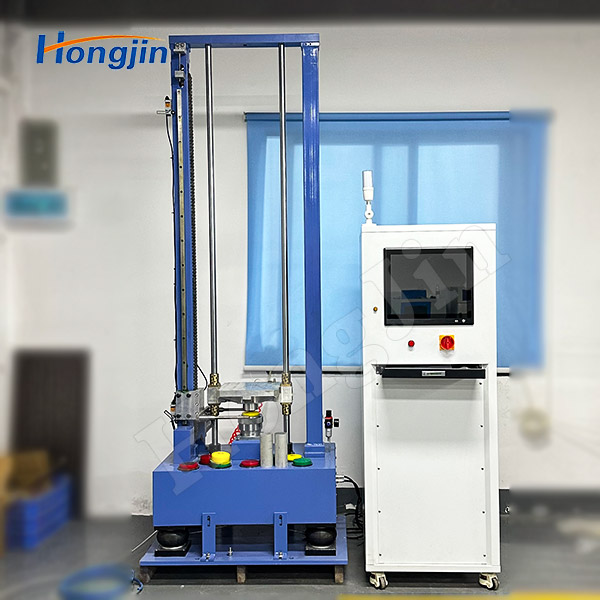

Actual Product Photos:
Company Profile:
