Application Scope:
The pneumatic vertical shock response spectrum test system is used to measure and determine the shock resistance of electrical and electronic products or their packaging, and to evaluate the reliability and structural integrity of the test items under shock environments.A shock response spectrum represents the combined results of a series of single-degree-of-freedom linear systems with different natural frequencies subjected to the same shock excitation. When a product is subjected to shock, the maximum value of its shock response indicates the maximum stress experienced by the product. Therefore, the shock response spectrum tester can more accurately simulate the shock waves and impact energy encountered in real-world environments.
Product Features:
1.1200 mm table size, capable of supporting a load of up to 1000 kg;
2.Stable, Windows-based control system with a fully automated control interface;
3.The control and measurement system has built-in shock response spectrum specifications and tolerance settings, allowing users to easily adjust and apply test parameters. Tests are completed automatically and reports are generated upon completion;
4.Impact driving energy is adjusted by regulating air pressure, ensuring convenient operation and high efficiency;
5.Compact footprint with easy installation.

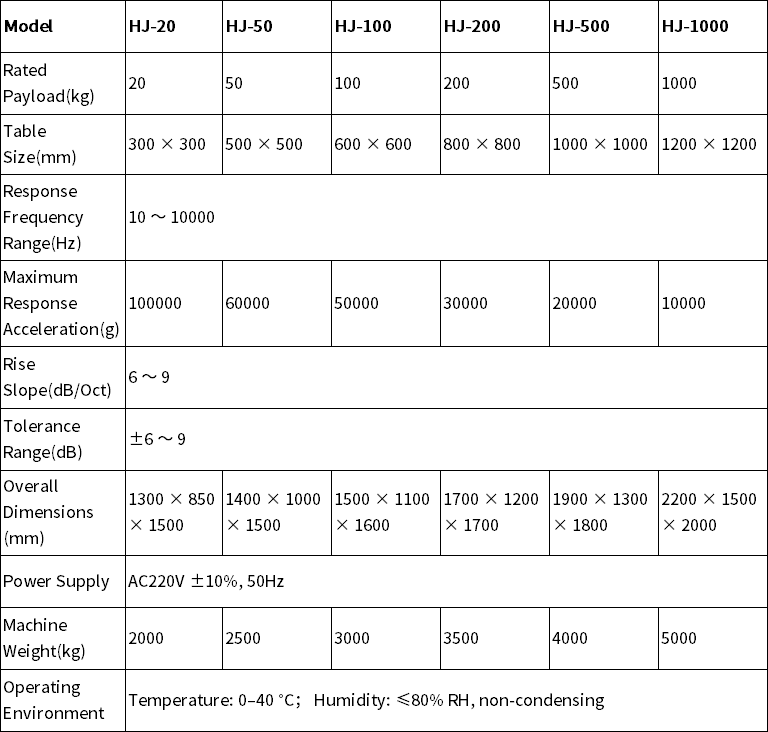

Product Parameters:

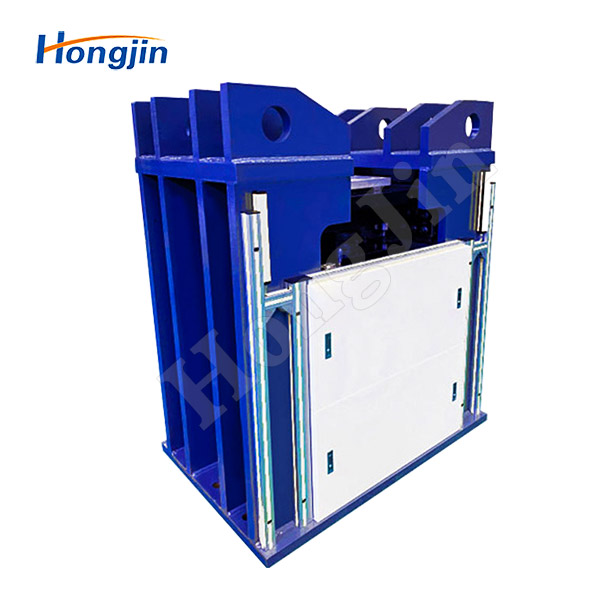

Actual Product Photos:
