HONGJIN
Application Scope:
The Battery Pack Short Circuit Tester is primarily used to evaluate the safety of batteries under external short circuit conditions. Its application range covers various battery types, application scenarios, and structural forms.
Product Features:
This equipment is designed in compliance with multiple battery short-circuit test standards. According to standard requirements, the short-circuit device must meet an internal resistance range of 80 ± 20 mΩ (or ≤ 10 mΩ) to obtain the maximum short-circuit current required for testing.In addition, the circuit design of the short-circuit device must be capable of withstanding high-current impacts. Therefore, industrial-grade DC electromagnetic contactors, all-copper terminals, and internal copper busbars are used. The wide and thick copper busbars effectively enhance heat dissipation, making the high-current short-circuit system safer, significantly reducing equipment wear during testing, and ensuring the accuracy and reliability of test data.

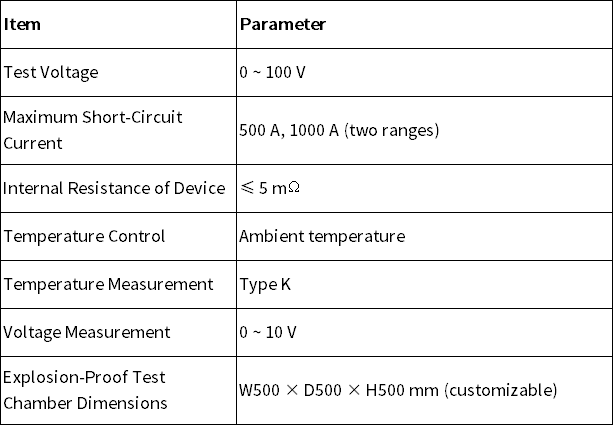

Product Parameters:

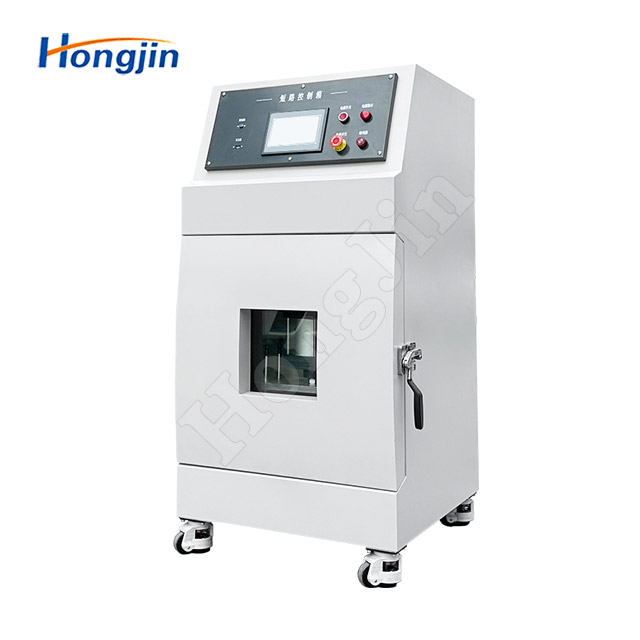

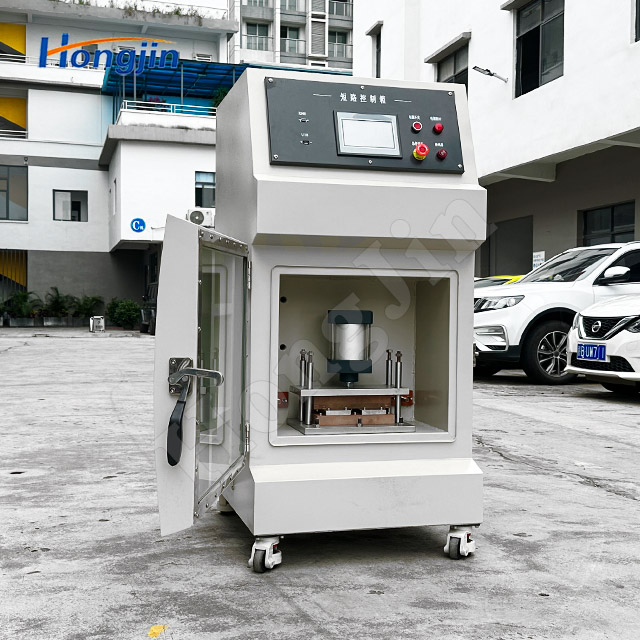

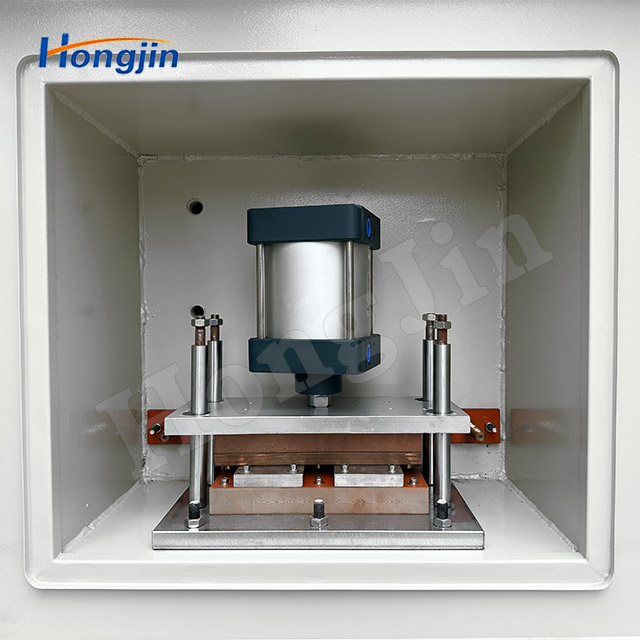

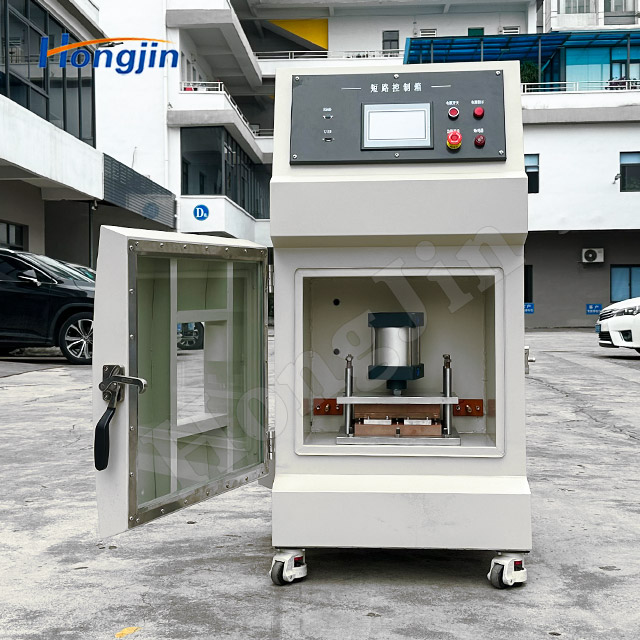

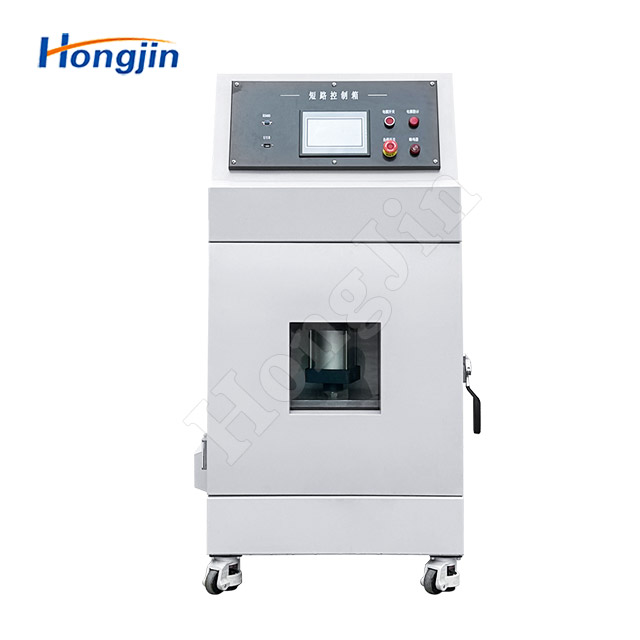

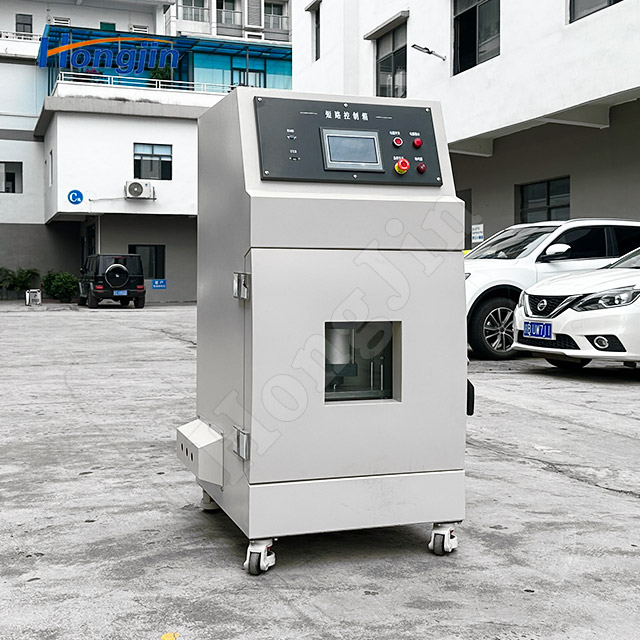

Actual Product Photos:
