Scope of Application:
The full-vehicle road test machine combined with a brake performance testing device is mainly used to assess the braking performance and dynamic performance of two-wheeled vehicles such as electric bicycles and bicycles.
Equipment Operating Principle:
During testing, the front brake must be actuated before the rear brake. The equipment can automatically identify the braking sequence of the front and rear brakes and measure the distance traveled by the vehicle within the time interval between their actions, in order to determine the validity of the test.When the test is judged to be valid, the initial actuation positions of the front and rear brakes are clearly marked on the ground with two distinct point markers.According to user selection, the system can also automatically prompt the user to apply the brakes when the preset speed is reached, automatically control the water spray volume, and automatically measure the braking distance after braking.
Equipment Features:
1.The system adopts a high-performance microcontroller and an embedded operating system.
2.Intelligent design ensures easy and convenient operation.
3.The instrument is equipped with an LCD display, capable of showing multiple test parameters clearly and intuitively.
4.The overall design follows ergonomic principles, making it simple to use and easy to operate; the device features high quality, a portable design, and a compact structure.
5.The external sensor is fitted with a strong magnet for easy installation and is well suited for testing applications.
Product Parameters:

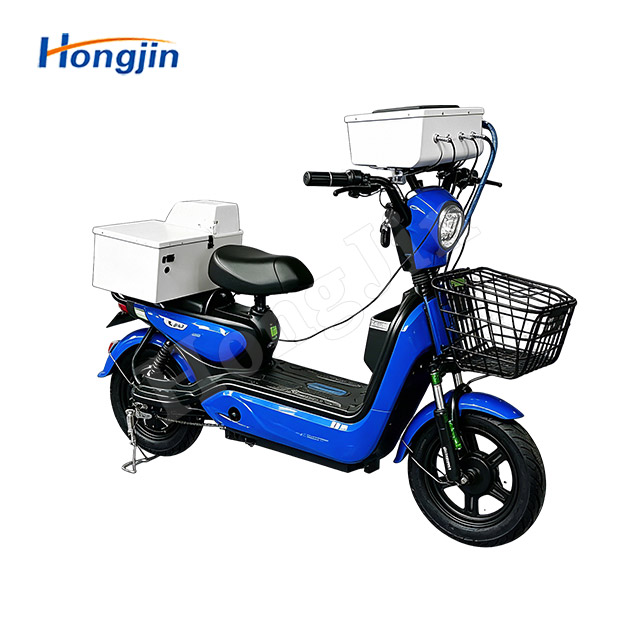

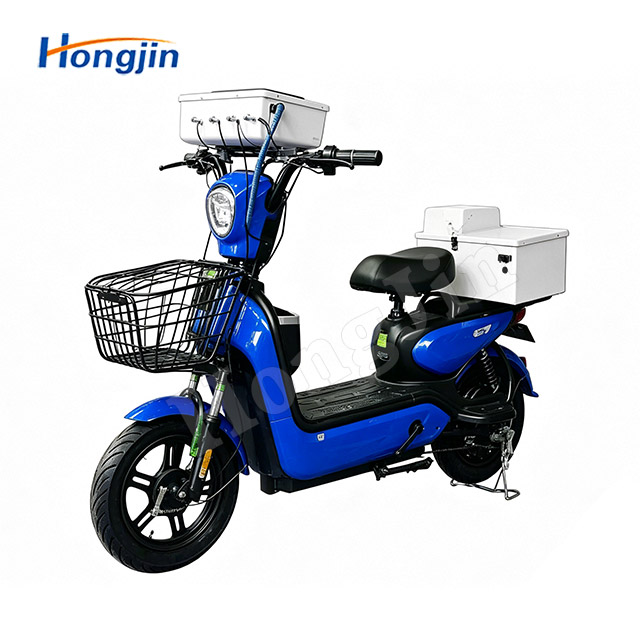

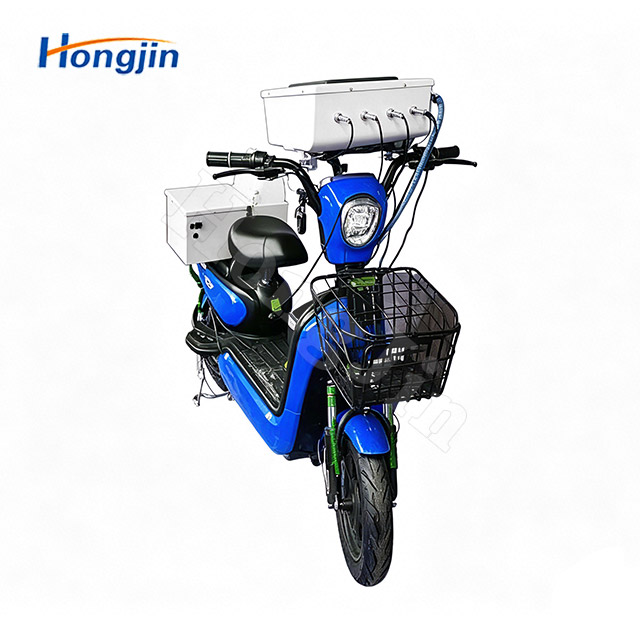

Actual Product Photos:
Company Profile:
