HONGJIN
Application Scope:

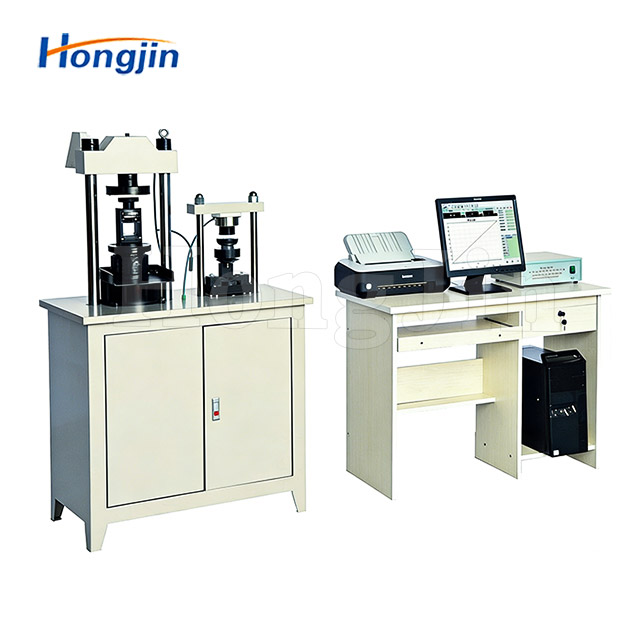

The digital display hydraulic compression testing machine is mainly used for testing the compressive strength of materials. Its application covers a wide range of metallic and non-metallic materials and is widely used in industries such as manufacturing, construction, and scientific research. For example: cement, concrete, various construction bricks, rubber pads, concrete components, and metal components.
Product Features:
1.Strength Test: Measures the maximum compressive strength and displacement of the box.
2.Constant-Value Test: Evaluates the overall performance of the box based on preset load or displacement values.
3.Stacking Test: Performs stacking tests under different durations, conditions, and load values in accordance with national or international standards.
4.Automatic Calibration: The system automatically calibrates indication accuracy.
5.Automatic Range Switching: Automatically switches to the appropriate load range according to the applied force to ensure measurement accuracy.
6.Automatic Display: Real-time display of test force, displacement, and deformation throughout the entire test process.
7.Automatic Control: Once test parameters are set, the system completes the test automatically.
8.Test Judgment: The moving crosshead stops automatically once the test requirements are met.
9.Limit Protection: Equipped with dual protection—mechanical limits and programmable (software) limits.
10.Test Report: Capable of printing simplified test data reports.
11.Manual Calculation: Some test data require manual recording of test results and process data.

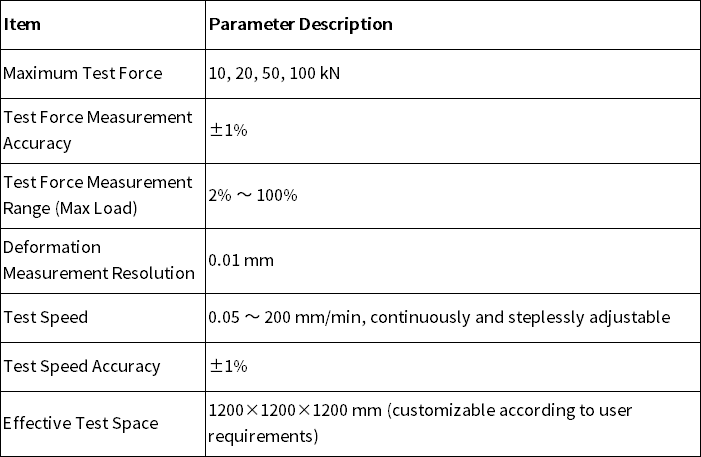

Product Parameters:

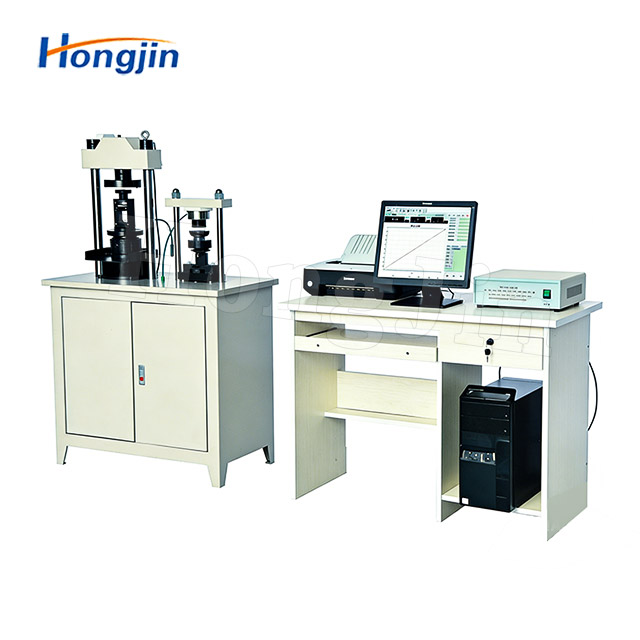

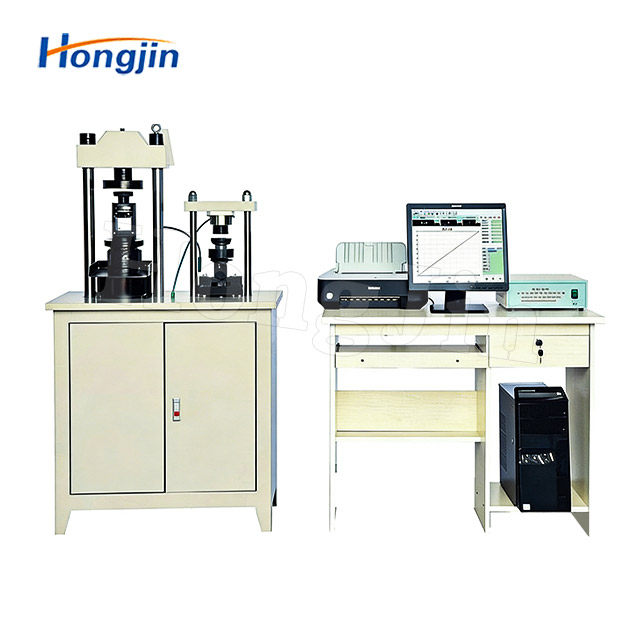

Actual Product Photos:
Company Profile:
