Scope of Application:
This machine is mainly used for testing the mechanical properties of metals, non-metals, and composite materials, including tensile, compression, bending, shear, tear, peel, crush, and flexural tests. It is capable of evaluating properties such as tensile strength, elongation, yield strength, and cold bending performance.
Product Features:
1.Automatic Stop: The moving crosshead stops automatically when the specimen fractures.
2.Automatic Range Switching: The system automatically switches to the appropriate load range according to the applied load, ensuring accurate measurement results.
3.Test Condition Storage: Test control data and specimen conditions can be stored as modules, facilitating batch testing.
4.Automatic Speed Control: During testing, the crosshead speed can change automatically according to a preset program, or be adjusted manually.
5.Automatic Calibration: The system automatically performs calibration to ensure indication accuracy.
6.Automatic Data Saving: Upon completion of the test, test data and curves are saved automatically.
7.Computer-Controlled Operation: The entire test process, including control, measurement, display, and analysis, is performed by a computer.
8.Batch Testing: For specimens with identical parameters, tests can be completed sequentially after a single setup.
9.Display Mode: Data and curves are displayed dynamically in real time during the test.
10.Curve Review: After the test, curves can be reanalyzed; any point on a curve can be selected with a mouse to view the corresponding test data.
11.Curve Selection: Stress–strain, force–displacement, force–time, and displacement–time curves can be selected for display and printing as required.
12.Test Reports: Test reports can be generated and printed in user-defined formats.
13.Limit Protection: Equipped with dual-level limit protection, including programmable and mechanical limits.
14.Overload Protection: The machine stops automatically when the load exceeds 3–5% of the maximum capacity of each range.
15.Automatic and Manual Result Calculation: Test results can be calculated in both automatic and manual modes, with reports generated automatically to simplify data analysis.

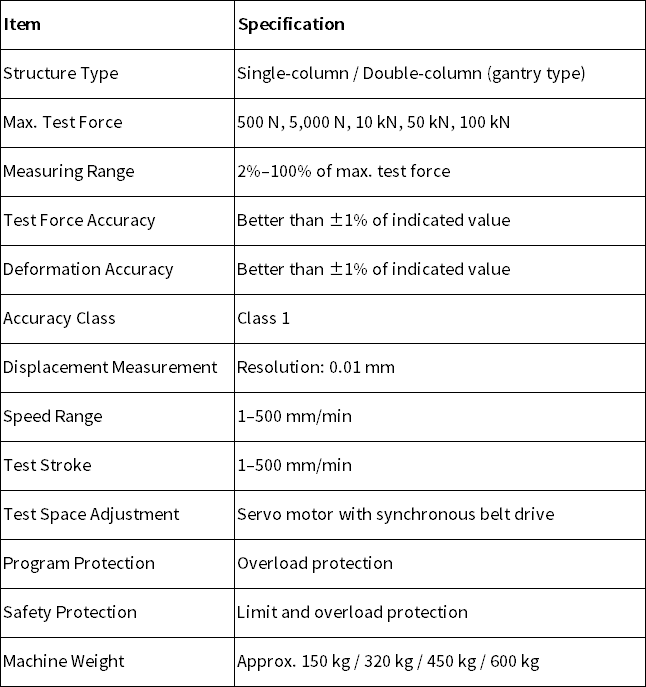

Product Parameters:

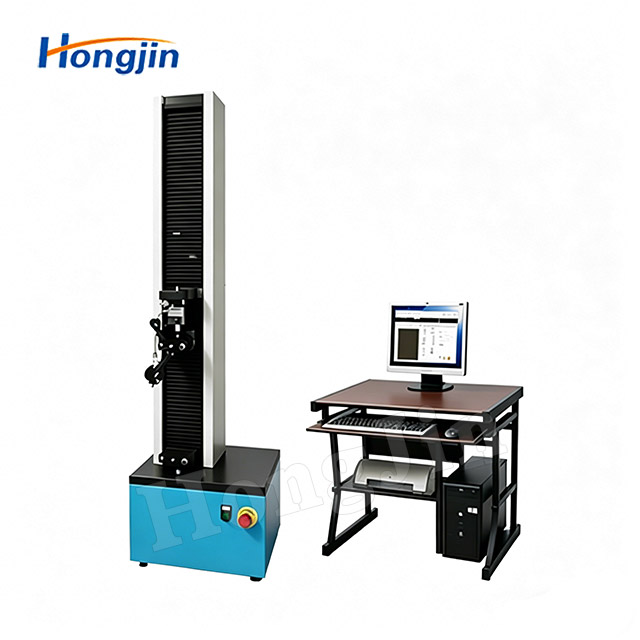

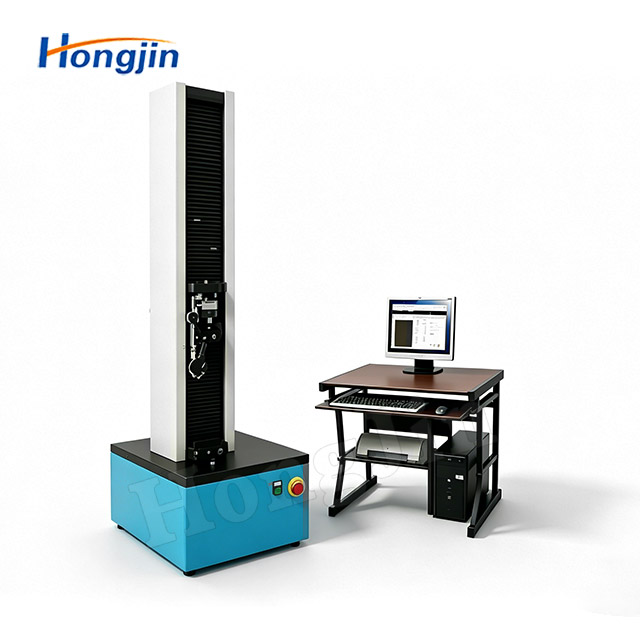

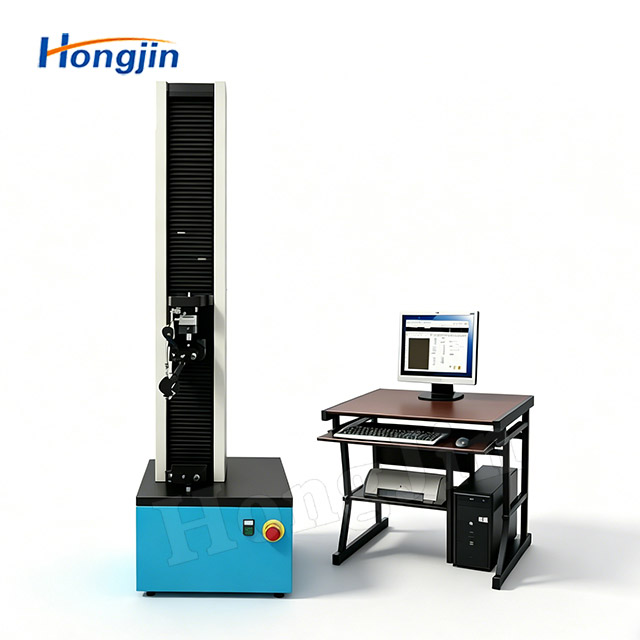

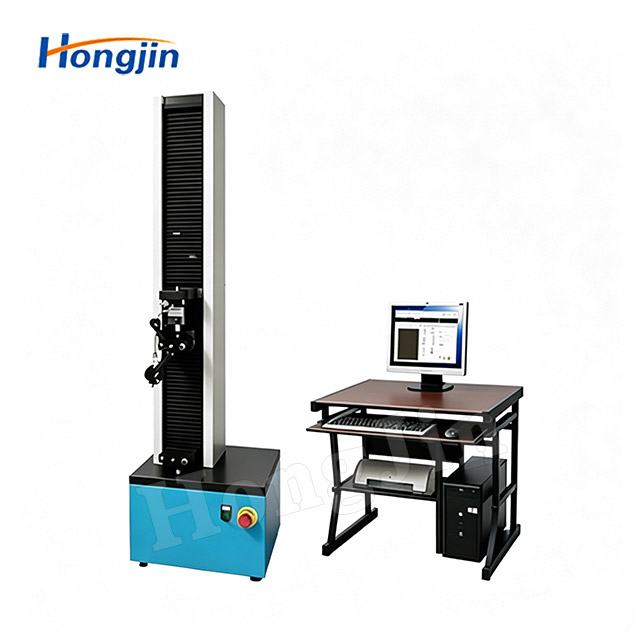

Actual Product Photos:
