Application Scope：

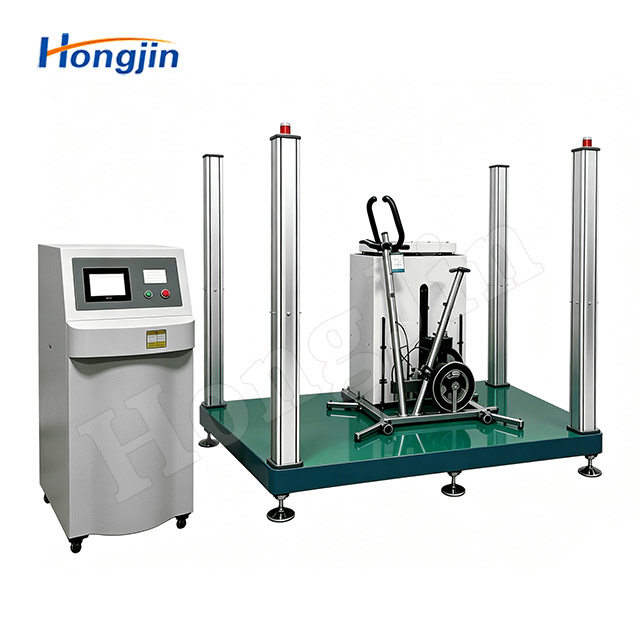

This testing machine is designed in accordance with EN 957, ASTM F1250, and ISO 20957 standards.It is suitable for fatigue testing of components and complete indoor and outdoor fitness equipment.The test method uses a servo motor to drive the transmission system of fitness equipment (e.g. exercise bikes) to perform fatigue testing under specified conditions.
Product Features：
1.Designed for fatigue testing.
2.Test cycles: 0–999,999 cycles, freely programmable.
3.Test speed: 0–100 RPM, stepless speed regulation via frequency inverter, with automatic forward and reverse rotation.
4.PLC automatic control with touch-screen interface, allowing real-time monitoring of force values and speed, as well as detection of operating time and accumulated cycles. All operations can be performed intuitively via the touch screen. Dedicated control software enables multi-channel closed-loop control, fully automatic test execution, and automatic measurement.
5.The number of test cycles can be preset; upon completion, the equipment automatically stops and provides an alarm indication.
6.Equipped with power-off / outage memory and breakpoint detection with automatic stop. In the event of a sudden power failure, the system automatically saves test data and resumes operation according to the parameters set before power loss once power is restored, without the need for manual reset.
7.Stop modes: automatic stop upon reaching the preset number of cycles, or automatic stop with alarm when specimen damage or excessive deformation is detected.
8.Features a self-diagnostic fault detection system that automatically diagnoses faults and displays error codes, facilitating rapid inspection, maintenance, and troubleshooting.
9.Supplied with various fixtures and accessories required for testing.

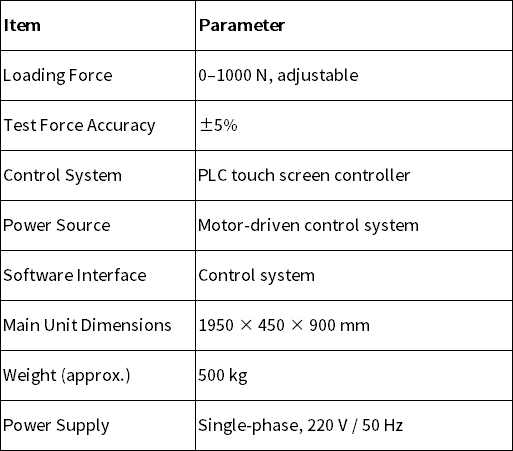

Product Parameters:

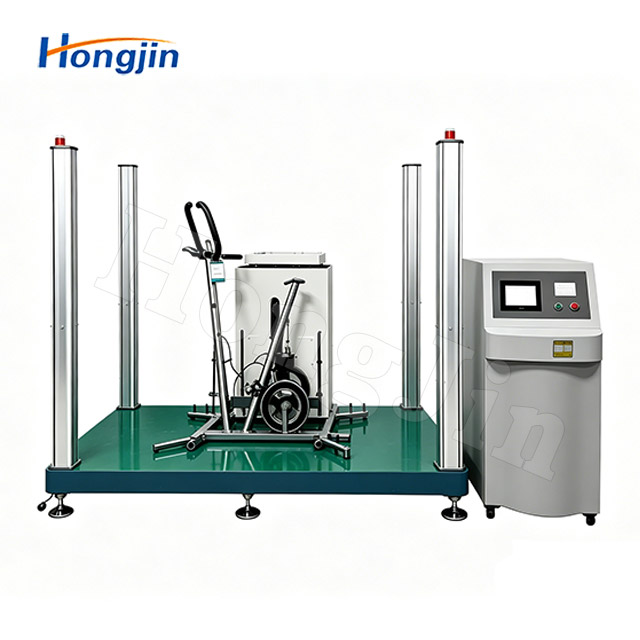

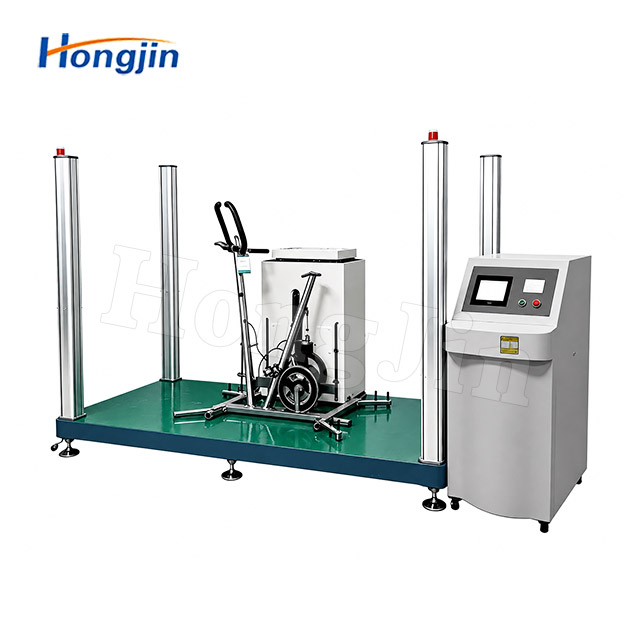

Actual Product Photos:
