HONGJIN
Application Range:

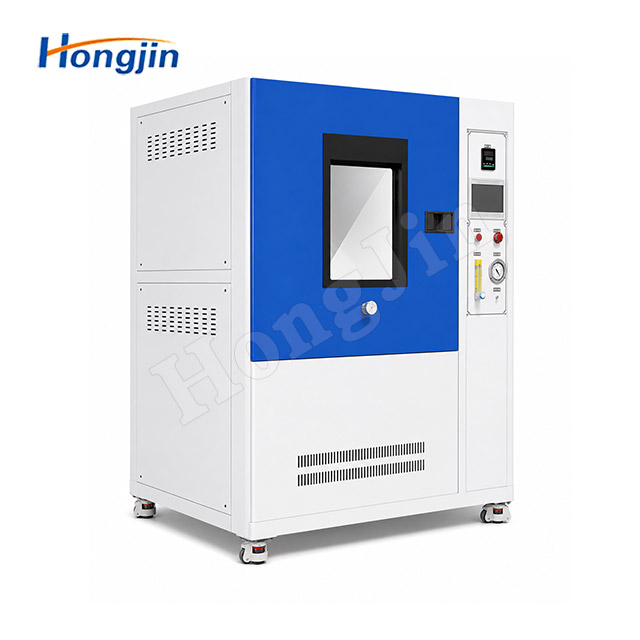

The JIS Rain Test Chamber is used to test products for IPX5 and IPX6 waterproof ratings. Test samples include electronic components, outdoor lighting, phone cases, automotive parts, and more. The chamber features a box-type structure with no space limitations, supports water circulation, comes with a brand-new operating system, and allows remote operation for convenient and efficient testing.
Product Introduction:
Natural water (rain, seawater, river water, etc.) can damage products and materials, causing significant and often unpredictable economic losses each year. The main types of damage include corrosion, fading, deformation, reduced strength, swelling, mold, and more. Electrical products, in particular, are highly susceptible to short circuits caused by rainwater, which can easily lead to fires. Therefore, conducting waterproof enclosure tests for specific products or materials is an essential procedure.Application Fields: Outdoor lighting, household appliances, automotive parts, and other electronic and electrical products.
Product Features:
1. Suitable for R1/R2/S1/S2 spray tests according to JIS D0203.
2. The cabinet and sample turntable are made of SUS304# stainless steel to ensure long-term rust-free use.
3. Equipped with a built-in water tank; water level is automatically controlled by a float valve, with low-water protection to prevent dry-running damage to the pump.
4. Electrical components of the turntable are fully sealed to prevent water ingress and electric leakage.
5. Turntable drive: high-quality stepper motor, speed and angle adjustable via touch screen (stepless adjustment within standard range), with automatic forward/reverse rotation control.
6. Water pressure of the branded rotating pipe can be set on the touch screen.
7. Rotating pipe drive uses a high-quality stepper motor; pipe oscillation speed and angle are adjustable directly on the touch screen. Standard Japanese rotating pipe speed can be controlled at 23 revolutions/min.
8. R1, R2, S1, S2 can operate individually or simultaneously.

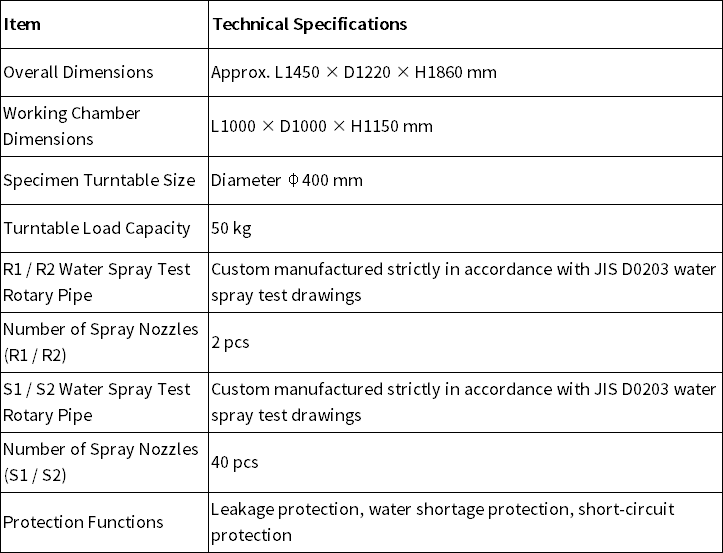

Product Parameters:

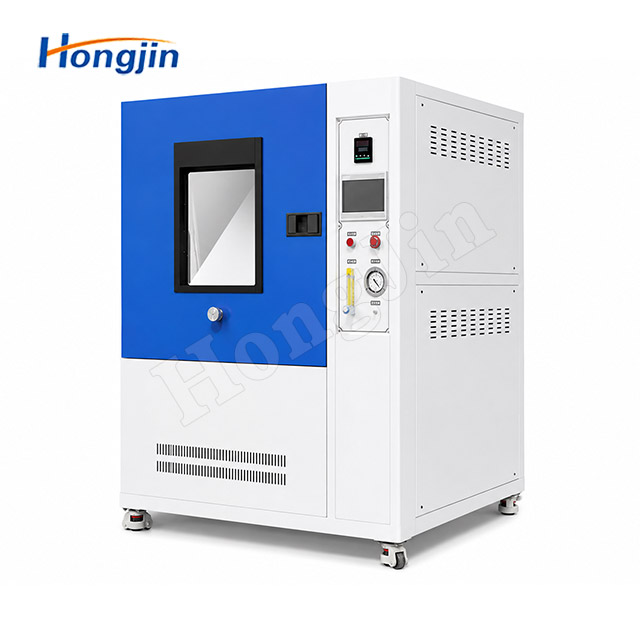

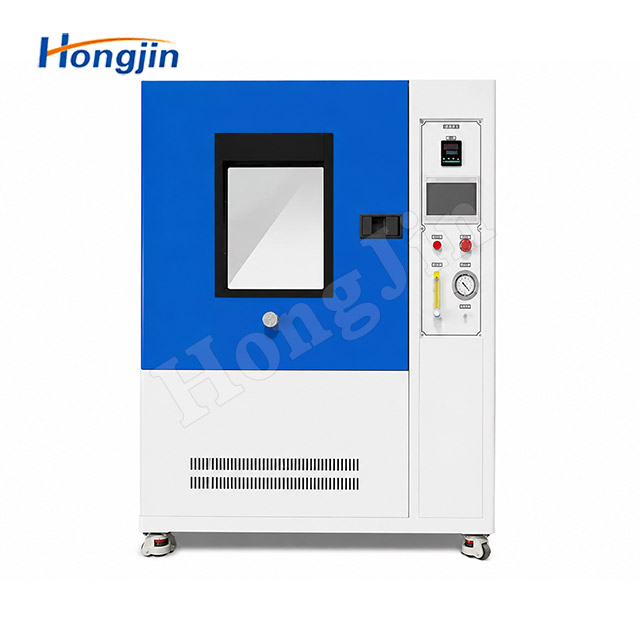

Actual Product Photos:
