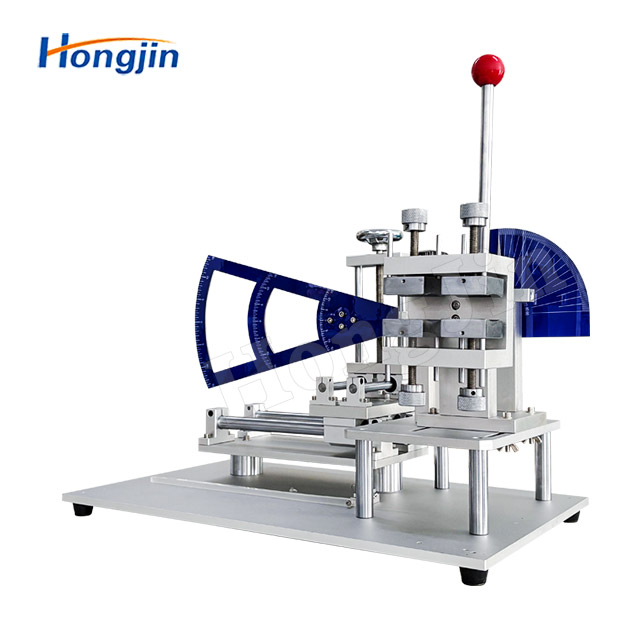

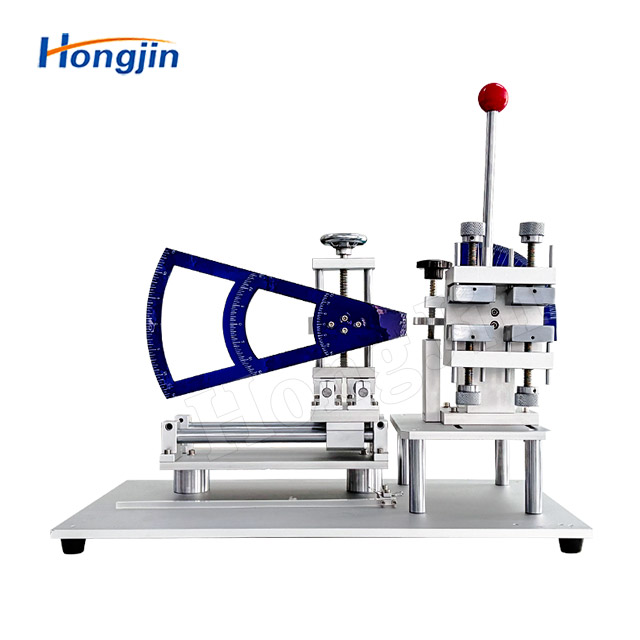

Knife Bending Resistance Tester

Scope of Application:

The knife bending resistance tester is mainly used for testing the bending resistance of various cutting tools and kitchen utensils. It is suitable for testing the following types of products:Cutting tools: including turning tools, hole-machining tools, milling cutters, broaches, threading tools, gear cutting tools, tools for automatic lines and CNC machine tools, and reamers.Kitchen utensils: such as table spoons, dinner forks, table forks, dessert knives, dinner knives, table knives, and similar utensils.

Product Features (English Translation)：

1.The left and right graduated scales feature zero adjustment and measurement functions; blade bending is clearly indicated by the pointer for easy observation.

2.Transparent, detachable acrylic safety guard prevents personal injury caused by blade breakage during testing.

3.Maximum specimen size of 400 mm, meeting the testing requirements of various samples.

4.Weights and test dimensions can be customized according to specific user testing requirements.

Test Principle (English Translation):

Install the specimen in position without applying any weights, and adjust the left and right pointers to the zero scale. Then apply a specified weight to the blade. Manually operate the lever to rotate the central shaft until the end clamp is lifted off the track, and maintain this position for 10 seconds. After that, return the lever to its original position and remove the load. Read the angular deviation from the left scale. Next, turn the specimen over and repeat the test once more. Observe the condition of the specimen after the two tests. If a permanent deformation of 3° occurs, the sample is deemed unqualified.

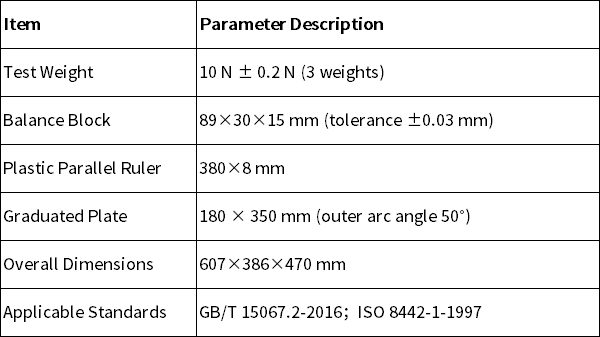

Product Parameters:

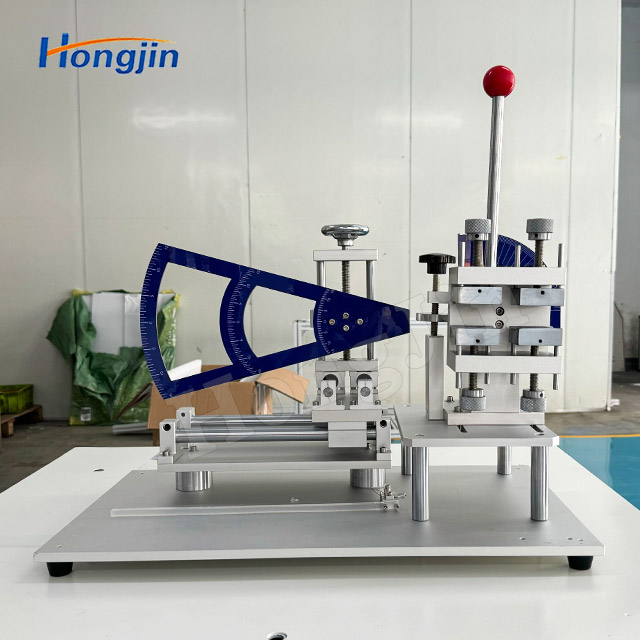

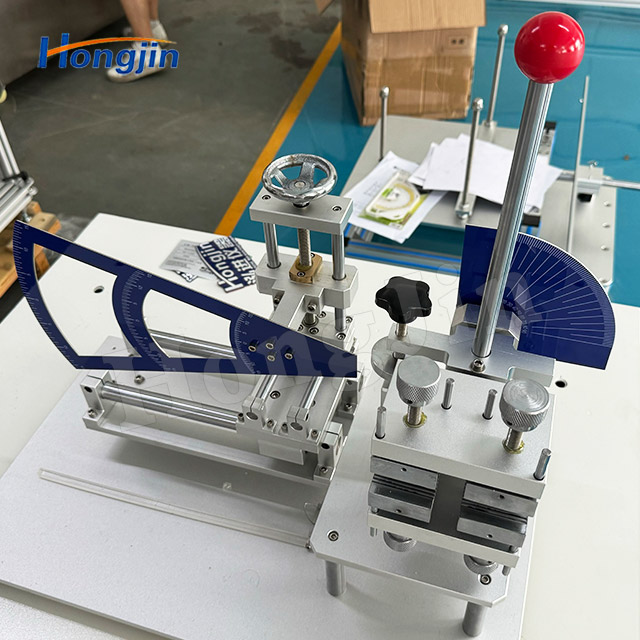

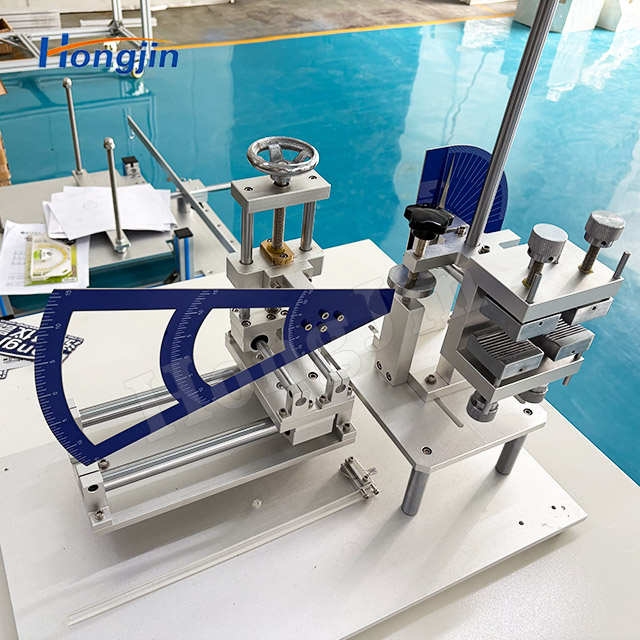

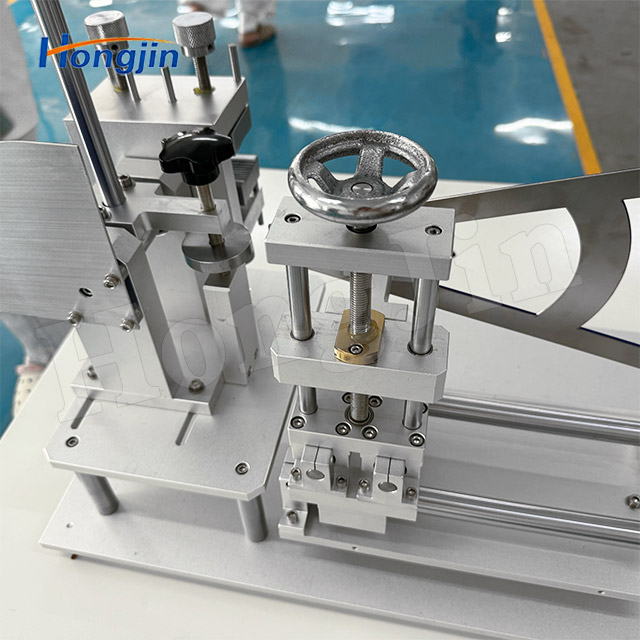

Actual Product Photos:
