Application Scope:
The liquid-type thermal shock test chamber uses a color touch LCD microcomputer temperature controller to create rapid and severe temperature changes. Under such high- and low-temperature shock conditions, it observes the changes occurring in the tested products. It is mainly used to evaluate the physical and chemical changes of various materials and composite materials—such as rubber, plastics, electronic and electrical products, automotive components, metals, etc.—when subjected to continuous thermal shock environments at extremely high and extremely low temperatures.The chamber adopts a vertical three-chamber structure and is equipped with an emergency stop device. It complies with MTL, IEC, JIS, GJB, and other relevant standards.
Complied Standards:
1.GB/T 2423.1-2001 — Low Temperature Test Method
2.GB/T 2423.2-2001 — High Temperature Test Method
3.GB/T 2423.22-1989 — Temperature Change Test, Method N
4.GJB 150.3-86 — High Temperature Test (Military Standard)
5.GJB 150.4-86 — Low Temperature Test (Military Standard)
6.GJB 150.5-86 — Temperature Shock Test (Military Standard)
7.GJB 150.5-86 — Temperature Shock Test
8.GJB 360.7-87 — Temperature Shock Test
9.GJB 367.2-87 405 — Temperature Shock Test
10.SJ/T 10187-91 — Y73 Series Temperature Change Test Chamber: Single-Chamber Type
11.SJ/T 10186-91 — Y73 Series Temperature Change Test Chamber: Two-Chamber Type
12.IEC 68-2-14 — Test Method N: Temperature Change
13.GB/T 2424.13-2002 — Guide for Temperature Change Test Methods
14.GB/T 2423.22-2002 — Temperature Change Test
15.QC/T 17-92 — General Rules for Weather Resistance Testing of Automotive Parts
16.EIA-364-32 — Thermal Shock (Temperature Cycling) Test Procedure for Electrical Connectors and Sockets

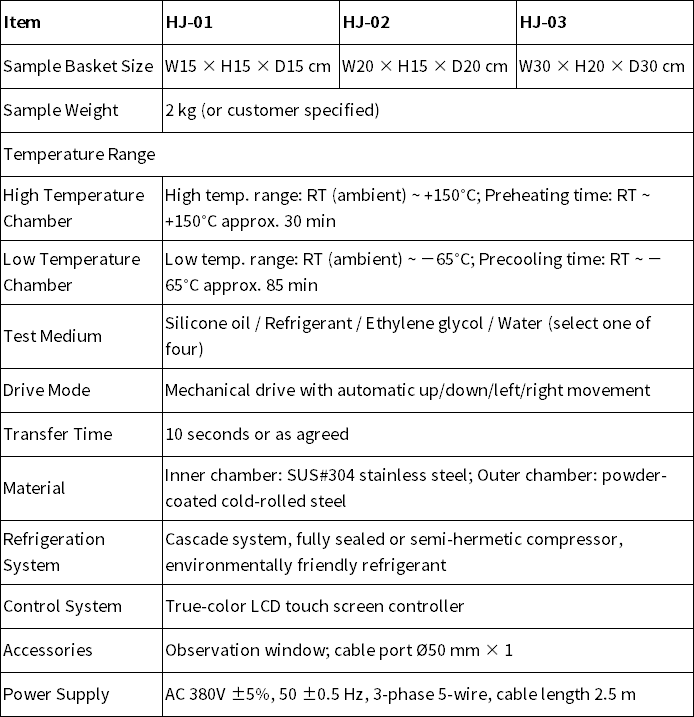

Product Parameters:

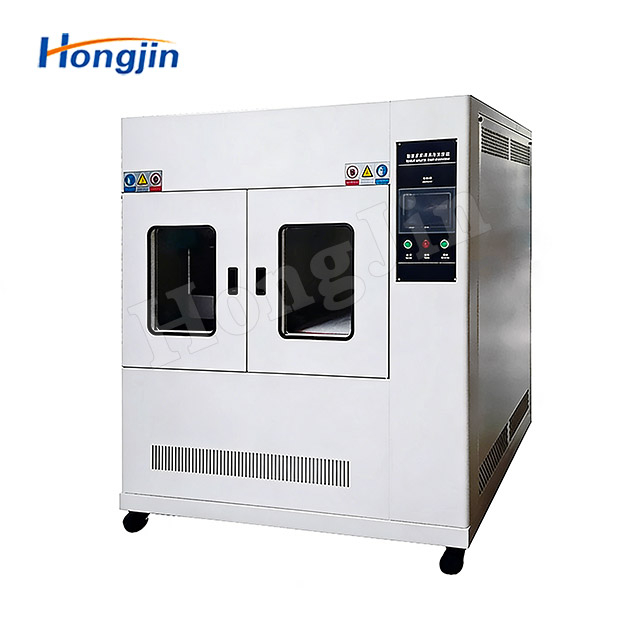

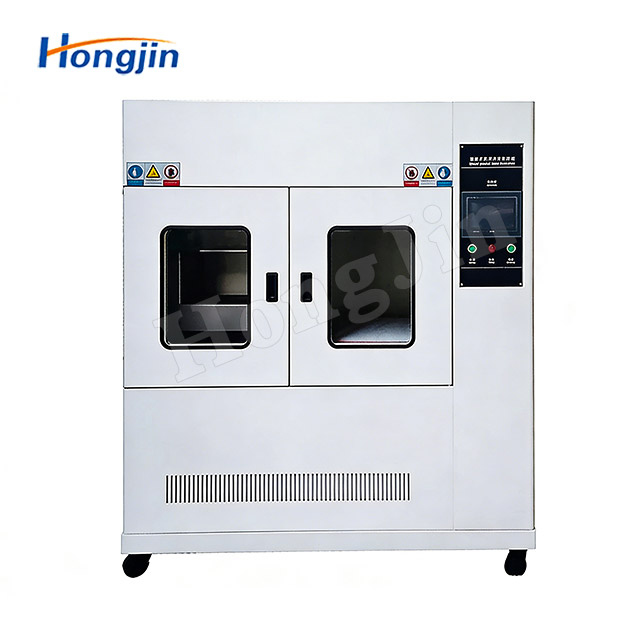

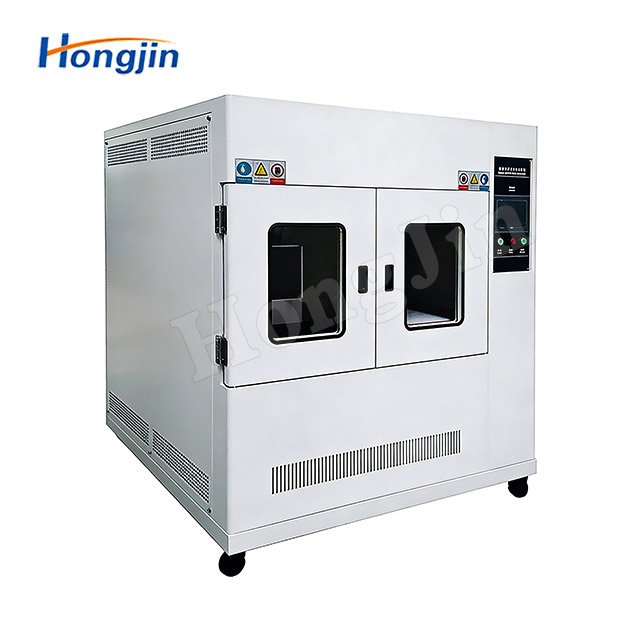

Actual Product Photos:
