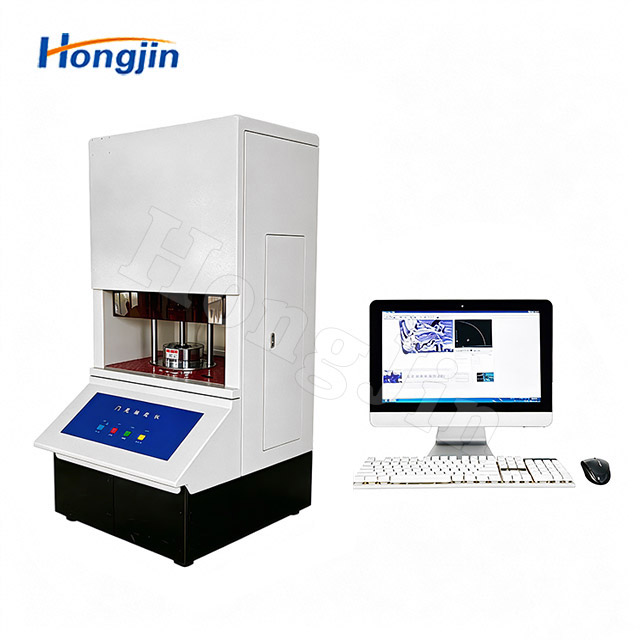

Mooney Viscometer

Application Scope：

This instrument complies with GB/T 1232 “Determination of Mooney Viscosity of Unvulcanized Rubber”, GB/T 1233 “Determination of Early Vulcanization Characteristics of Rubber Compounds — Mooney Viscometer Method”, as well as ISO 289 and ISO 667 standards.It is used for measuring the viscosity, scorch characteristics, and vulcanization index of raw rubber and compounded rubber.The instrument features microcomputer control, digital data display, and automatic calibration, making it an ideal testing device for the rubber industry and scientific research institutions.An imported intelligent digital temperature controller is adopted, offering easy parameter setting, wide temperature control range, and high temperature stability. The microcomputer uses imported chips with high reliability, enabling automatic data plotting, calculation, and report printing.

Main Functions of Rubber Mooney Viscometer Control Software：

1.Operating Software: Multilingual Software Support.

2.Unit Selection: kgf·cm, lbf·in, N·m, dN·m, MV.

3.Testable Data: Includes Mooney viscosity and various scorch-related parameters.

4.Test Curves:Mooney viscosity curve;Mooney scorch curve;Upper and lower die temperature curves.

5.Time Adjustment: Test time can be modified during the test process.

6.Data Storage: Test data can be automatically saved.

7.Report Display: Multiple sets of test data and curves can be displayed on one report page, and users can select any point on the curve with the mouse to read corresponding values.

8.Data Comparison: Historical data can be combined for comparative analysis and printed.

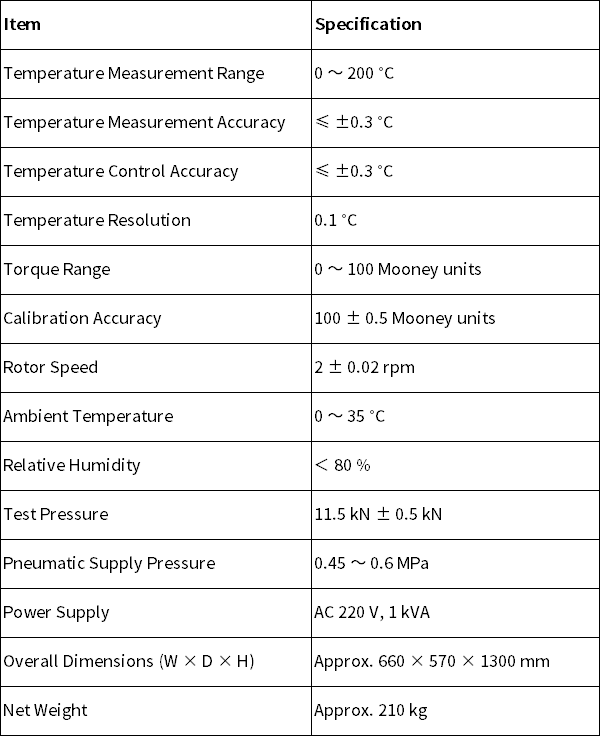

Product Parameters:

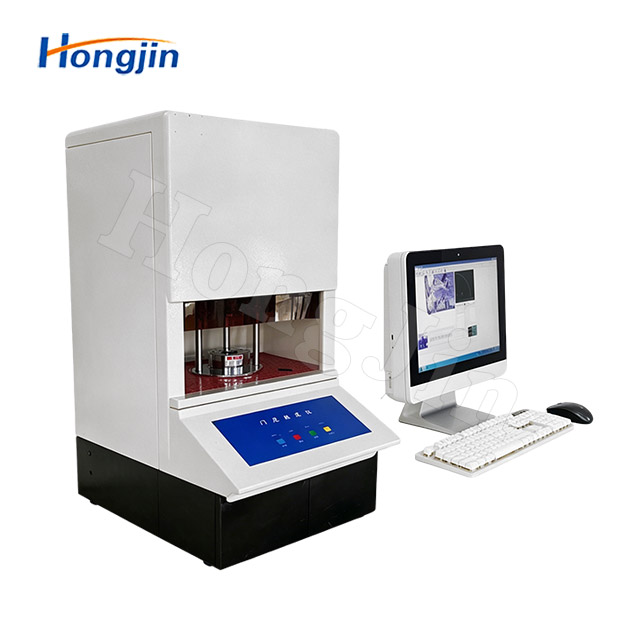

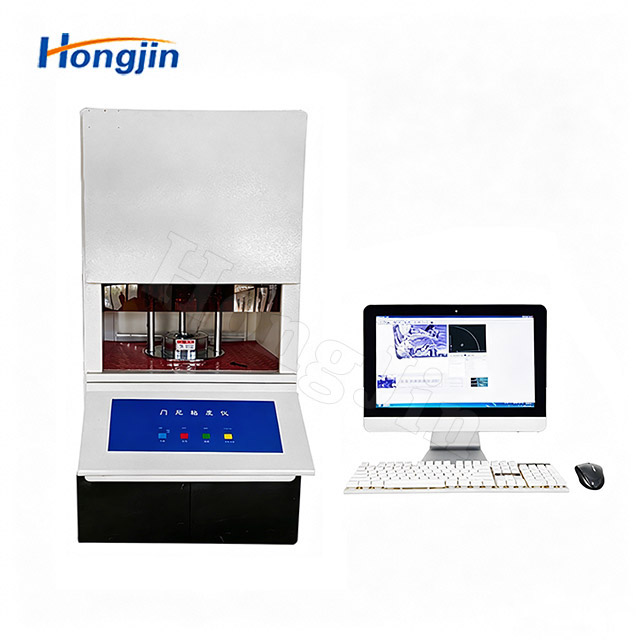

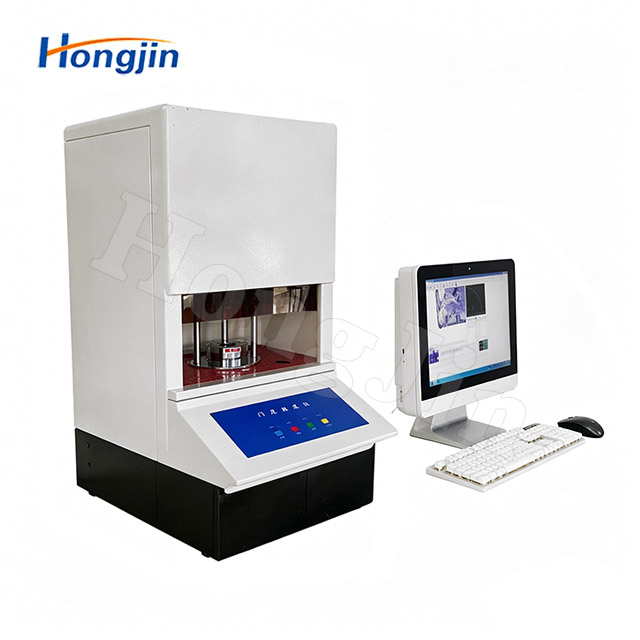

Actual Product Photos:
