Scope of Application:
The pulse testing machine is primarily used for pressure fatigue testing of products. It is used for pulse testing of automotive hoses such as steering hoses, brake hoses, air conditioning hoses, fuel hoses, cooling water hoses, radiator hoses, heating hoses, air filter hoses, turbocharger hoses, booster system hoses, hydraulic hoses, aviation hoses and assemblies, as well as other hard pipes or fittings, heat exchangers, air conditioners, filters, and more.

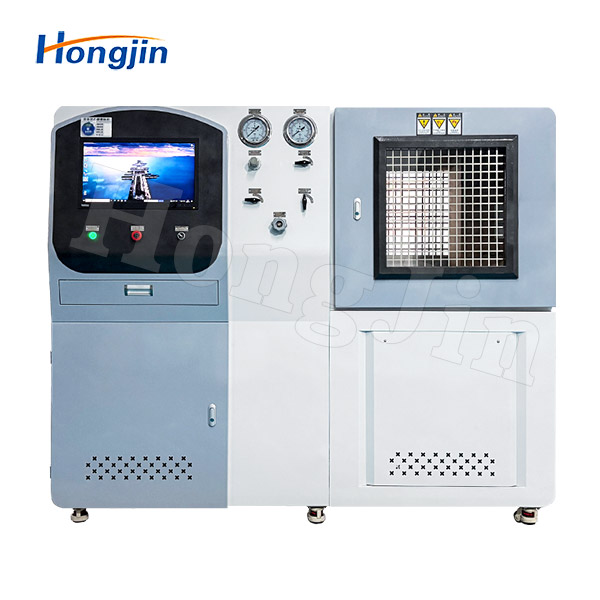

Product Overview:
This testing equipment is primarily used for pressure testing of products such as valves, containers, and pipe fittings. As the main equipment for pressure testing, this test bench plays a crucial role in ensuring product quality and improving reliability. It can control test water pressure, time, and other parameters. The system is capable of automatically handling abnormal situations, and after the test is completed, it can print a test report.
The entire control system uses an industrial control computer, a secondary control instrument system, and a sensor switch control mode. It performs closed-loop monitoring for all switch signals and uses logical relationships to ensure the safety and reliability of the system. The system can record faults and automatically lock out faulty systems, ensuring the safety of tests even without on-site personnel.
Product Features:
1.Pressure Alternating Waveform: Basic square wave (square wave, trapezoidal wave), pulse width can be adjusted according to the customer's requirements.
2.Test Medium Temperature: Ambient temperature 65°C (customizable based on customer requirements).
3.Tested Item: One item can be tested at a time (customizable based on customer requirements).
4.Advanced Technology: The equipment features advanced technology, a reasonable structural design, and an aesthetically pleasing appearance.
5.High-Quality Components: All pressure-bearing parts use well-known brand standard components, with no welded connections. The design is easy to disassemble, highly safe, durable, and easy to maintain.
6.Computer-Controlled Pressure: The pressure can be controlled by a computer, with real-time pressure curves displayed. After testing, a test report can be printed.
7.Proportional Control Technology: Pressure can be precisely controlled using proportional control technology.
8.Handling of Abnormal Situations: It can handle various abnormal situations, including temperature, pressure, and electrical anomalies.
9.Leakage Medium Recovery: The leakage medium is automatically recovered after the tested pipe is removed.
10.Computer Data Collection and Processing: The system collects and processes data, and can print environmental temperature, pressure cycling times, and pressure alternating waveforms.
11.Test Cycle Settings: The number of cycles can be freely set during the test, and the test will automatically stop once the requirements are met.

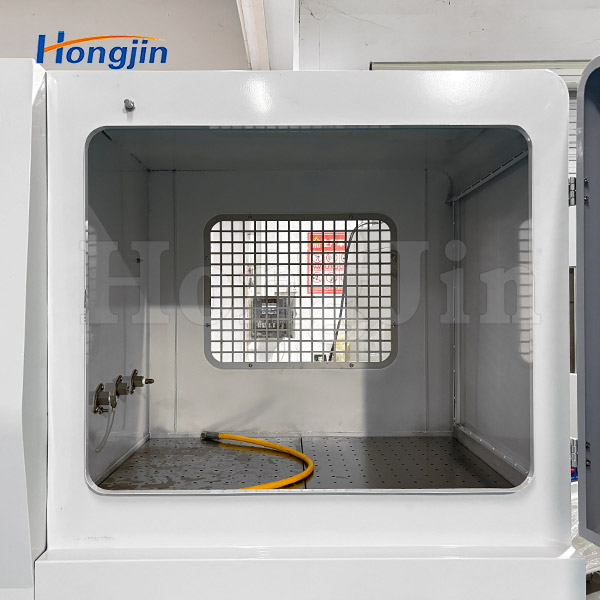

12.Observation Window: The test sample's condition can be observed from the outside, with protective devices installed on the observation window.
13.Pressure-Time Curve: The pressure-time curve is displayed on the screen and can be printed or stored in memory. Computer control allows for storage with a USB interface for printing the experimental pressure curve.
14.Pressure Sensor Calibration Interface: The test system has a calibration interface for pressure sensors.
15.Data Auto-Save: The system supports automatic data saving in case of a power outage.
16.Data Retrieval: Experimental data can be retrieved and queried based on experiment time, number of tests, and other parameters.

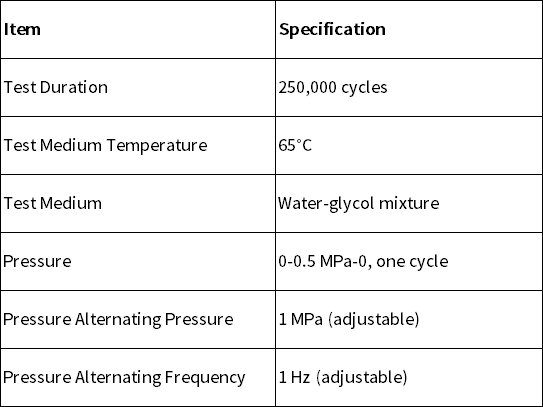

Product Parameters:

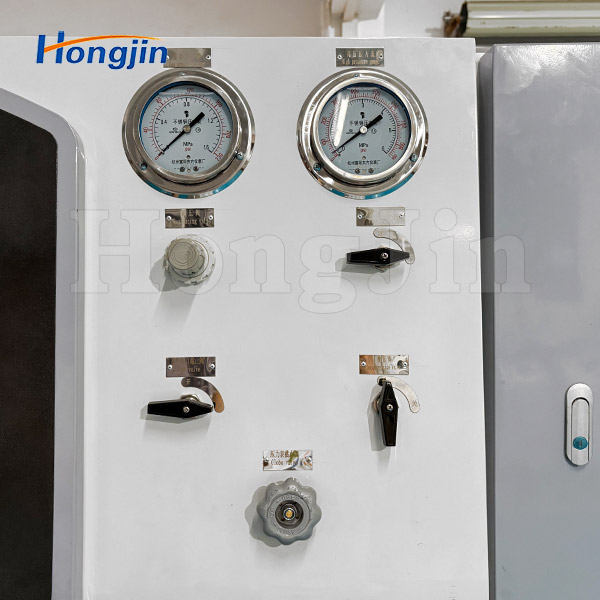

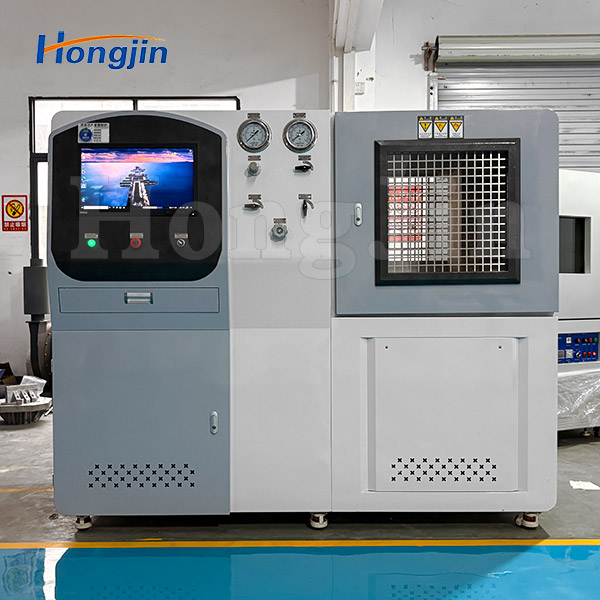

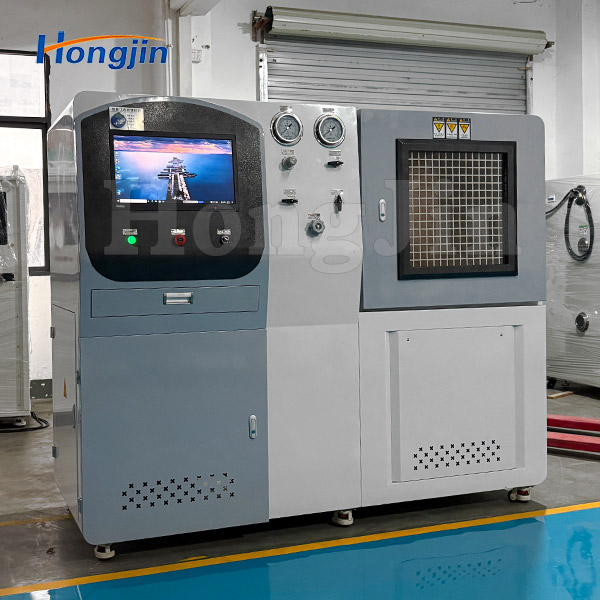

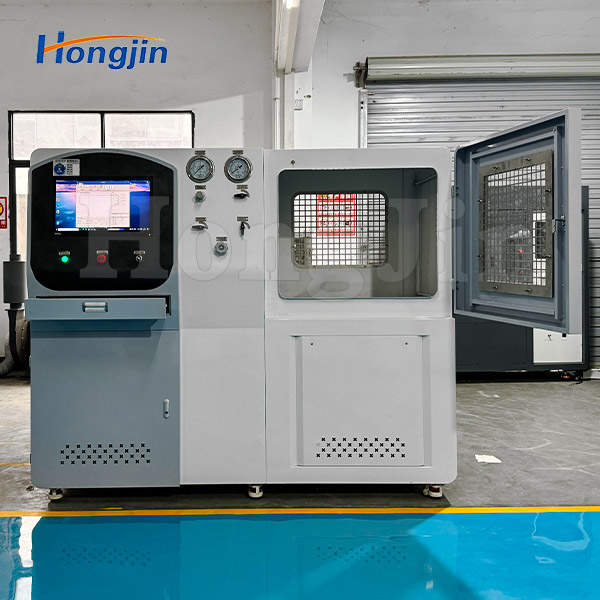

Actual Product Photos:
