HONGJIN
Application Scope:
The hydraulic fatigue testing machine is a fatigue testing system that utilizes an electro-hydraulic servo valve as an energy conversion and amplification device, converting the energy of high-pressure fluid into reciprocating motion of the actuator. It is mainly used for static and dynamic fatigue loading tests of various materials and electromechanical components.According to the actuator position, the system is classified into two types: bottom-mounted (HFS-D) and top-mounted (HFS-U). It provides highly accurate and repeatable dynamic testing for a wide range of materials (including metals and non-metals) and components, fully meeting the requirements of both static and dynamic testing.

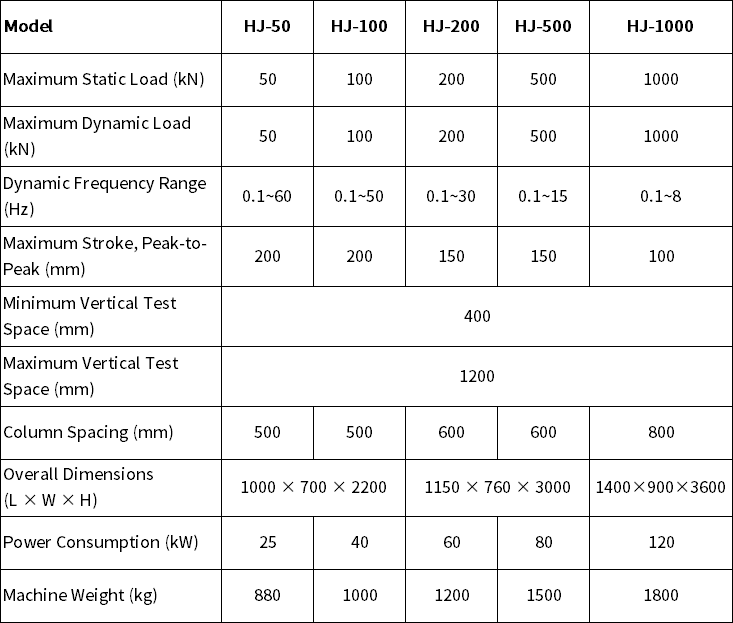

Product Parameters:

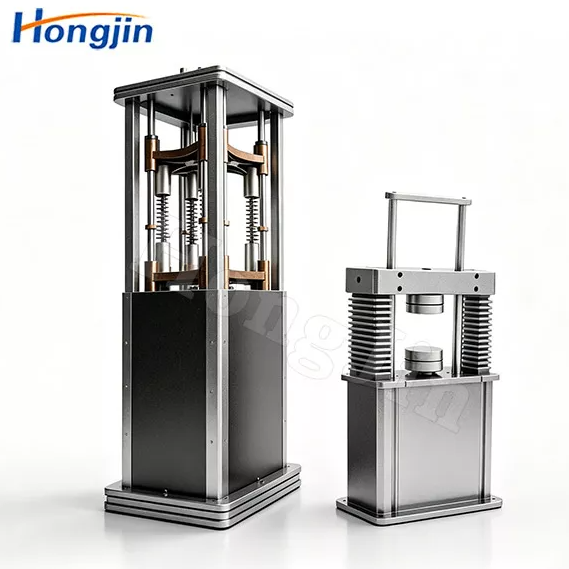

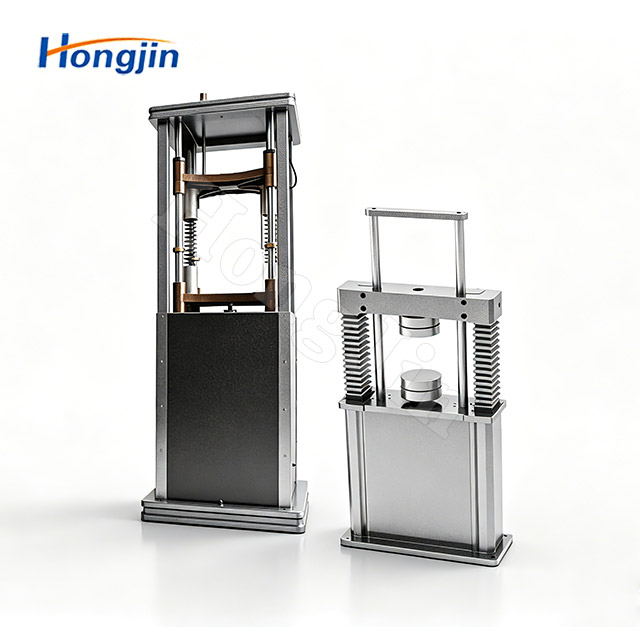

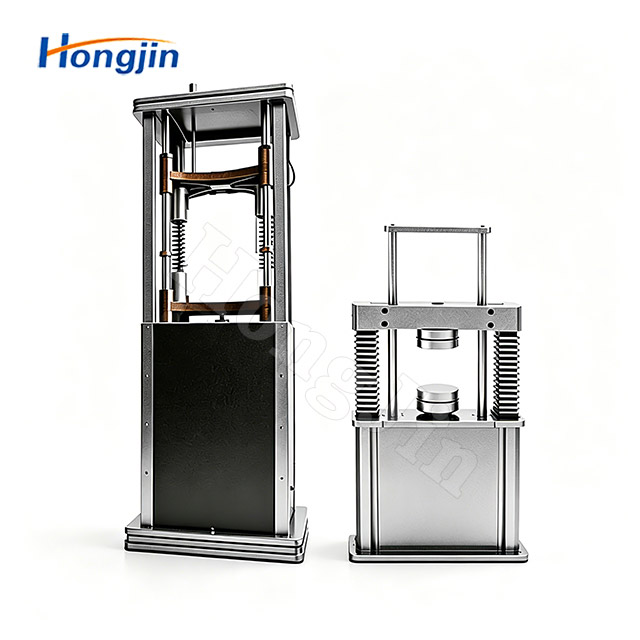

Actual Product Photos:

Company Profile:
