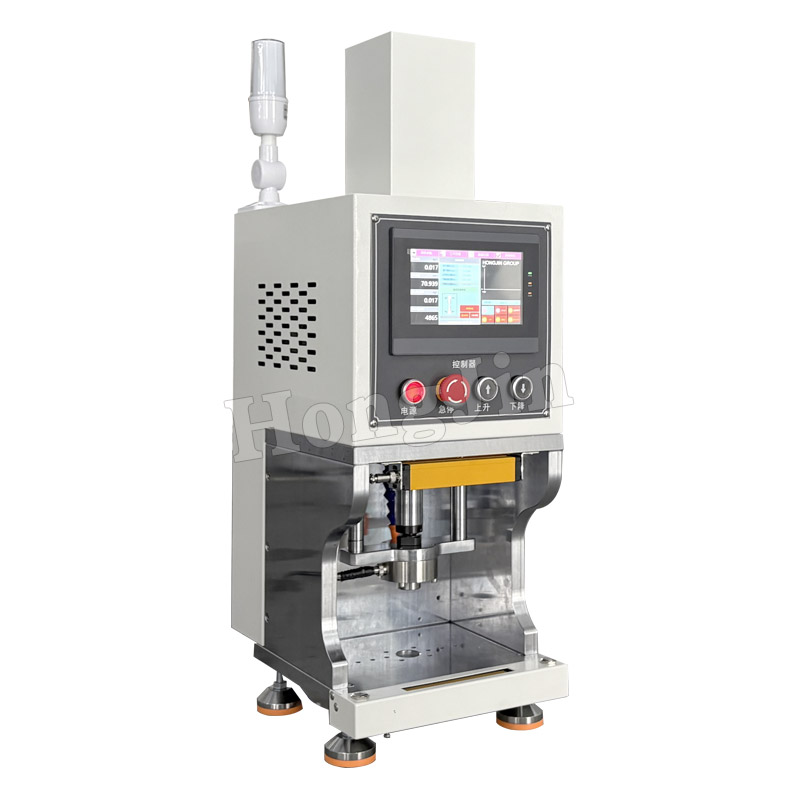

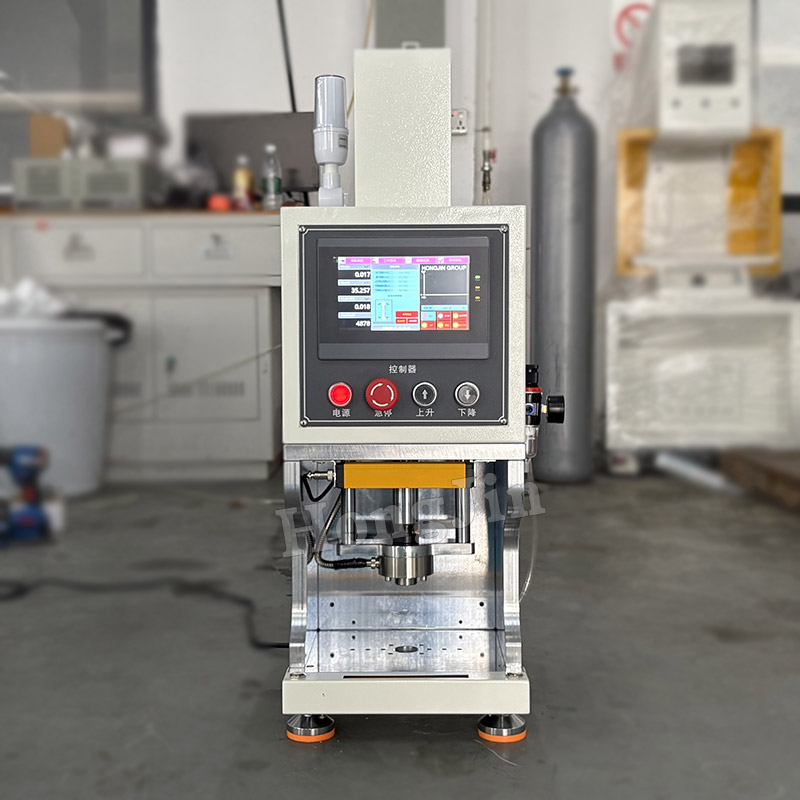

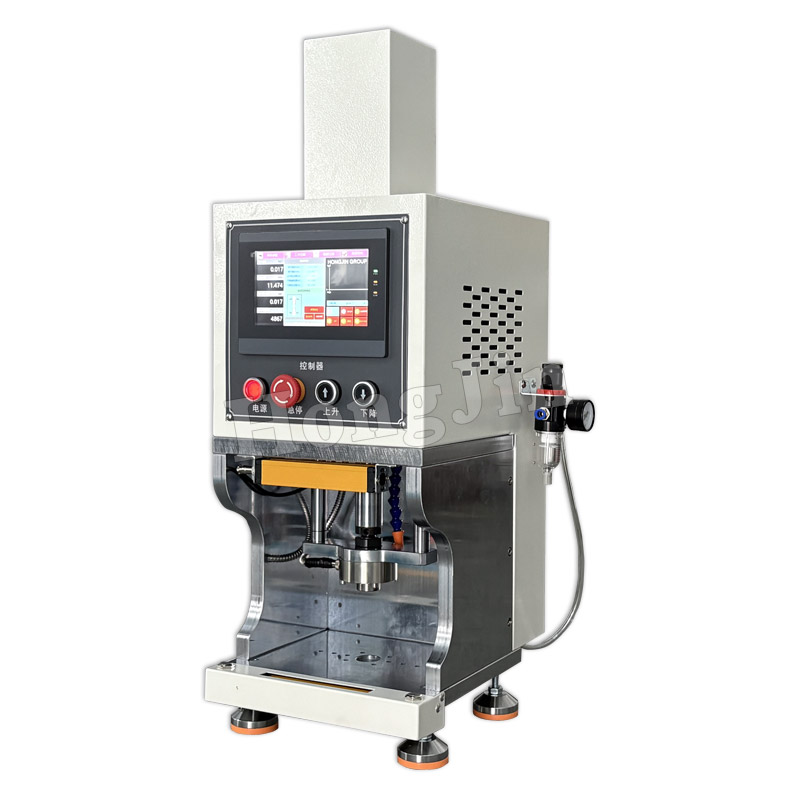

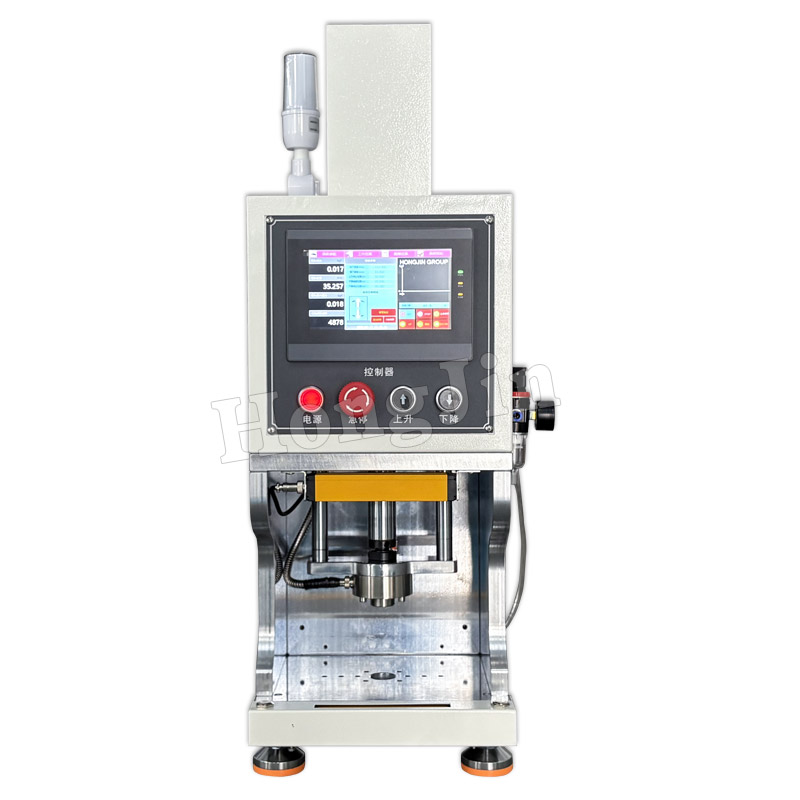

Tabletop Servo Press

5 0 Reviews

This desktop servo press is widely used in precision press-fitting, material testing, and automated production. Specifically, it is suitable for press-fitting precision components such as bearings, bushings, and gears. It supports five-speed precision press-fitting (rapid forward, probe, press-fit, hold, and return), with closed-loop press depth control. It can perform tensile, compression, bending, shear, peel, and tear tests, making it suitable for R&D and quality control testing of materials such as metals, rubber and plastics, leather, wire and cable, textiles, packaging, and paper.

Availability:

Quantity:



Inquire Add to Basket

Brand:
hongjin

Product Description

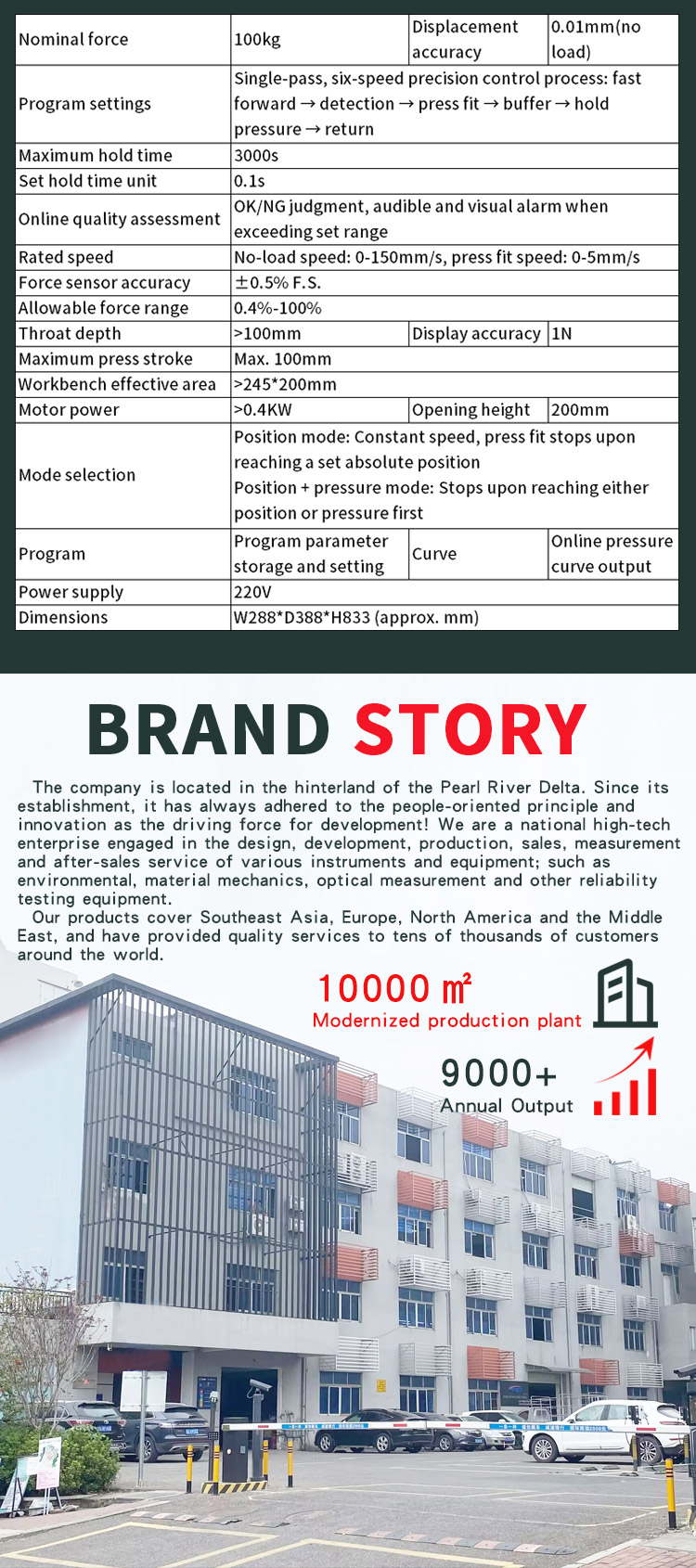

Nominal force	100kg	Displacement accuracy	0.01mm(no load)
Program settings	Single-pass, six-speed precision control process: fast forward → detection → press fit → buffer → hold pressure → return
Maximum hold time	3000s
Set hold time unit	0.1s
Online quality assessment	OK/NG judgment, audible and visual alarm when exceeding set range
Rated speed	No-load speed: 0-150mm/s, press fit speed: 0-5mm/s
Force sensor accuracy	±0.5% F.S.
Allowable force range	0.4%-100%
Throat depth	>100mm	Display accuracy	1N
Maximum press stroke	Max. 100mm
Workbench effective area	>245*200mm
Motor power	>0.4KW	Opening height	200mm
Mode selection	Position mode: Constant speed, press fit stops upon reaching a set absolute position Position + pressure mode: Stops upon reaching either position or pressure first
Program	Program parameter storage and setting	Curve	Online pressure curve output
Power supply	220V
Dimensions	W288D388H833 (approx. mm)
