Product Details:
This product uses compressed gas energy storage to provide impact energy, driving the impact hammer to strike the resonant plate and generate high-energy impacts. Compared with traditional pendulum-type shock response spectrum test machines, this instrument offers higher energy output, stable performance, high reliability, excellent repeatability, convenient adjustment, and safe, environmentally friendly operation. It is mainly applied in industries such as aerospace, aviation, and shipbuilding.
Product Features:
1.The system adopts a pneumatic energy storage drive to actuate the impact hammer, providing high driving force, fast response speed, and a reliable structure;
2.The impact driving energy can be conveniently adjusted by regulating the air pressure, ensuring easy operation and high efficiency;
3.A dedicated shock response spectrum base is used to raise the mounting position of the response plate, facilitating specimen installation and shim adjustment. In addition, the rigidity of the response plate mounting position is significantly improved, enabling it to be firmly fixed to the foundation and withstand higher impact loads;
4.Two-stage safety interlock switches are designed to fully ensure operator safety;
5.The operating software integrates shock response spectrum test machine control, impact data acquisition, and response spectrum analysis functions.

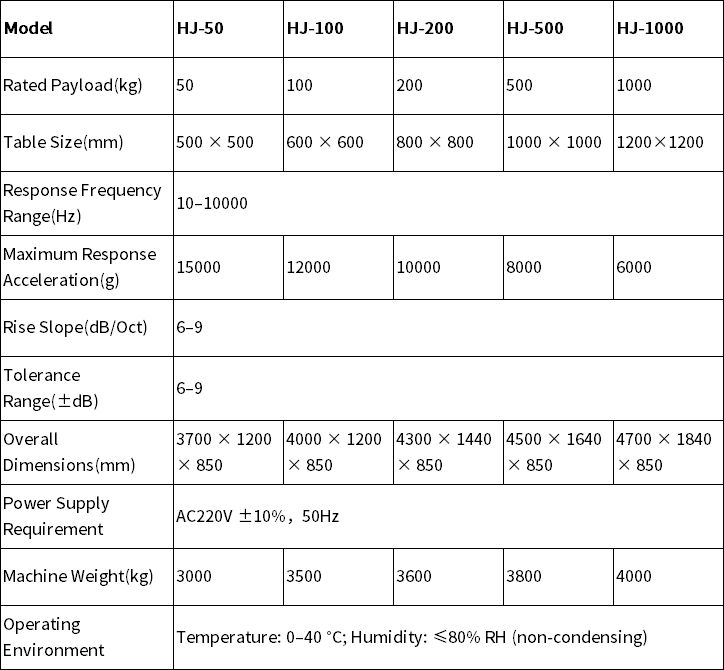

Product Parameters:

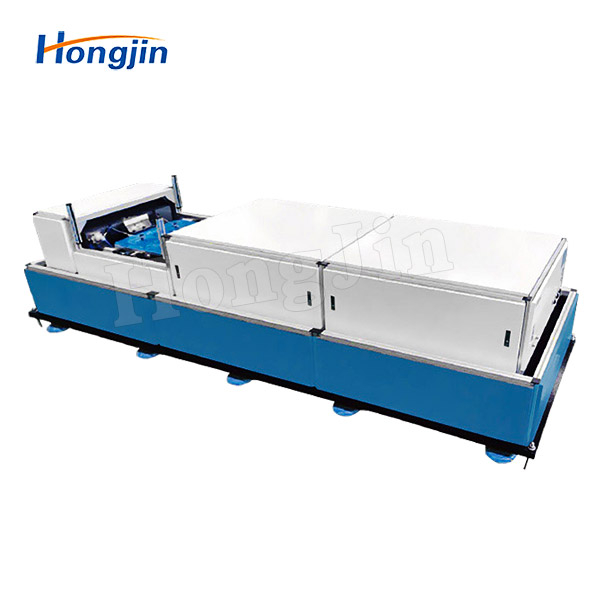

Actual Product Photos:
