Scope of Application:
The tilting and rolling test platform is used to simulate various mechanical, electrical, and electronic products installed on ships, seaplanes, and other equipment, in order to conduct rolling and tilting tests and evaluate the ability of the products to withstand specified severity levels of rolling and inclination, as well as to verify their structural integrity.
Tilting tests are mainly applicable to conditions involving large-angle inclinations caused by ship damage, maneuvering, unbalanced loading and unloading, or wind effects. Rolling tests are primarily intended for products that must maintain normal or reliable operation during long-duration rolling motions of ships under external forces such as wind and waves, as well as for products whose performance is significantly affected when operating in a rolling environment.
Product Features:
1.Based on a stable Windows control system with an automatic remote control interface; operators only need to input simple parameters to accurately complete tilting and rolling tests.
2.The operation interface mainly features real-time data curve display windows, while simultaneously showing test parameters, system status, and test progress.
3.Supports sine signal operation, self-closed-loop regulation, multiple functional controls, and alarm indication functions.
4.Rolling (roll), pitching, yawing, and tilting test functions are all integrated into a single test platform.

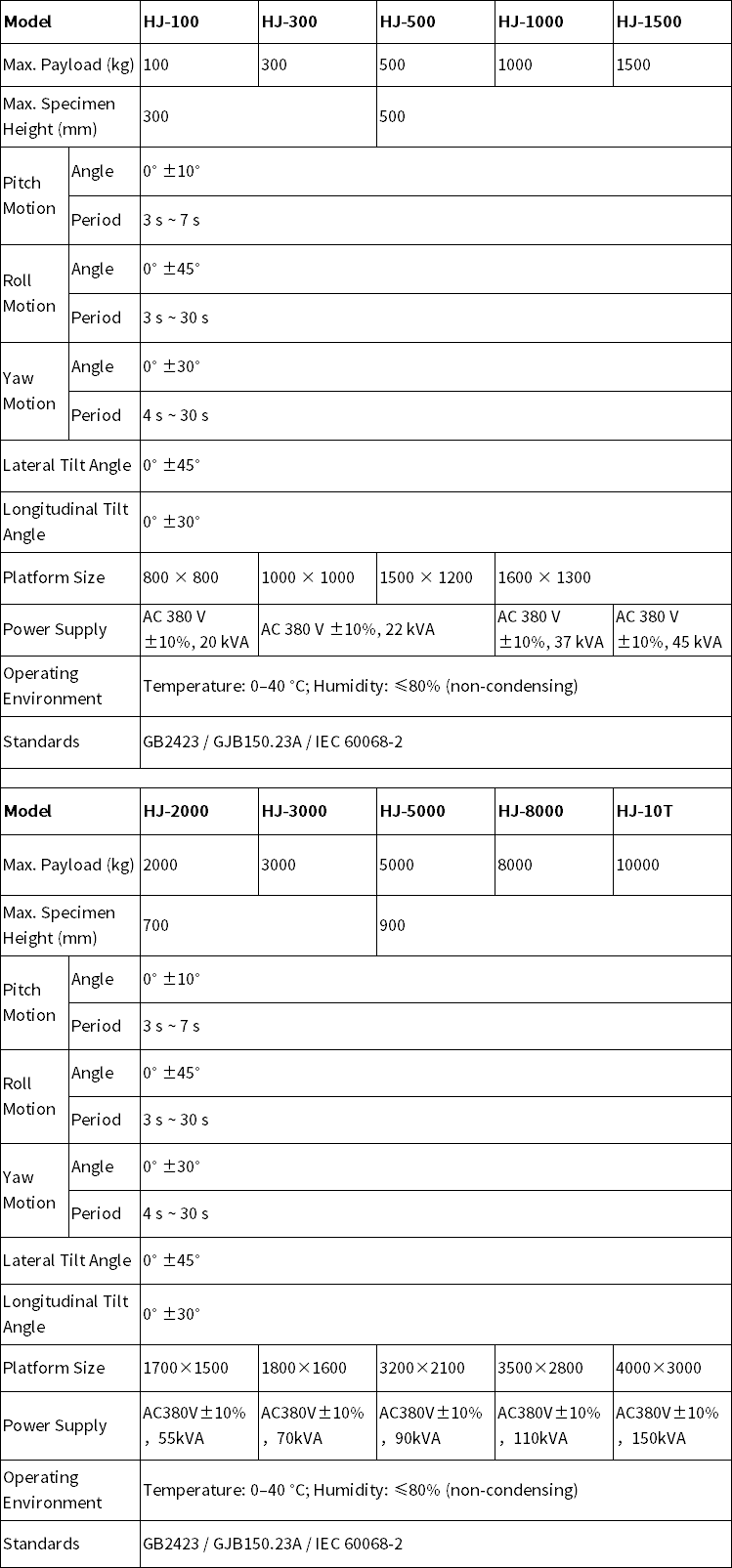

Product Parameters:

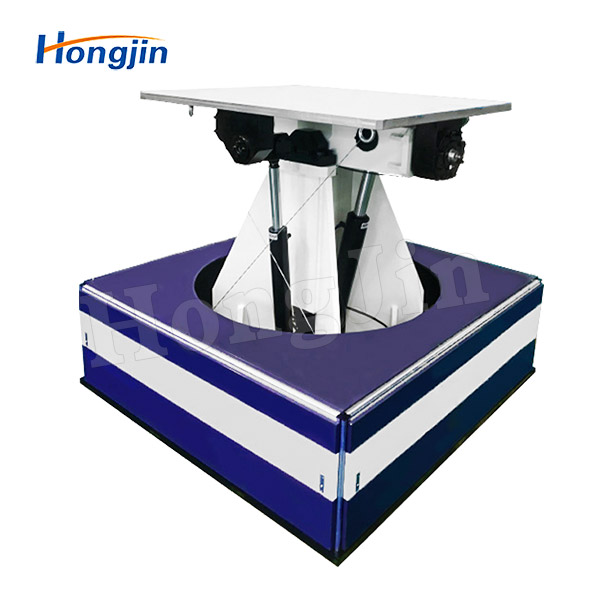

Actual Product Photos:
