Application Scope:
The benchtop tensile testing machine is suitable for static mechanical performance testing and analysis of metals and non-metals (including composite materials), rubber and plastics, and adhesive materials. It supports tensile, compression, bending, shear, peel, tear, and load-holding tests. With closed-loop control of stress, strain, and displacement, it can measure parameters such as maximum force, tensile strength, peel strength, flexural strength, compressive strength, elastic modulus, elongation at break, and yield strength.
Equipment Features:
This machine adopts a single-column (single-arm) structure. The main unit consists of a column, upper crosshead, middle crosshead, and worktable. The speed control system is installed beneath the worktable and is driven by a high-precision servo motor featuring a wide speed range and stable performance. Power is transmitted through a synchronous toothed-belt reduction system to drive the ball screw assembly, which in turn moves the middle crosshead and the tensile fixtures (or compression and bending fixtures) up and down to apply and release loads on the specimen.This structural design offers high rigidity, high efficiency, stable transmission, and reliable performance.

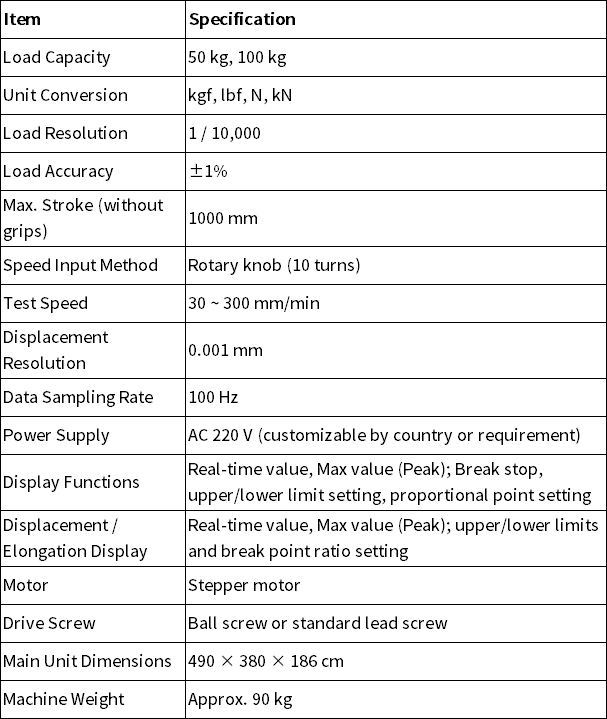

Product Parameters:

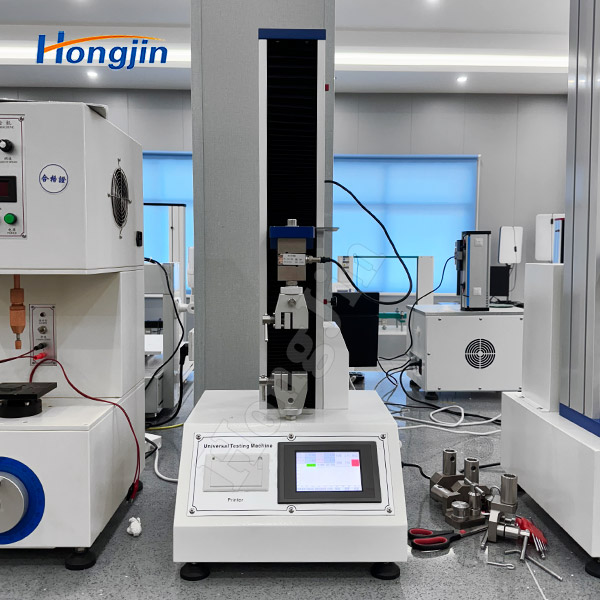

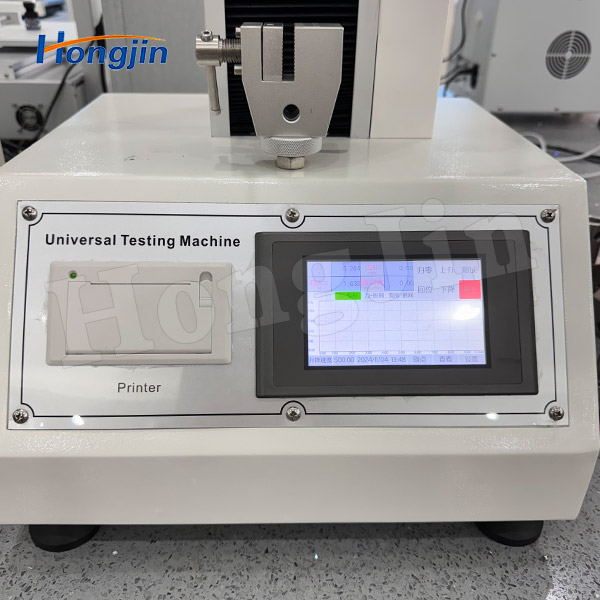

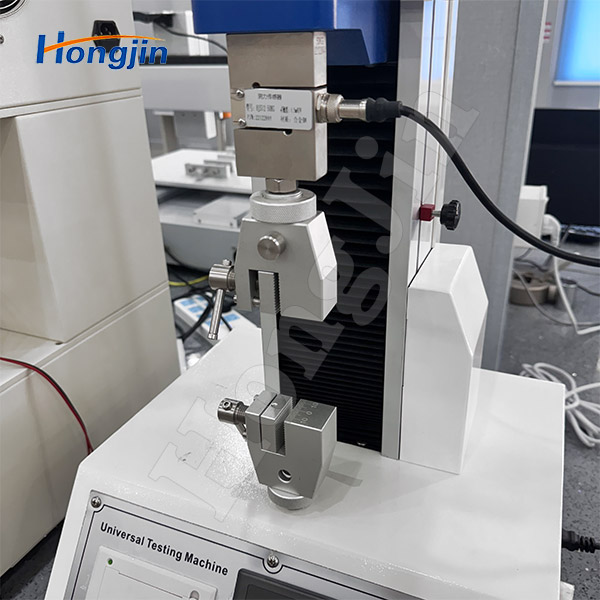

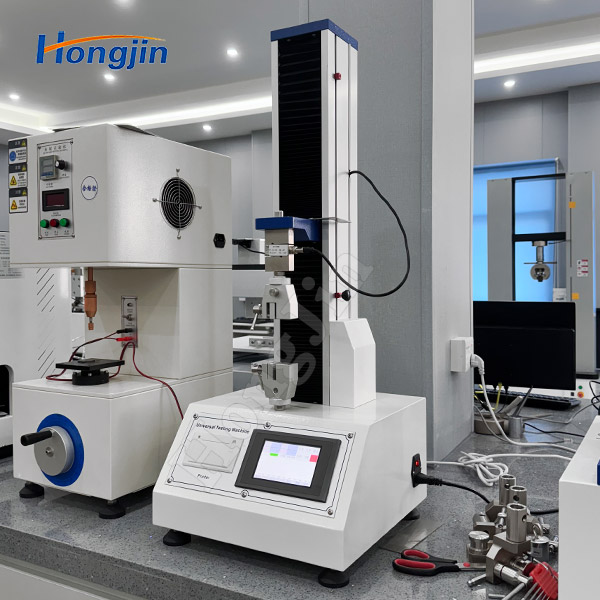

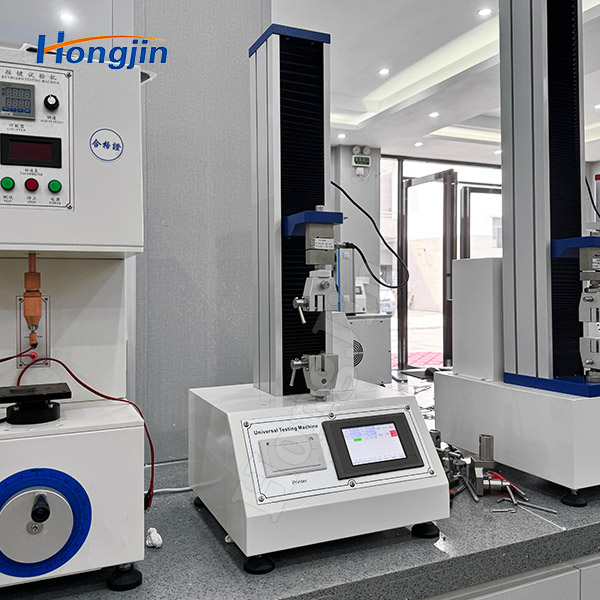

Actual Product Photos:
