Application：
The battery charge and discharge tester is a professional device used to evaluate the charge and discharge performance of rechargeable batteries. It is widely applied in various scenarios that require battery performance assessment, including battery research and development, battery manufacturing, performance evaluation, fault diagnosis, power industry, new energy industry, telecommunications, and industrial automation, among others.
Main Functions：
1.Constant Current Discharge FunctionThe tester provides a constant current discharge function for battery packs.Discharge current: 0–30 A continuously adjustable,enabling accurate capacity measurement of 220 V battery systems.
2.Intelligent Charging Function Equipped with intelligent charging capability for battery packs.Charging current: 0–30 A continuously adjustable, suitable for battery charging and maintenance applications.
3.Online Monitoring and Rapid Capacity Analysis Features real-time online monitoring and display of all test data, including current, battery pack voltage, individual battery voltage, discharge time, and capacity.After completion of the discharge test, the system can quickly analyze the remaining capacity of each individual battery.
4.Battery Activation Function Supports configurable charge–discharge cycle counts to activate battery packs, effectively improving the capacity of individual cells.
5.Battery Voltage Detection Function Battery voltage measurement range: 1–16 V,compatible with monitoring 2 V, 6 V, and 12 V individual cells.
6.Full-Depth Discharge Function，Capable of supporting continuous discharge tests of up to 10 hours, accurately measuring battery capacity while automatically recording test data.
7.Safety Relay Protection System，The safety relay is controlled by a built-in microcomputer, allowing the battery to be completely isolated when not discharging or when an alarm is triggered, ensuring safe operation.

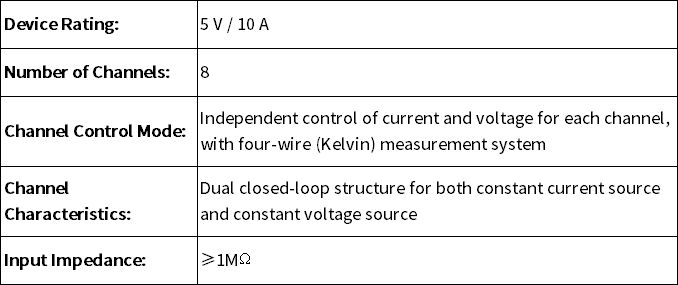

Product Parameters:

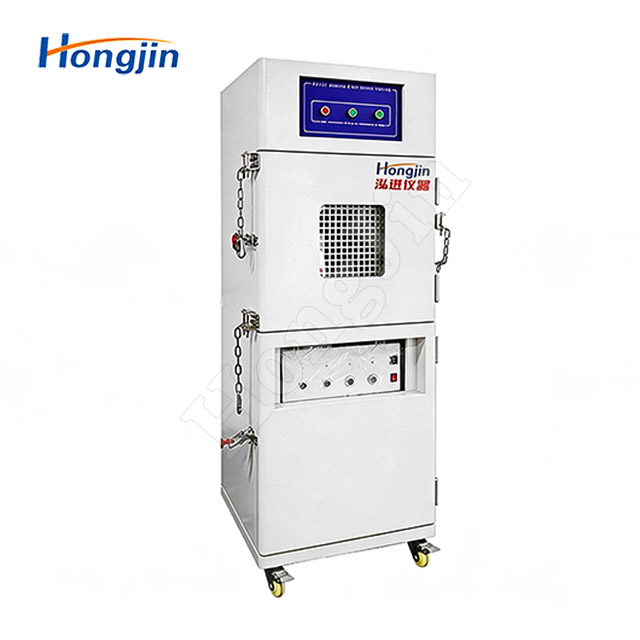

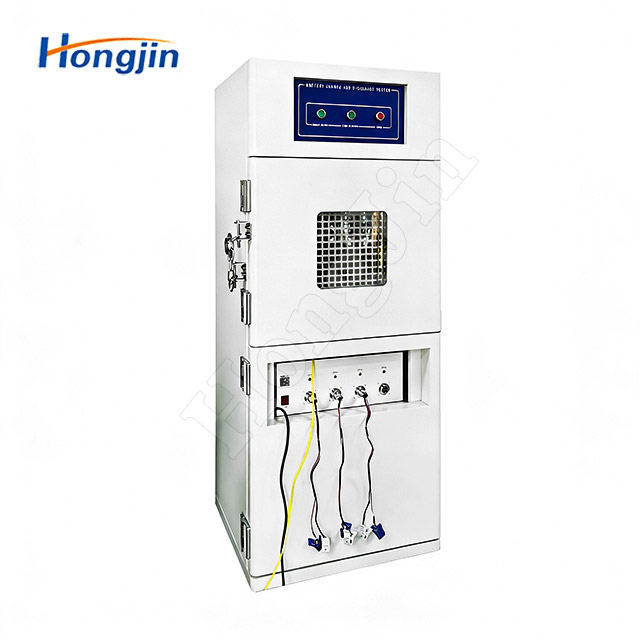

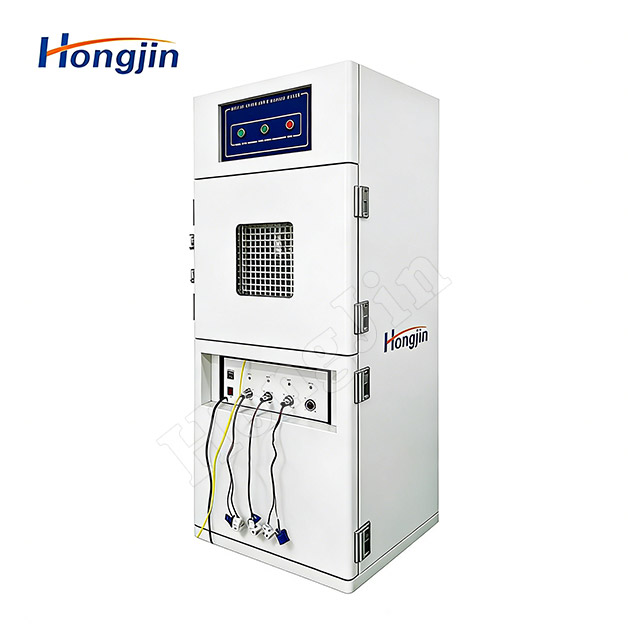

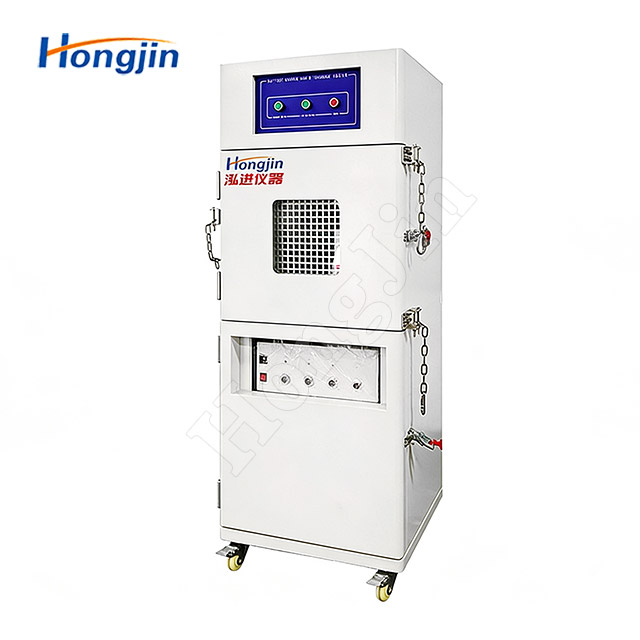

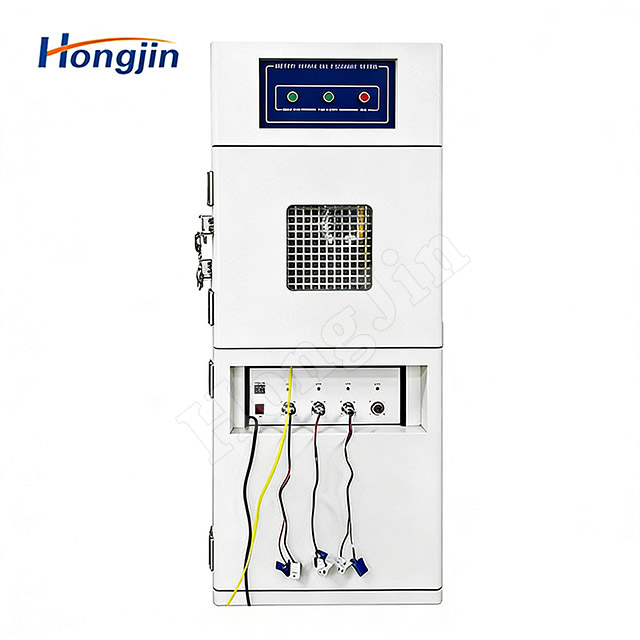

Actual Product Photos:
