HONGJIN
Scope of Application:
The corrugating medium fluter is used to prepare test specimens for corrugated medium flat crush (CMT) and corrugated medium compression (CCT) tests. It forms standard corrugation profiles by fluting the corrugating medium (laboratory corrugation forming).After fluting, the corrugated medium specimens are tested with a computer-controlled compression tester to determine the flat crush strength (CMT) and edgewise compression strength (CCT) of the corrugating medium base paper.
Product Features:
1.High-precision temperature controller with accurate temperature regulation, using PID control with automatic temperature compensation.
2.Fast response and high steady-state accuracy.
3.Digital display of both actual and set temperatures, equipped with over-temperature protection. Set parameters are automatically retained after power failure, and the system features automatic parameter tuning.
4.Precisely machined copper corrugating gears with high thermal capacity, excellent heat transfer, and strong wear resistance. Standard control buttons are sensitive and durable, enabling automated fluting of corrugating medium paper.

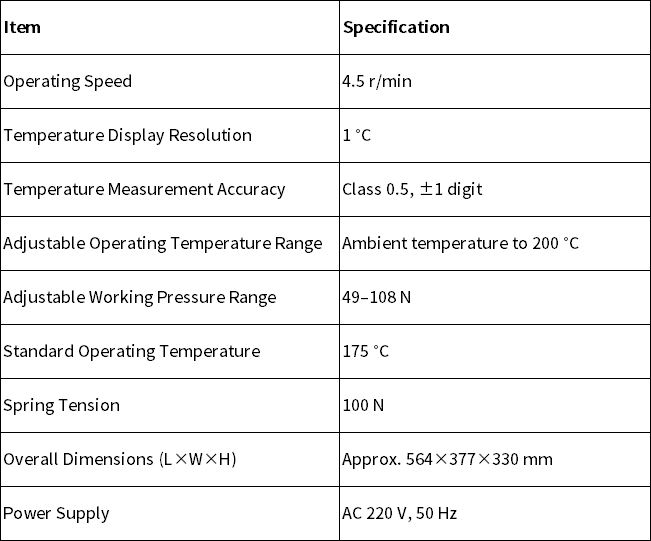

Product Parameters:

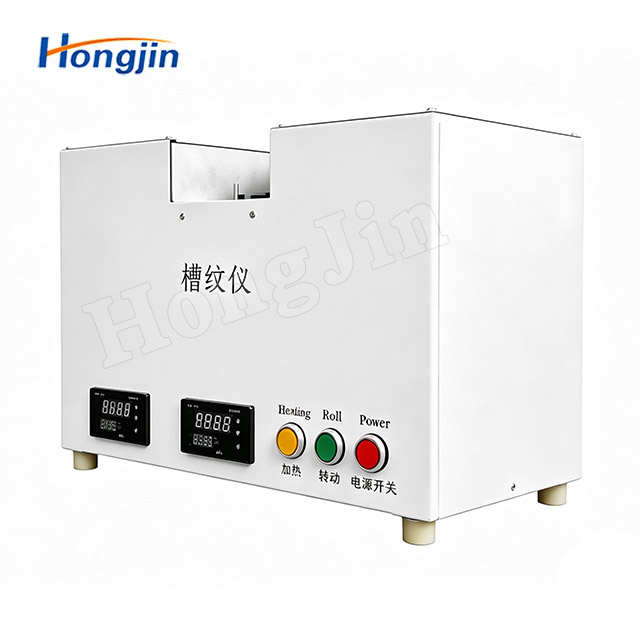

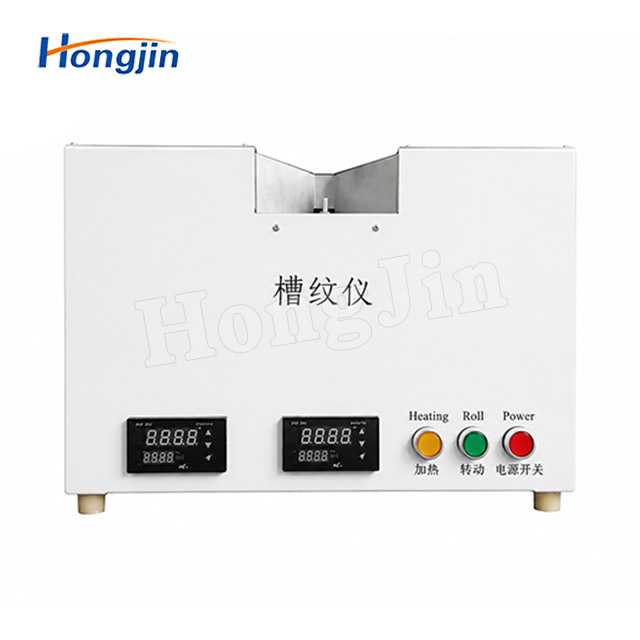

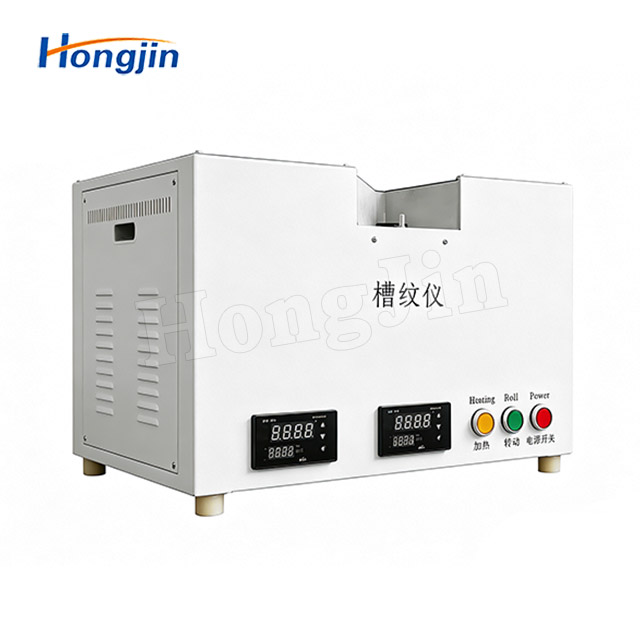

Actual Product Photos:
Company Profile:
