Application Range:
The vertical and horizontal vibration testing machine is suitable for industries such as defense, aviation, aerospace, communications, electronics, automotive, and home appliances. It is primarily used to detect early product failures, simulate actual working conditions, and conduct structural strength tests. The equipment combines vertical and horizontal bidirectional vibrations, covering multi-dimensional vibration testing requirements, making it applicable for product quality verification across different industries.

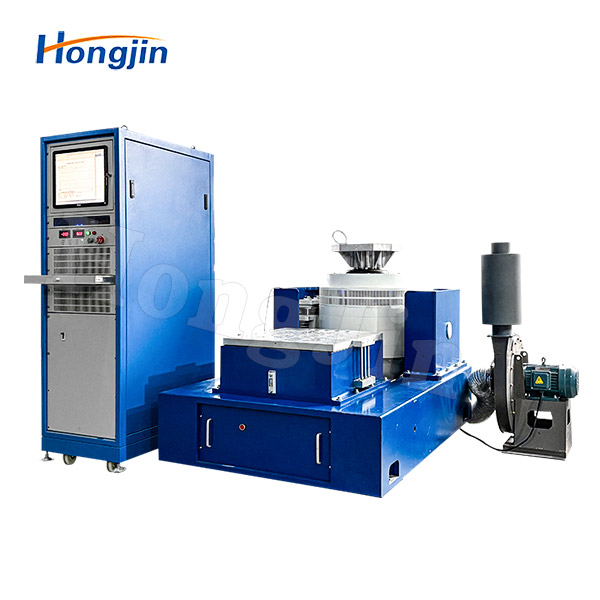

Product Introduction:
This machine simulates a vibration environment under laboratory conditions to test the impact strength and reliability in various vibration testing applications. The vibration testing system can replicate sine, random, resonance searching and dwelling, typical shocks, and road simulations. It is essential for product quality assurance and new product development. Specially designed to support long-duration operation, the machine can achieve vertical and horizontal vibration by adding a vibration-resistant base. The standard frame is equipped with an effective pneumatic vibration isolation system, minimizing the vibration transmitted to the building, and in most cases, no additional foundation is required.
Product Features:
1.Strong suspension system and linear motion guide with high load capacity, excellent guiding performance, and high stability.
2.The center-loaded airbag has high static stiffness and low dynamic stiffness, offering strong load-bearing capacity and effective amplitude changes.
3.Fast self-check diagnostics and high-level interlock protection.
4.The airbag isolation damping system allows the vibration table to operate without a foundation, perfectly reproducing vibration waveforms and reducing vibration transmission.
5.Provides different applications for horizontal and vertical extension platforms.
6.The selected controller pairing offers easy operation.

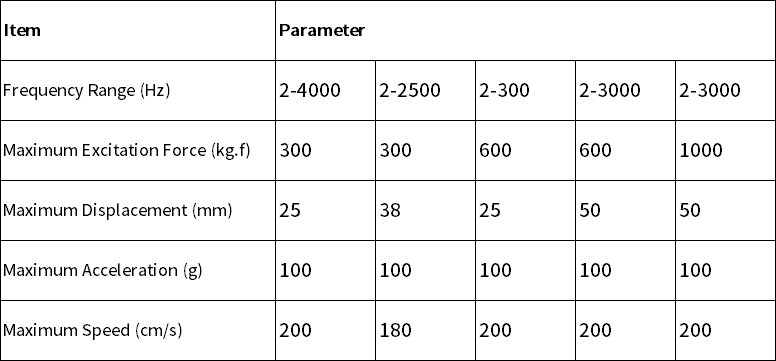

Product Parameters:

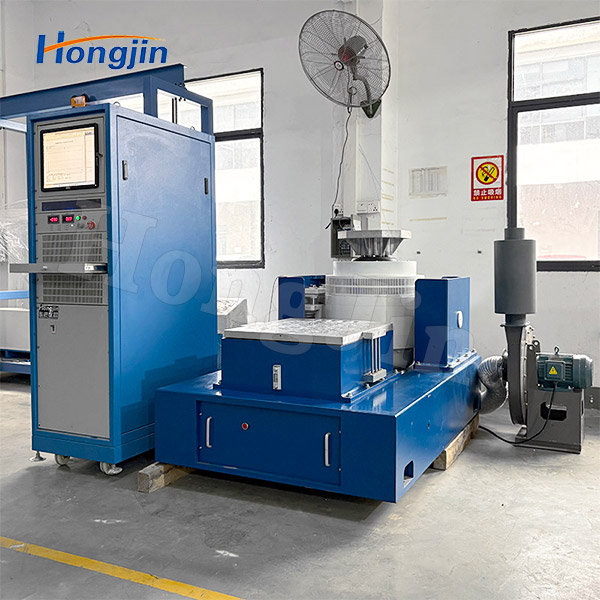

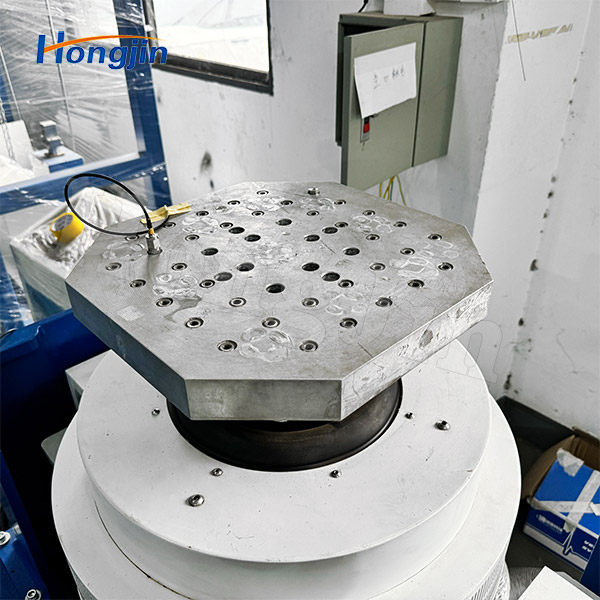

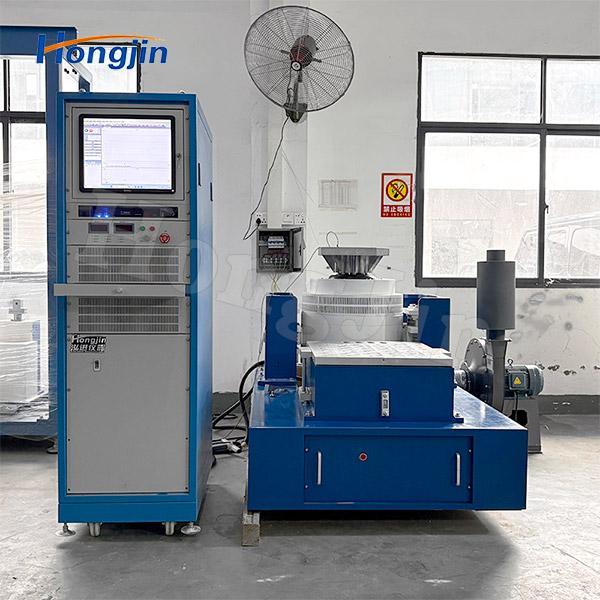

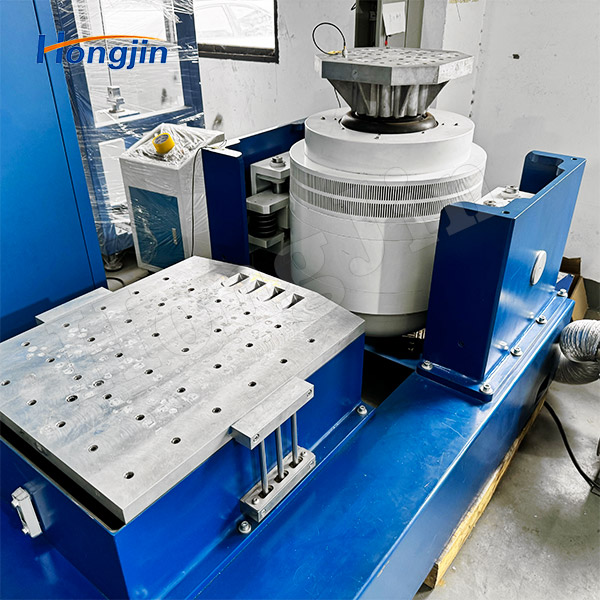

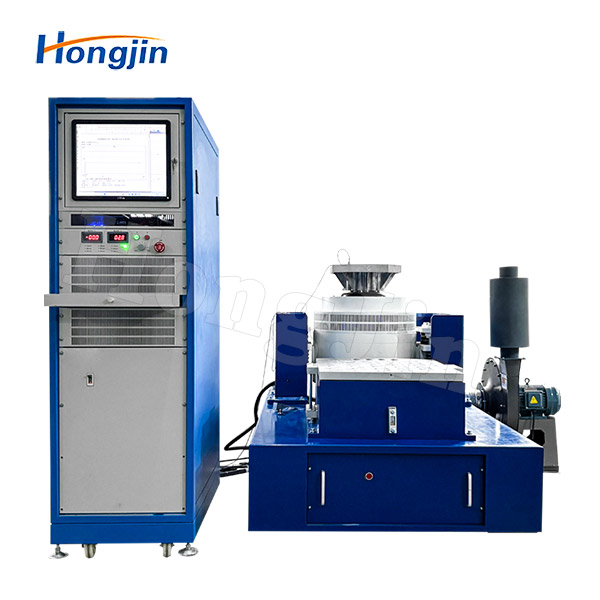

Actual Product Photos:
