Application Scope:
The torsion testing machine for metal mechanical parts is mainly used to test the torsional mechanical properties of various metal specimens, hardware specimens, and mechanical components. The tested connection parts are installed between fixtures with adjustable spacing, allowing the machine to accommodate torsional mechanical property tests for different metal specimens.
Product Features:
The loading of this testing machine is controlled by a computer and an AC servo motor control system. The AC servo motor drives the active chuck to rotate through a cycloidal pinwheel reducer to apply torsional loading. Torque and torsion angle are measured using a high-precision torque sensor and a photoelectric encoder. The computer dynamically displays the relationship curve between the rotation angle and torque, loading rate, peak test value, and other parameters.
This testing machine is mainly used for torsion tests on metal and non-metal materials, as well as automotive-related components. It is an essential piece of equipment for determining torsional properties in mechanical laboratories of aerospace, transportation, building materials industries, scientific research institutes, engineering universities and colleges, and industrial and mining enterprises.

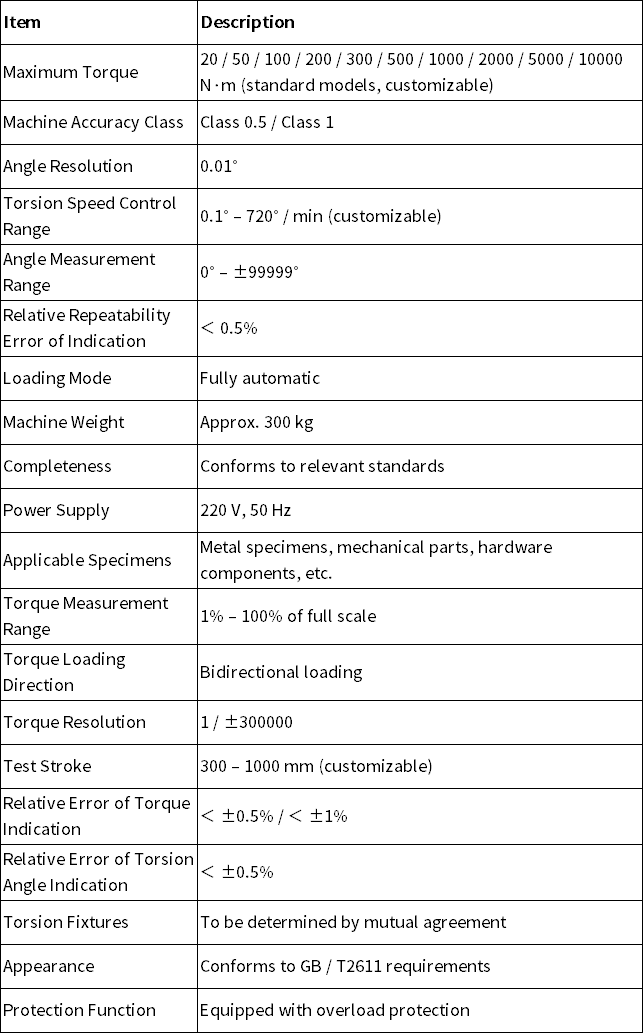

Product Parameters:

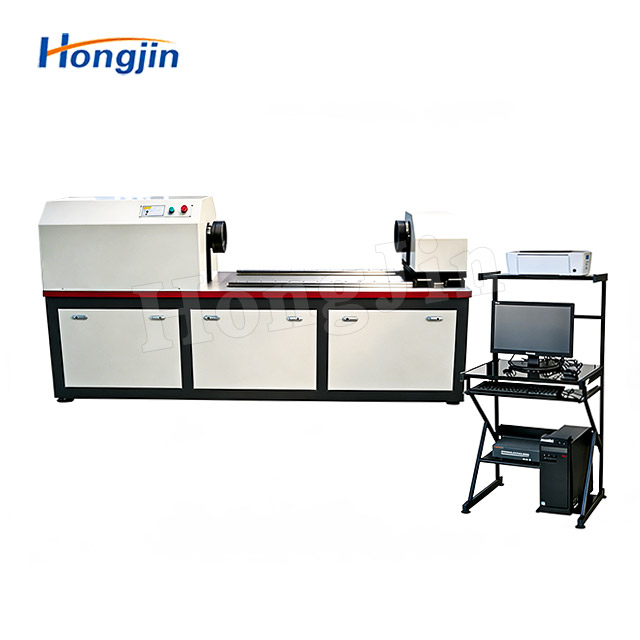

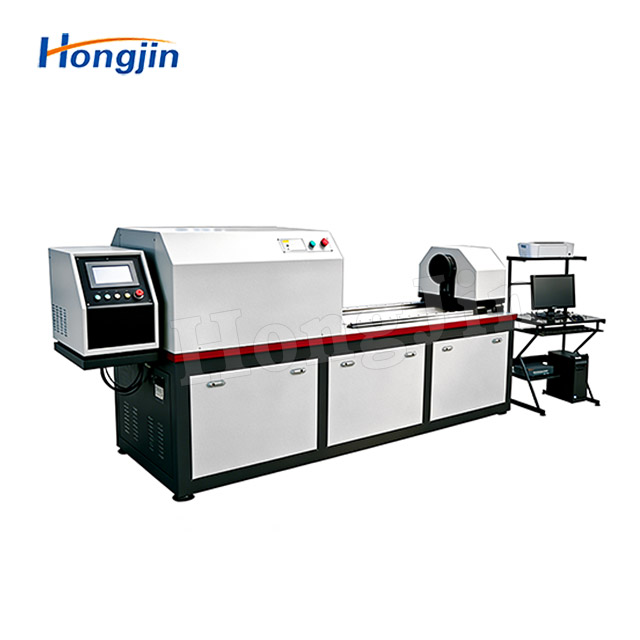

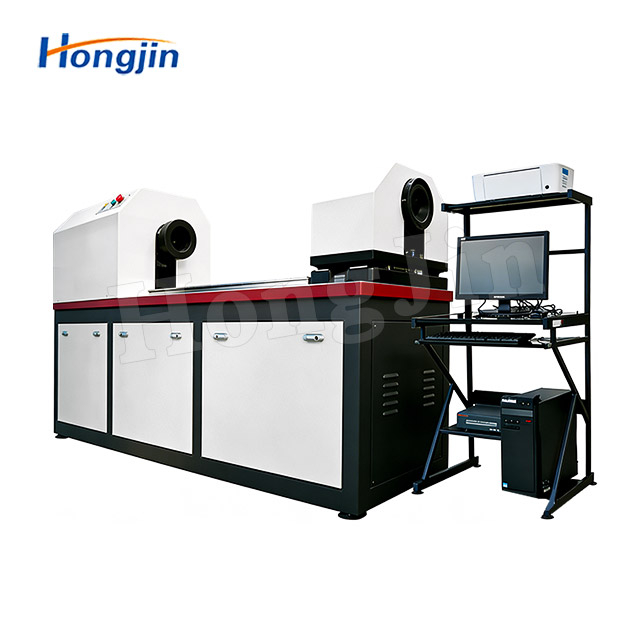

Actual Product Photos:
