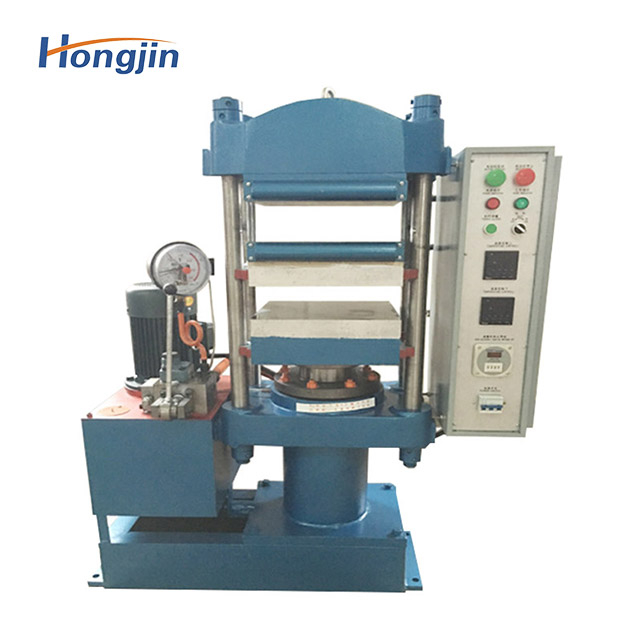

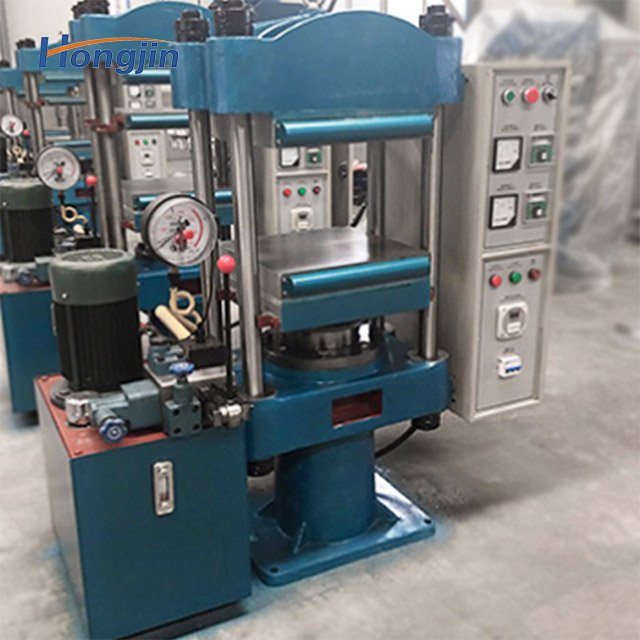

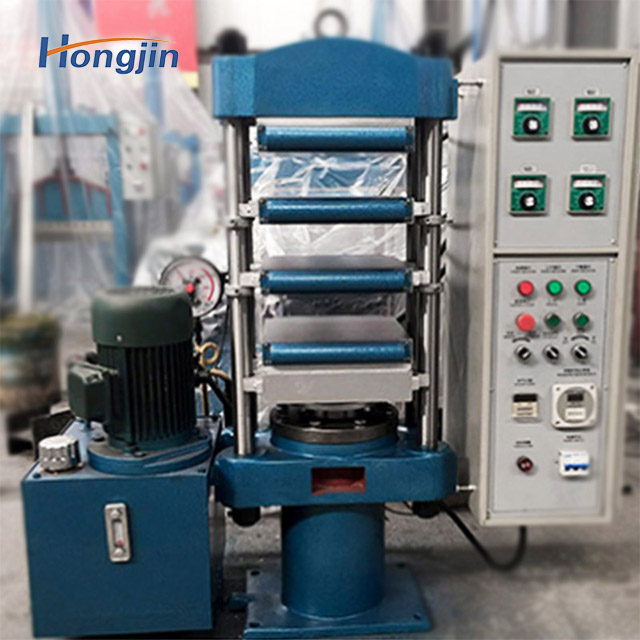

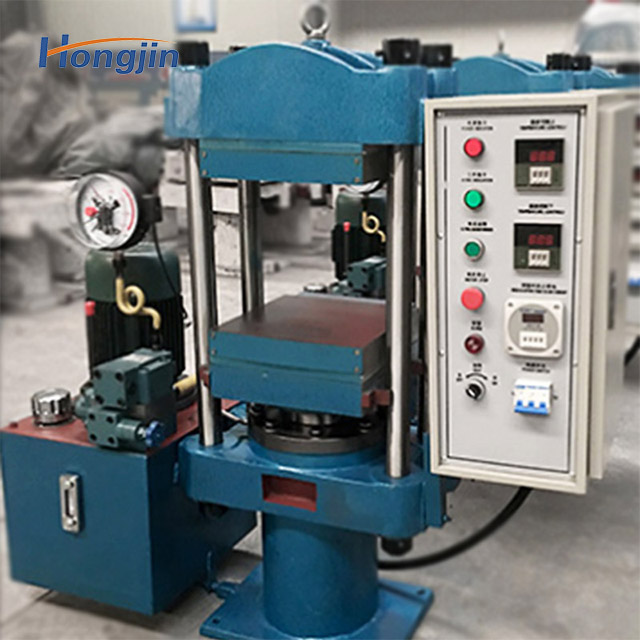

Rubber flat vulcanizer

1. The rotorless vulcanizer is mainly composed of the host, temperature measurement, temperature control, sensor, computer, data acquisition of the lower computer, printer and electrical chain.

2. The temperature measurement and control circuit is composed of self-adaptive high-precision PID temperature controller, solid state relay, platinum resistance and heater, which can automatically track the changes of external power grid and ambient temperature, and automatically and real-time correct PID parameters to achieve fast and accurate temperature control the goal of.

3. With the strong support of computer database and related software, the data acquisition system stores all the data of each measurement, and optimizes each parameter. According to the optimization plan, all data can be sorted to find the most optimum curing parameters. In addition to printing the vulcanization curve in real time, it can also echo and print any previous vulcanization curve and parameters on the display.

4. The buttons on the computer of the vulcanizer have the same function as the buttons on the host panel, which is convenient for users to operate. The software interface of the computer is quite friendly and it is extremely convenient to use. Users can accurately measure scorch time, positive vulcanization time, vulcanization index, maximum and minimum torque, etc. It is an ideal equipment for the rubber industry to control the quality of rubber compounds, rapid inspection and basic research on rubber.
