Application Scope:
The rubber flat vulcanizing press (also known as a rubber plate vulcanizing machine) is a key piece of equipment used for vulcanization molding of rubber, polymer materials, and composite materials under temperature and pressure conditions.
Product Introduction:
The flat vulcanizing machine is a new type of hydraulic vulcanizing press. Compared with traditional compression molding machines, it can significantly improve the quality of molded products. This machine is suitable for vulcanizing various rubber products and is essential equipment for molding and processing plastics, foamed rubber, bakelite products, and various thermosetting materials.
Product Features:
1.This model integrates mechanical, electrical, and hydraulic technologies, offering a high degree of automation.
2.The main unit adopts both column-type and frame-type structures, featuring a clear layout, neat appearance, and high rigidity. The hydraulic cylinder, upper crossbeam, and movable platen are made of ductile iron, ensuring stable performance and long service life.
3.The electrical system uses imported components with reliable quality and more precise temperature control. High-temperature-resistant wiring is used in the heating connections, ensuring high reliability.
4.The electric heating system adopts tubular resistance heaters installed inside the heating platens to provide heating (suitable for users without a boiler). This system is energy-efficient, prevents material adhesion, ensures uniform platen temperature, offers good insulation performance, and is an ideal heating method.
5.High-quality materials are selected for the entire machine, with a wide processing range. All performance indexes meet the requirements of GB/T 25155, providing excellent cost performance.
6.The electrical control cabinet is installed separately on the right side of the main machine. In the electric heating type, each heating platen is equipped with six heating tubes, each with different power sections, ensuring uniform platen temperature. The platen temperature is automatically controlled with high accuracy, resulting in high-quality products. The machine operates without pressure loss or oil leakage, with low noise, high precision, and flexible operation.

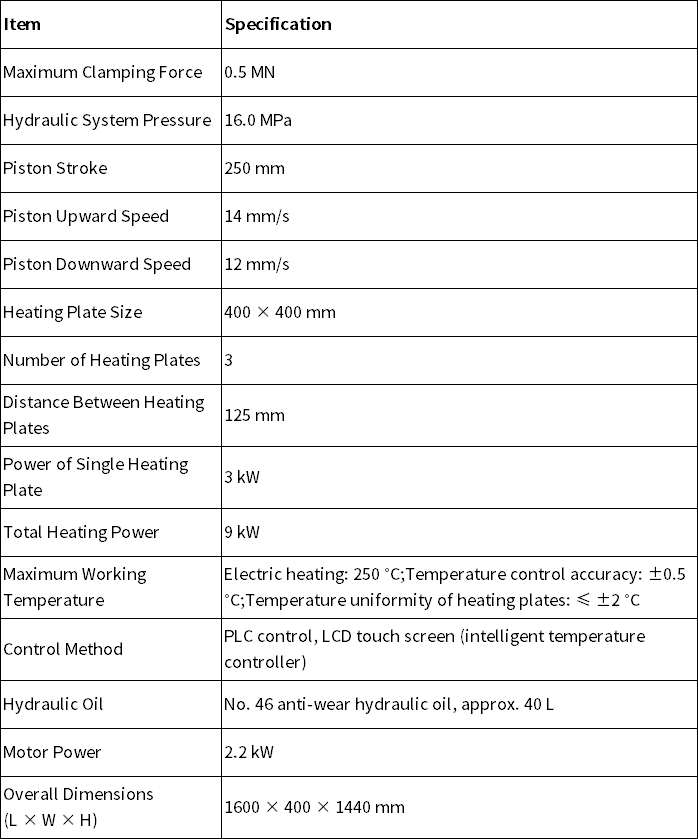

Product Parameters:

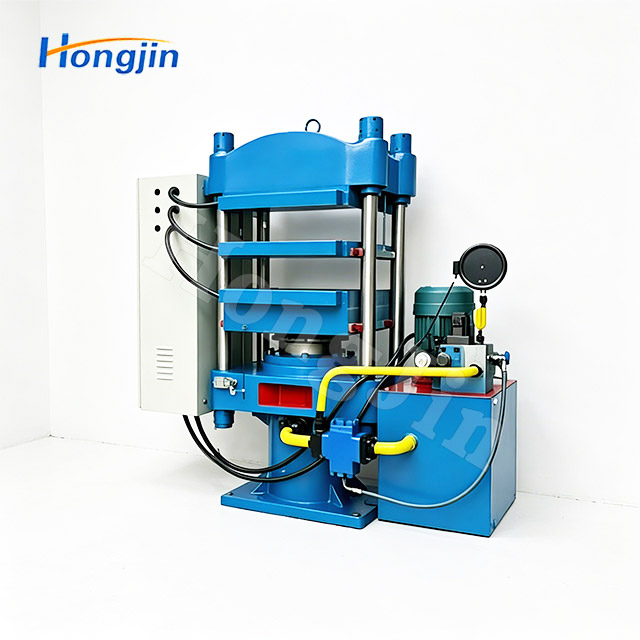

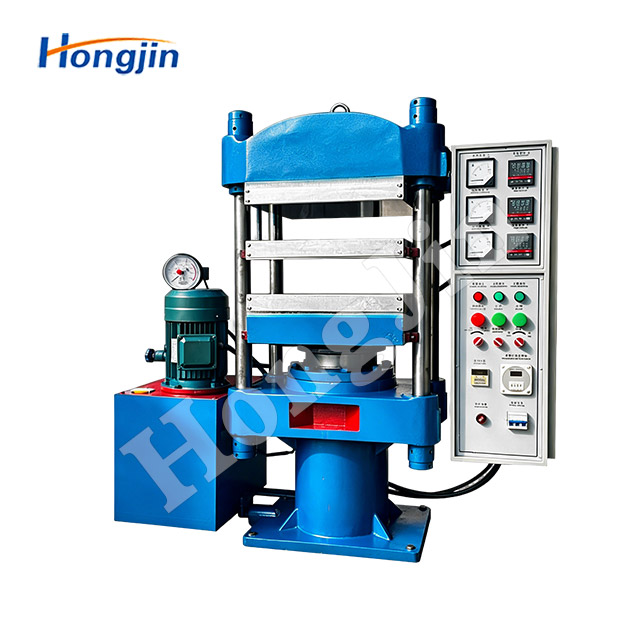

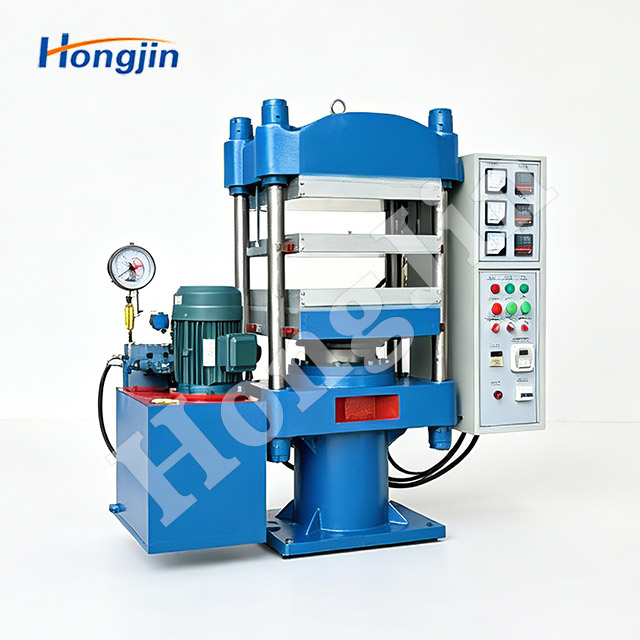

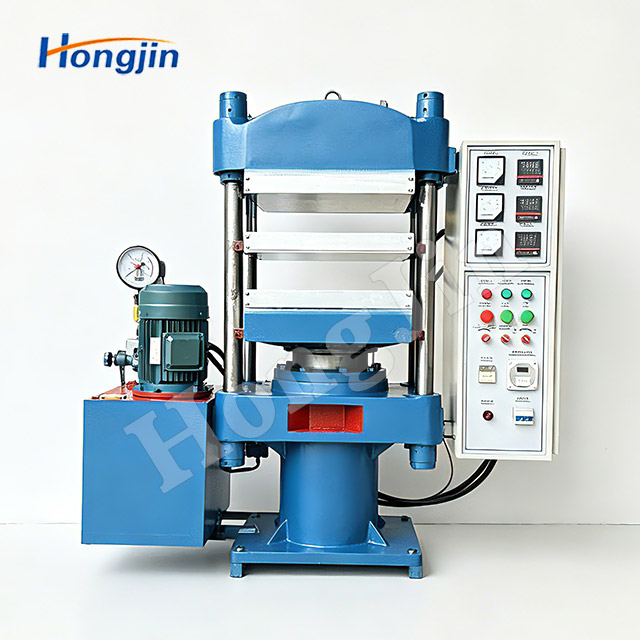

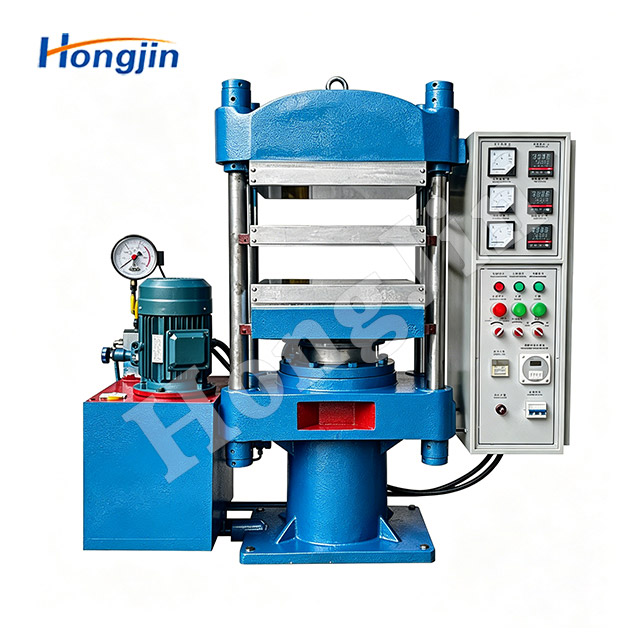

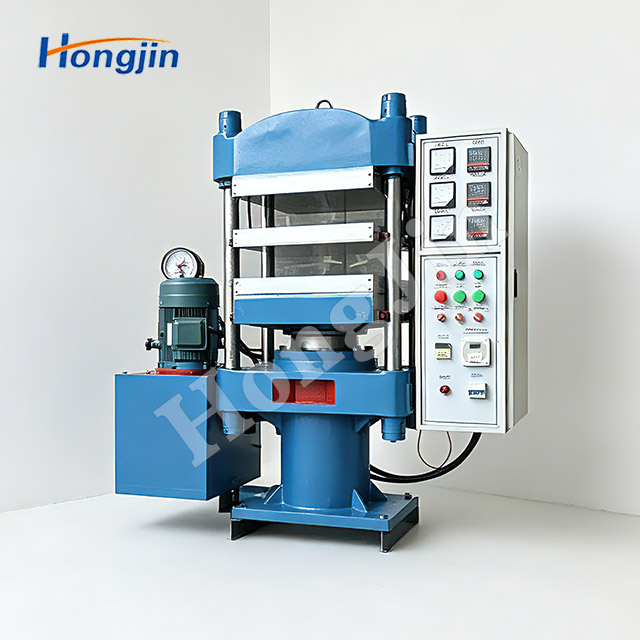

Actual Product Photos:
