Application Scope:
The Packaging Clamp Force Testing Machine is used to simulate the clamping force exerted by forklift clamps on packaged products during loading and unloading, in order to evaluate the effects of the clamping force applied by the two clamp plates on the packaging and the goods inside. It is used to assess the clamp resistance strength of packaging.This machine is suitable for finished product packaging such as kitchenware, furniture, home appliances, toys, and similar products, and is especially suitable for clamp strength testing of packaging required by brand owners.It is applicable to testing all types of product packaging to evaluate the deformation of the packaging and its protective capability for the internal products when subjected to horizontal pressure during transportation or storage, thereby helping to improve and optimize packaging design.
Product Features:
1.The entire machine adopts a dedicated clamping control system to achieve effective control of actions at each test station.
2.The system is equipped with a centralized control cabinet, allowing the setting of clamping force, clamping speed, lifting, and stop functions. Manual or automatic test modes can be selected via the control panel. In manual mode, each action can be controlled individually; in automatic mode, all actions run continuously in a coordinated sequence, ensuring safe operation and stable cycle testing.
3.An emergency stop button is installed on the control cabinet panel for enhanced operational safety.

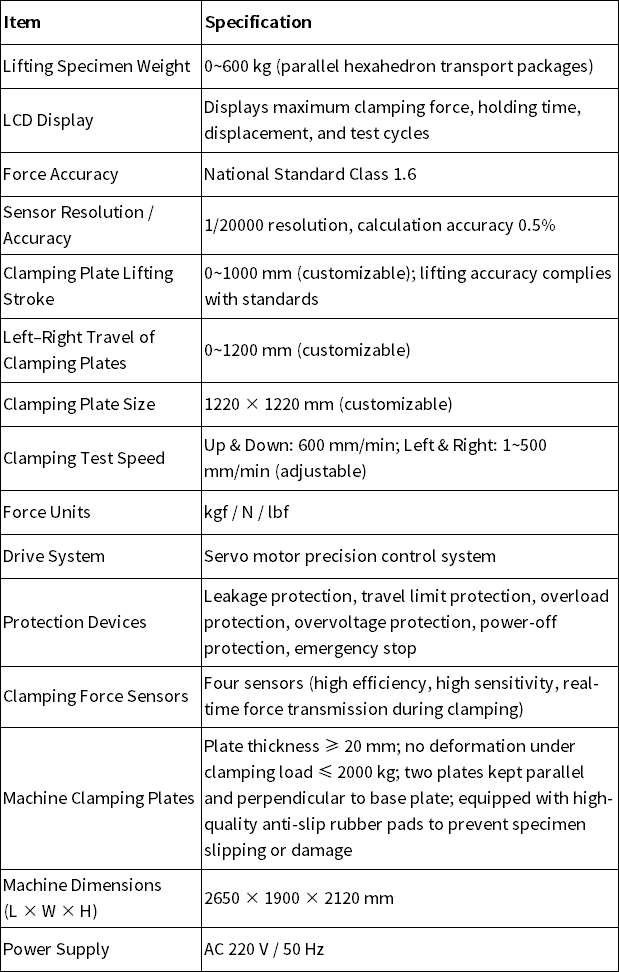

Product Parameters:

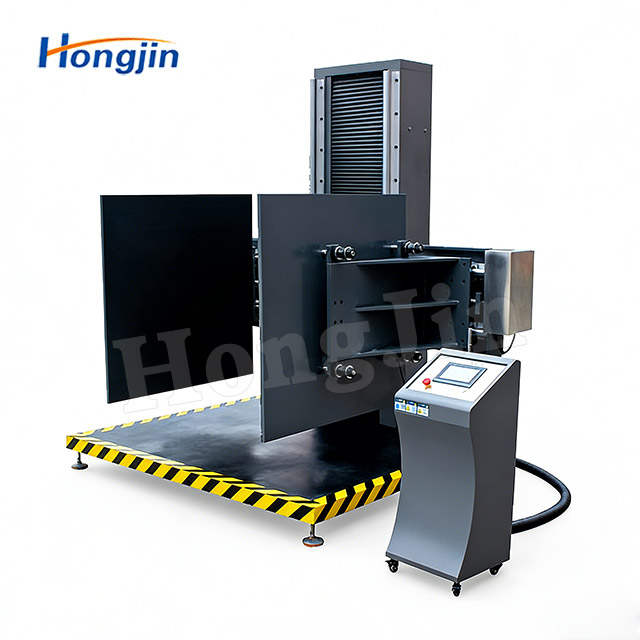

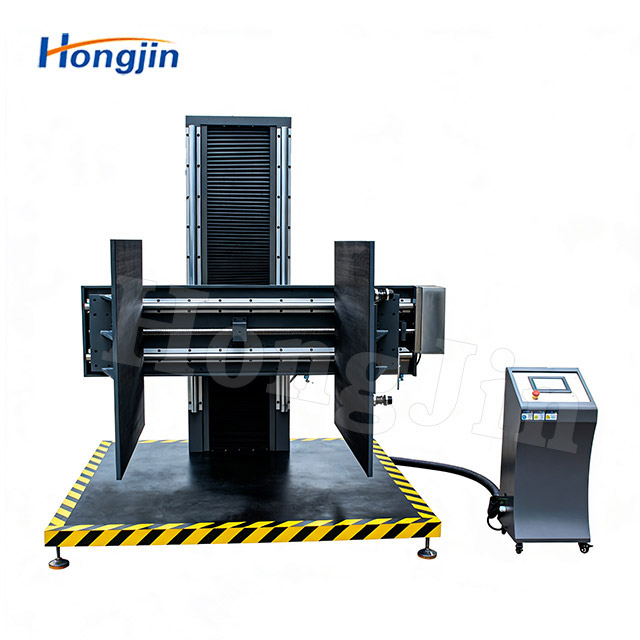

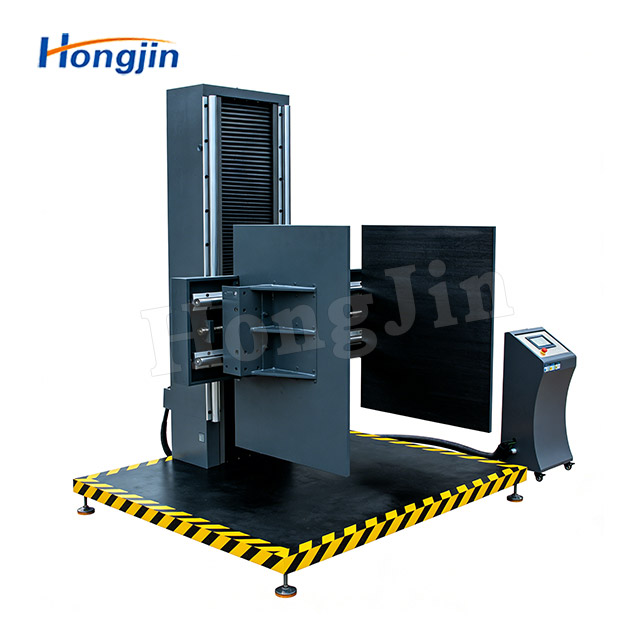

Actual Product Photos:
Company Profile:
