HONGJIN
Scope of Application
The drying oven is used in factories and research institutions for polymer material drying, resin curing, pharmaceuticals, paint baking, electronics, electroplating, printing and baking processes, motor drying, transformer drying, industrial heat treatment, sterilization, as well as heating and heat preservation processes.
Drying Oven Classification
1. Classification by Performance：
Drying ovens can be classified as:Programmable baking ovens，Precision drying ovens，Nitrogen-purged drying ovens，Vacuum drying ovens，Explosion-proof drying ovens，Electric forced-air drying ovens，Hot air circulation drying ovens
They are widely used for drying and heating electronic components and parts across various industries.
2. Classification by Industry Application：
According to industry application, drying ovens can be classified as:
Drying ovens for the electronics industry，Drying ovens for electrical equipment industry，Drying ovens for electroplating industry，Drying ovens for printing industry，Drying ovens for optical and eyewear industry，Drying ovens for synthetic fiber industry，Drying ovens for woodworking industry，Drying ovens for friction material industry, etc.
3. Classification by Structure：
According to structural design, drying ovens can be divided into:
Horizontal drying ovens，Vertical drying ovens
4. Classification by Rated Temperature
Based on rated operating temperature, drying ovens are generally classified as follows:
a. Low-Temperature Drying Ovens (below 100 °C)
Mainly used for aging tests of electrical products, slow drying of common materials, and drying of certain food ingredients and plastic products.
b. Medium-Temperature Drying Ovens (100 – 250 °C)
This is the most commonly used temperature range, suitable for moisture removal of most materials, coating curing, heating, temperature maintenance, and insulation processes.
c. High-Temperature Drying Ovens (250 – 400 °C)
Used for high-temperature drying of special materials, heating for component assembly, high-temperature material testing, and chemical material reaction processing.
d. Ultra-High-Temperature Drying Ovens (400 – 600 °C)
Designed for higher operating temperatures, suitable for high-temperature drying of special materials, component heat treatment, and high-temperature material testing.
Note:
All of the above drying ovens are manufactured and supplied by our company. Non-standard customized designs are available according to specific technical requirements.
Product Features
1.Optional Configurations:
a. Standard Shelf Type
High load-bearing capacity and excellent flexibility. Shelf spacing can be adjusted as required, suitable for large workpieces.
b. Built-in Rotary Tray Type
Provides 360° dynamic and uniform heating, shortens baking cycles, and is suitable for irregularly shaped workpieces.
c. Single-Layer Trolley Type
No inter-layer obstruction, strong heat penetration, large effective heating area, higher energy efficiency, and reduced manual handling intensity. Suitable for extra-large workpieces.
d. Multi-Layer Trolley Type
Integrated processing with high capacity, maximized productivity, and significantly reduced batch processing time. Suitable for standardized mass-production workpieces.
2.Large-capacity reinforced cabinet with strengthened bottom support frame;
3.Stainless steel inner chamber, customizable in SUS304 or SUS316;
4.PID temperature controller with intelligent temperature control core;
5.High-power low-noise circulation fan, energy-saving, consumption-reducing, and extended service life;
6.Fin-type heating elements on both sides to reduce heat loss and improve heating efficiency;
7.Upgraded thickened thermal insulation cotton to reduce noise and enhance high-temperature resistance;
8.Equipped with a small trolley (load capacity customizable according to customer requirements).

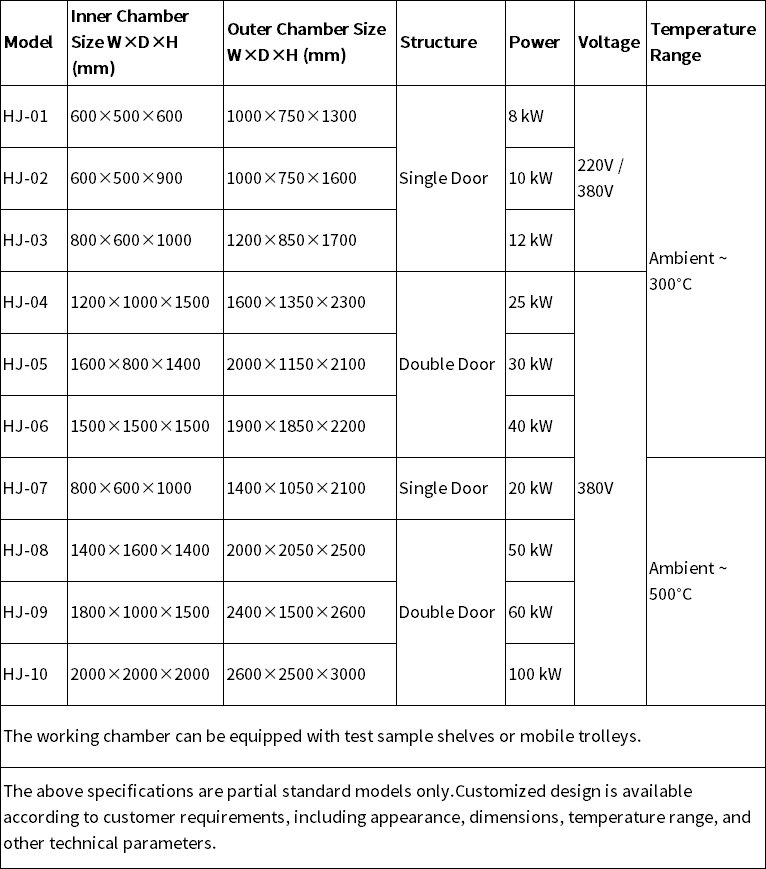

Product Parameters:

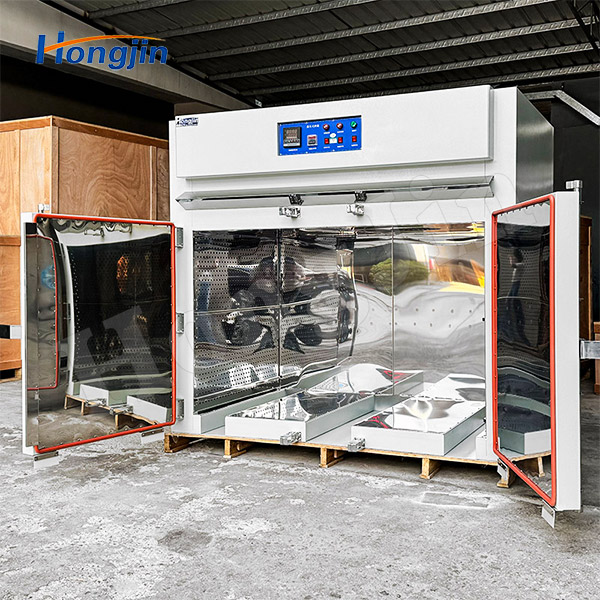

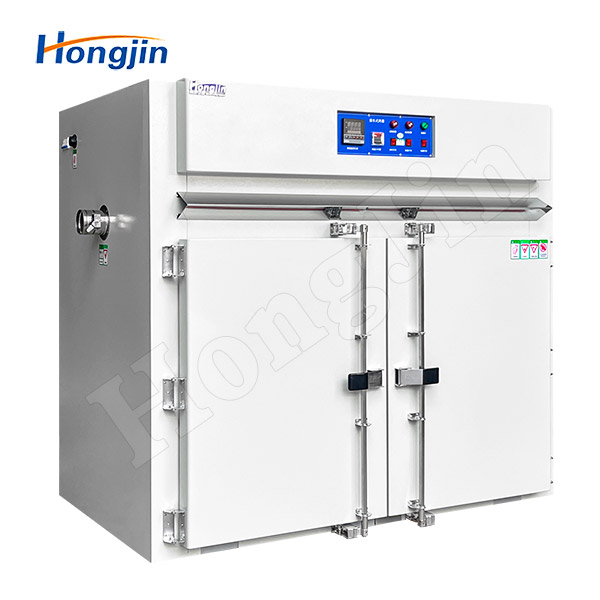

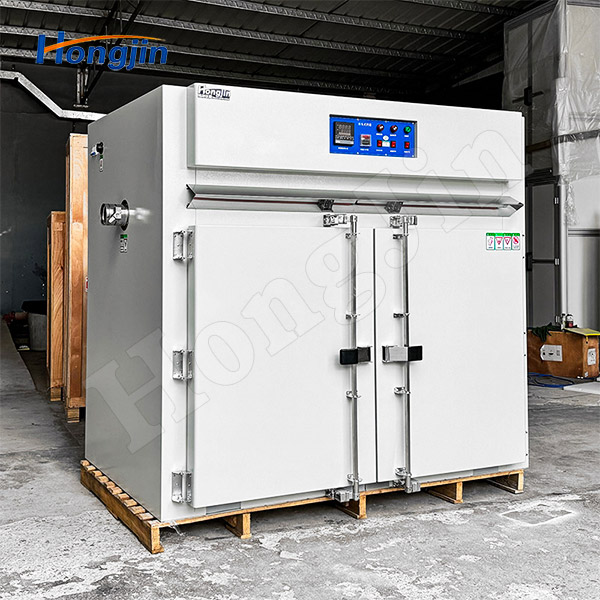

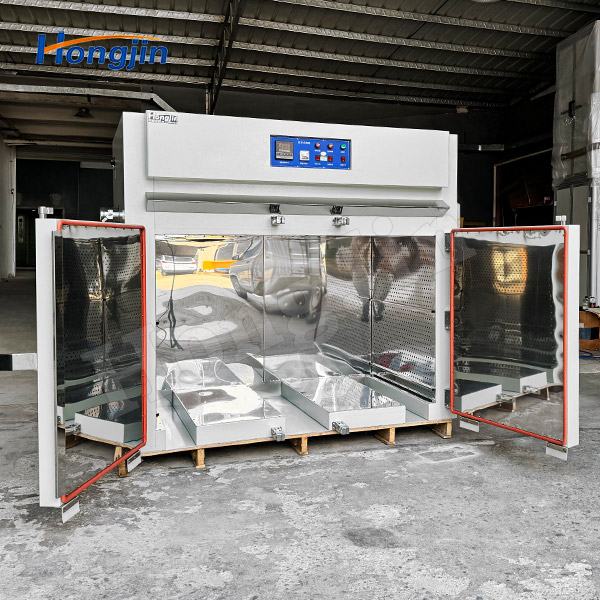

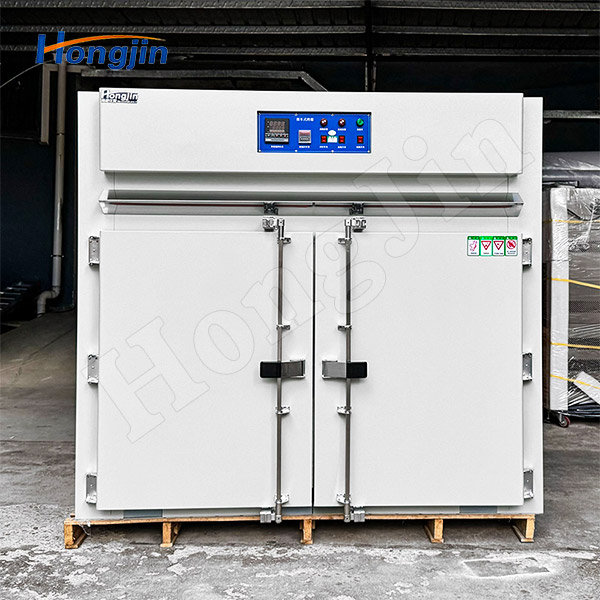

Actual Product Photos:
