Application Scope:
The Fully Automatic Insertion and Withdrawal Force Testing Machine is an experimental instrument used for testing the insertion and withdrawal forces of connectors, primarily applied in the fields of electronics, automotive, aerospace, and new energy. The device simulates the actual insertion and withdrawal process, measuring parameters such as insertion force, contact resistance, and evaluating connector reliability. Its core components include a ball screw drive mechanism driven by a servo motor, a force/displacement sensor system, and a computer control platform.
Product Features:
The fully automatic insertion and extraction force testing machine uses a Windows-based Chinese interface program for easy operation. It automatically stores test data (load-program curves, load decay life curves, test results), and all test conditions can be saved for future reference.

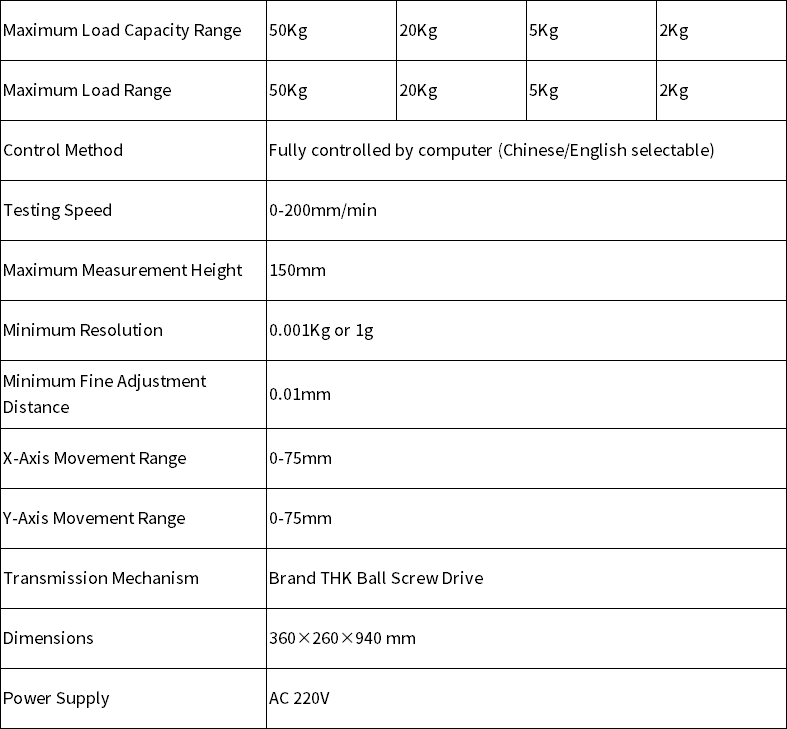

Product Parameters:

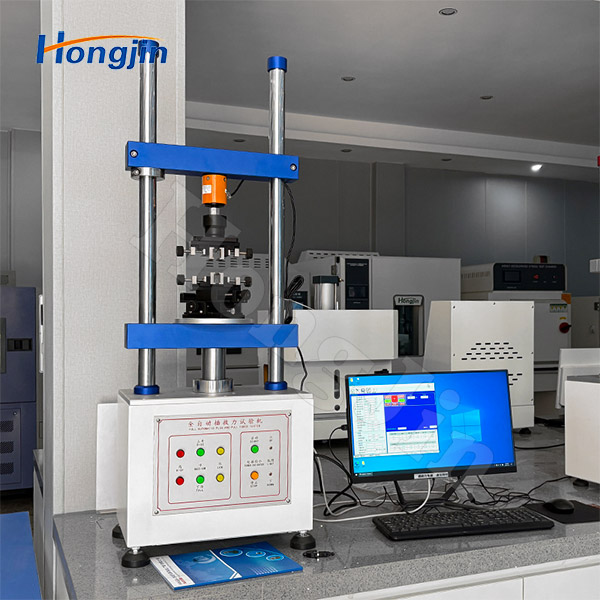

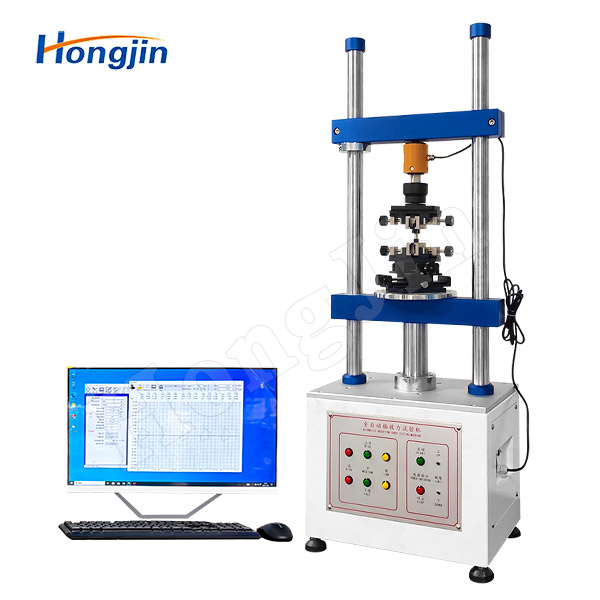

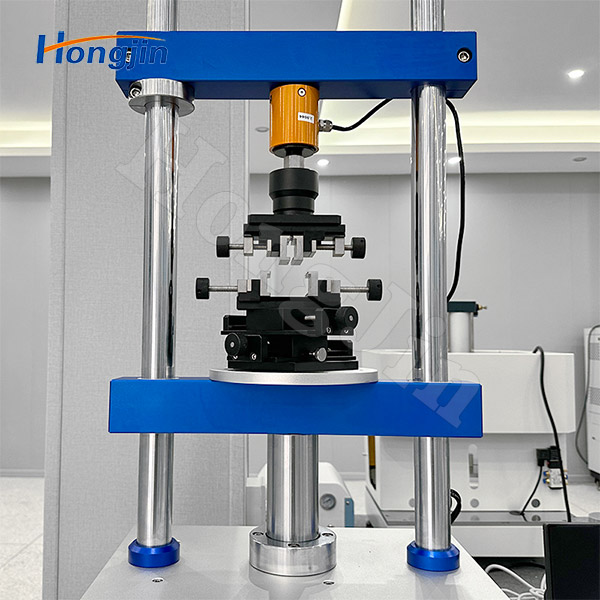

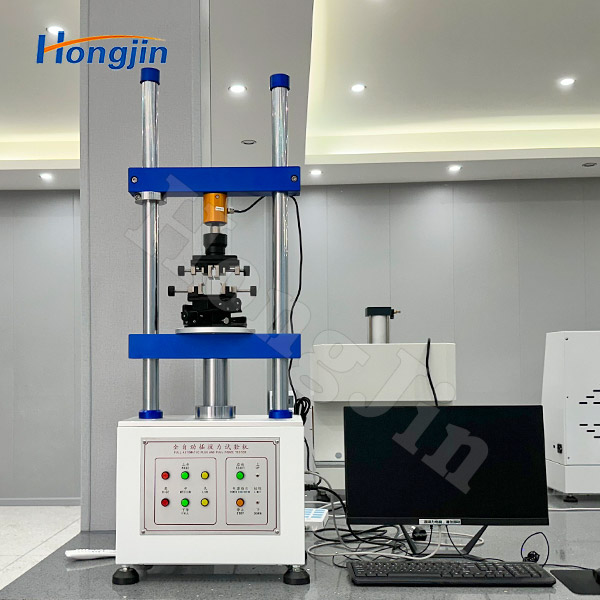

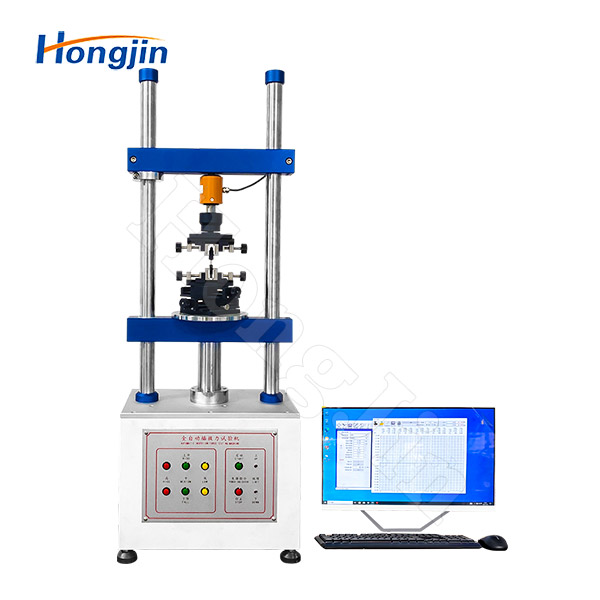

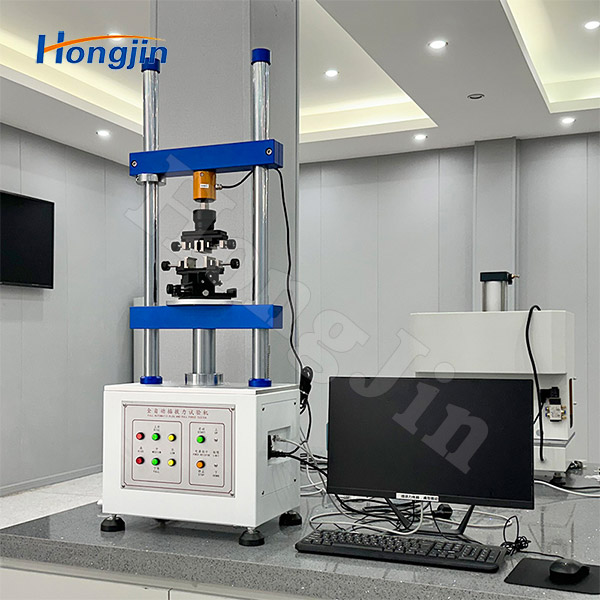

Actual Product Photos:
