HONGJIN
Scope of Application:

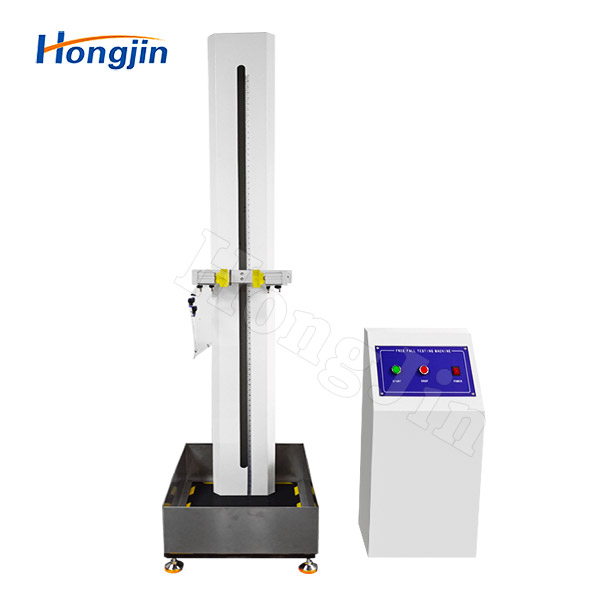

This machine is suitable for free-fall drop testing of small consumer electronic products and components, such as mobile phones, walkie-talkies, electronic dictionaries, building intercom units, and CD/MD/MP3 players.The equipment adopts a pneumatic structure. The test specimen is securely clamped in a dedicated fixture with adjustable stroke. By pressing the drop button, the cylinder releases the specimen, allowing it to undergo a free-fall drop test. The drop height can be adjusted vertically, and the height indicator allows accurate determination of the drop height. The machine features reliable key components, and multiple types of drop surfaces are available for selection.
Product Features：
1.The enclosure adopts an electrostatic powder-coated finish. The overall design is well-engineered, ensuring safe, stable, accurate operation with an attractive appearance.

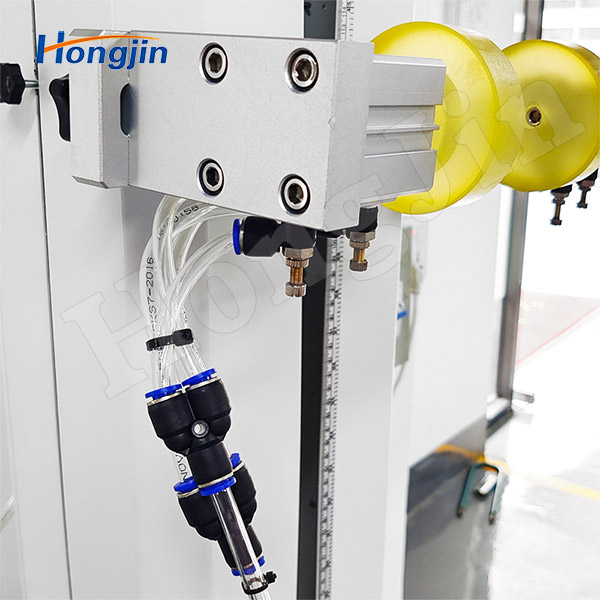

2.Pneumatic clamping is used to hold the test specimen. The front end of the fixture is fitted with silicone rubber, effectively preventing deformation of the product during clamping.
3.The test height can be adjusted by jog operation or motorized lifting, with a steel ruler provided to indicate the test height.
4.Equipped with a protective enclosure to prevent the test specimen from being ejected after impact.

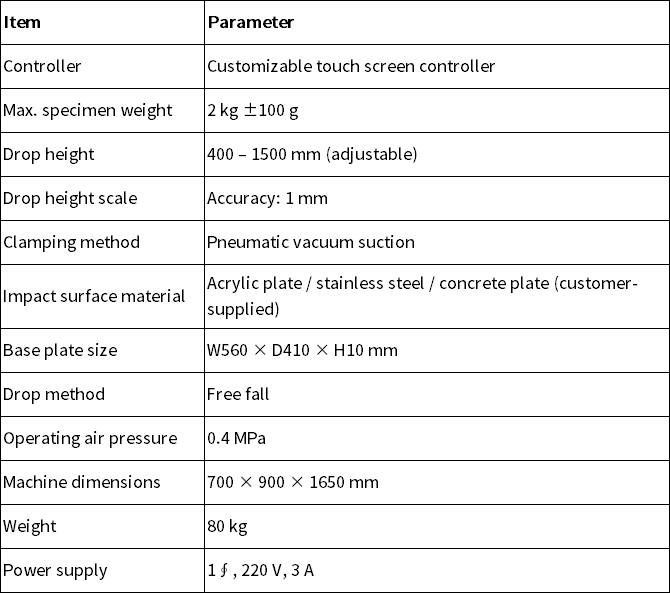

Product Parameters:

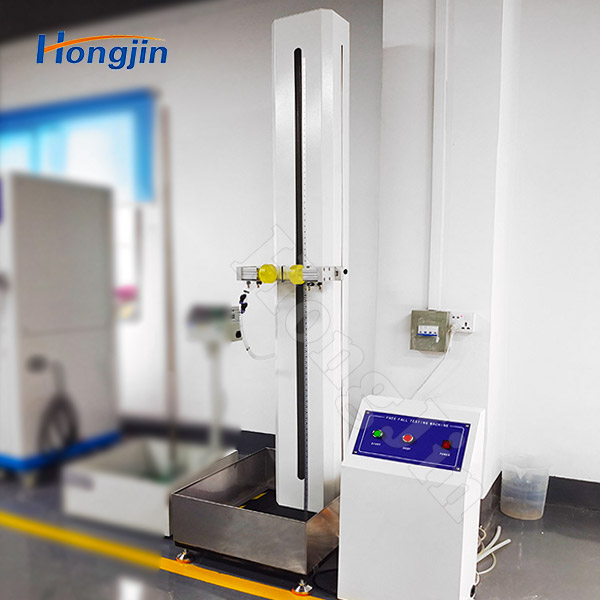

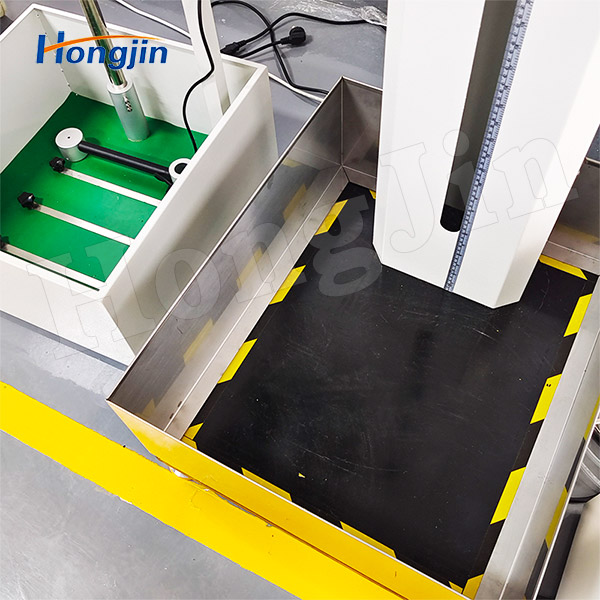

Actual Product Photos:
