HONGJIN
Application Scope:
The Battery Seawater Immersion Tester is a specialized device used to evaluate the tolerance of battery systems in seawater environments. It is widely applied in battery manufacturing, automotive electronics, shipbuilding, and marine equipment development.
Product Overview:
Its core function is to simulate real-life seawater immersion scenarios. By controlling parameters such as immersion time, seawater concentration, temperature, and pressure, it tests the battery’s sealing, corrosion resistance, circuit stability, and risks such as thermal runaway, providing data support for the product’s safety and reliability.
Experimental Principle:
The Battery Seawater Immersion Tester typically consists of a test chamber, circulation system, environmental control module, and data acquisition system. The test chamber is made of corrosion-resistant materials to withstand long-term seawater exposure; the circulation system simulates dynamic water flow to make testing conditions closer to real ocean environments; the environmental control module adjusts the temperature, salinity (typically 0%–5% salt concentration), and immersion depth in the test chamber; the data acquisition system monitors battery voltage, current, temperature, and leakage in real time, transmitting data to an analysis platform via sensors.

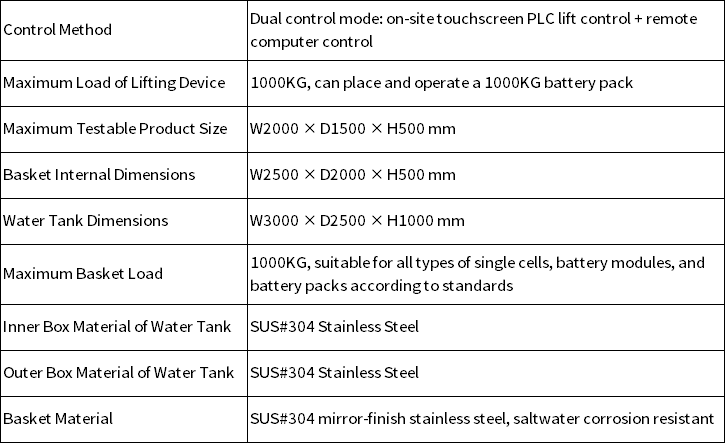

Product Parameters:

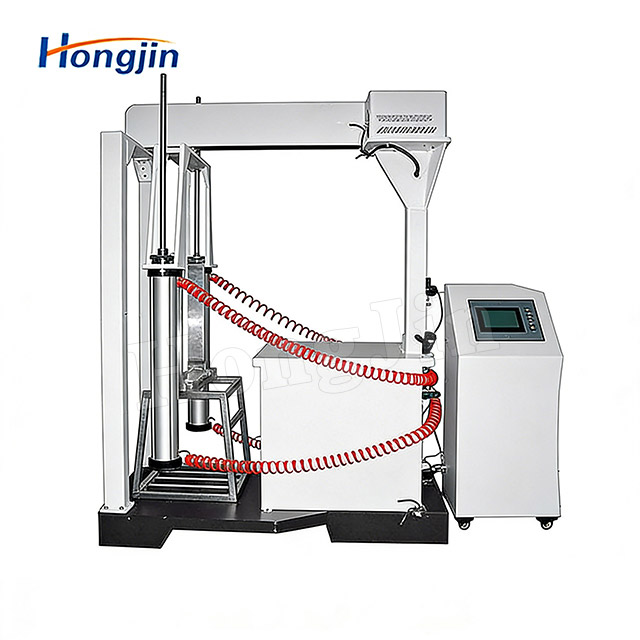

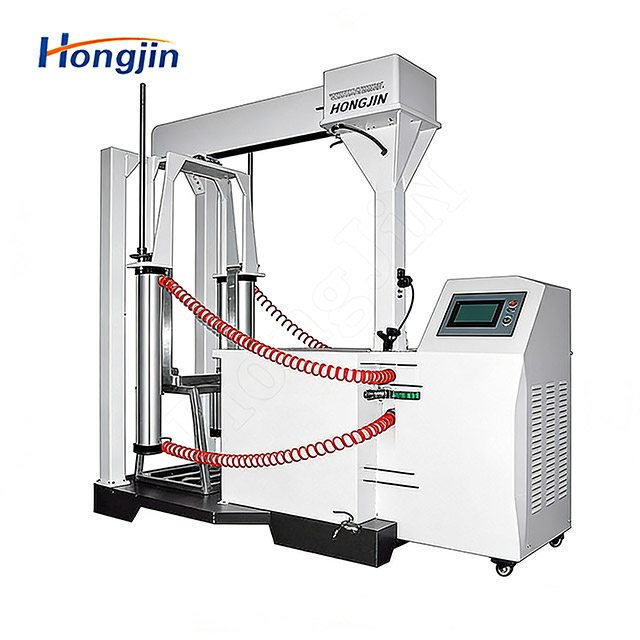

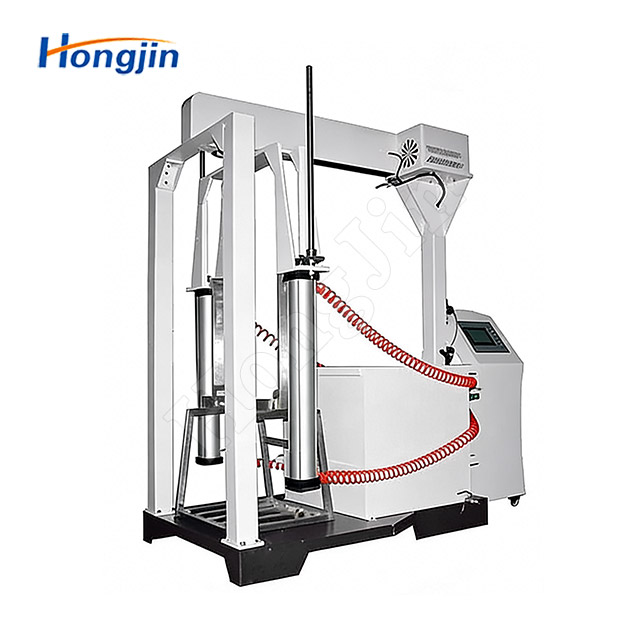

Actual Product Photos:
Company Profile:
