HONGJIN
Scope of Application:
This equipment is primarily used for conducting high-impact acceleration tests on specimens to evaluate their ability to withstand impact damage. It is commonly used for environmental testing of electronic components, printed circuit boards, batteries, and similar products. The test system complies with the impact testing requirements outlined in the "Basic Environmental Testing Specifications for Electrical and Electronic Products: Impact Test Method" (EA), IEC 68-2-27: Test Ea: Impact, and MIL-STD-202F standards.
Device Principle:
The impact test table surface size is customizable, and its structure is carefully designed after finite element optimization analysis. The design ensures high structural strength and high-frequency response. With high-acceleration impact testing, the system can achieve an acceleration duration of 0.5 ms. The half-sine waveform of the impact complies with test standards. The system includes an anti-secondary impact device, and the table is equipped with an efficient vibration damping system. The impact height is digitally set and automatically executed.

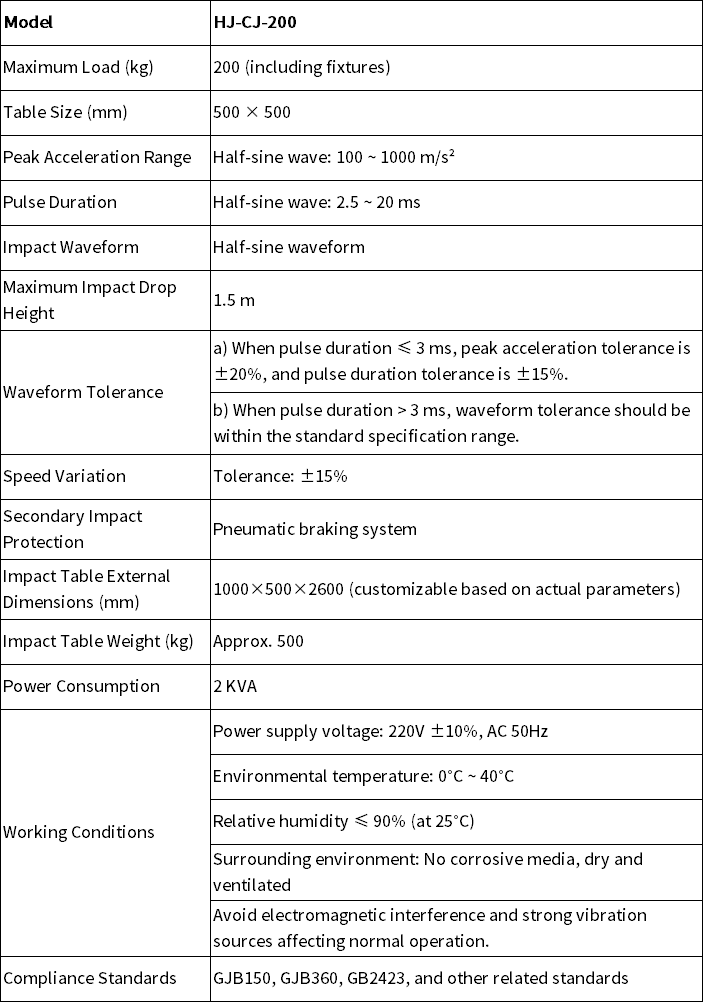

Product Parameters:

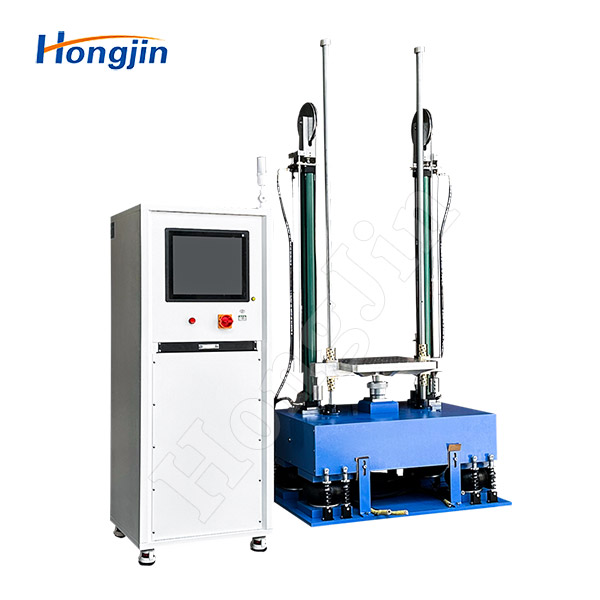

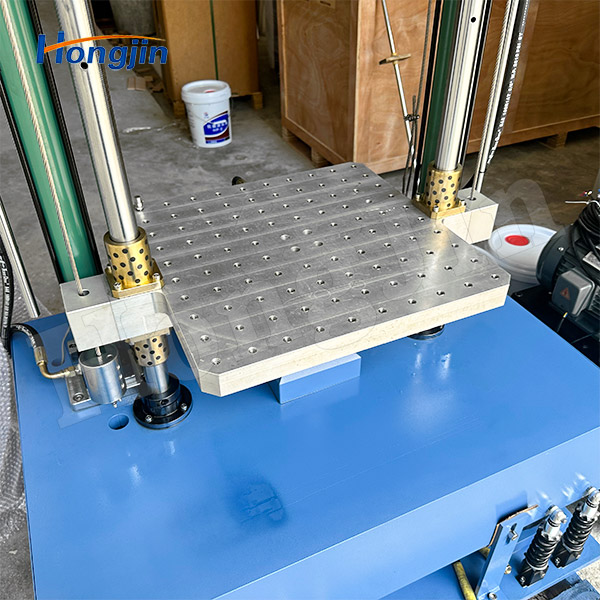

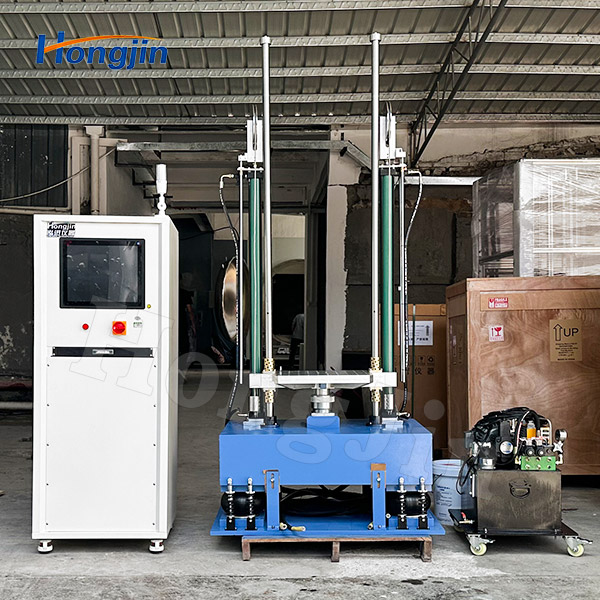

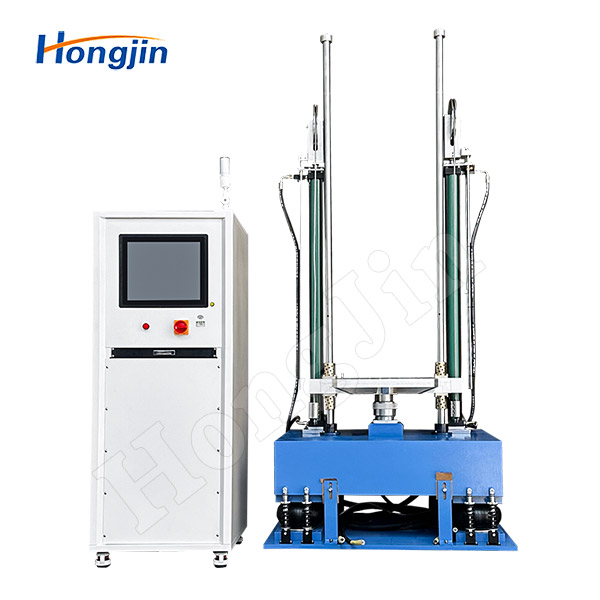

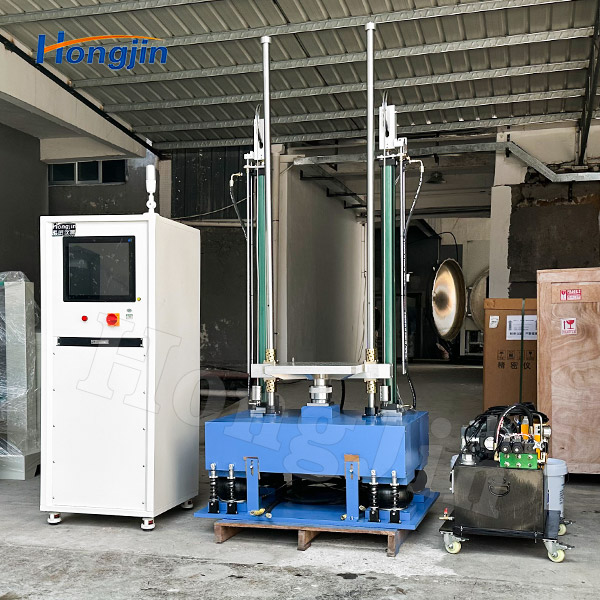

Actual Product Photos:
Company Profile:
