Application Range:
This machine is used to measure and determine the impact resistance of products or packaging, assessing the reliability of functionality and the integrity of the structure under impact environments. It can perform conventional impact tests with waveforms such as half-sine, post-peak sawtooth, trapezoidal waves, etc., to simulate the shock waves and energy that products encounter in real environments. This helps to improve the system or optimize product packaging structures. The impact test parameters include a peak acceleration of 5000-50000m/s² and an acceleration duration of 0.2-1ms. Based on the test results, you can assess your product's impact resistance and its suitability for use in various environments.
Product Features:

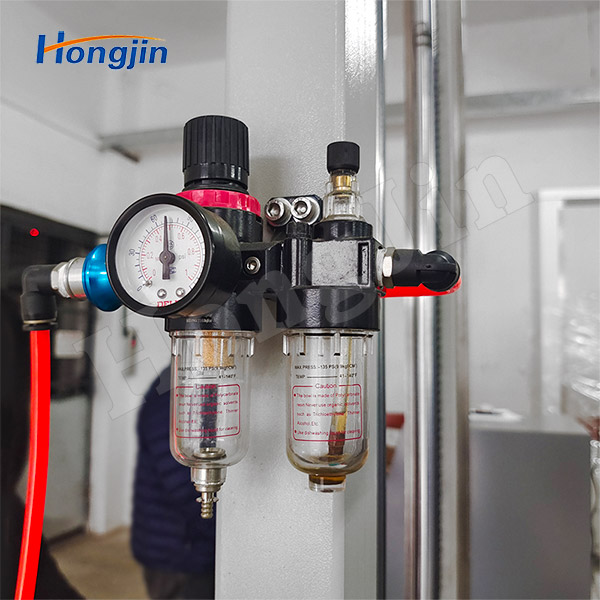

1.Low-Pressure Cylinders: Both the thrust and braking forces are powered by low-pressure cylinders, ensuring safety, reliability, and easy maintenance.
2.Dual Air Pressure Braking Mechanisms: Two air pressure braking systems work simultaneously, ensuring reliable locking.
3.Cylinder or Sectional Spring Drive: The impact overload value is controlled by adjusting the air pressure, using either a cylinder or sectional spring drive.

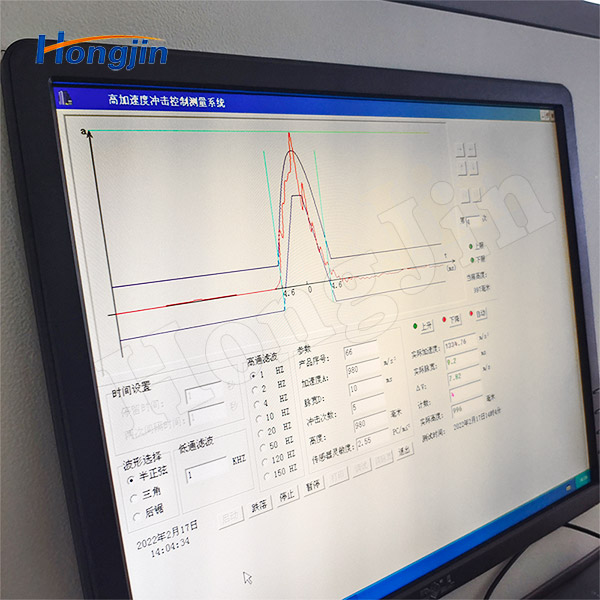

4.Digital Control: Once the height is set, the computer automatically controls the platform's lift height with high accuracy and good impact repeatability.
5.Special Composite Surface: High-performance, custom composite surfaces with built-in waveform amplifiers for ease of use and stable performance.
6.Compliant with IEC, MII, GJB, JIS, ASTM, and other international and domestic standards for shock wave testing.

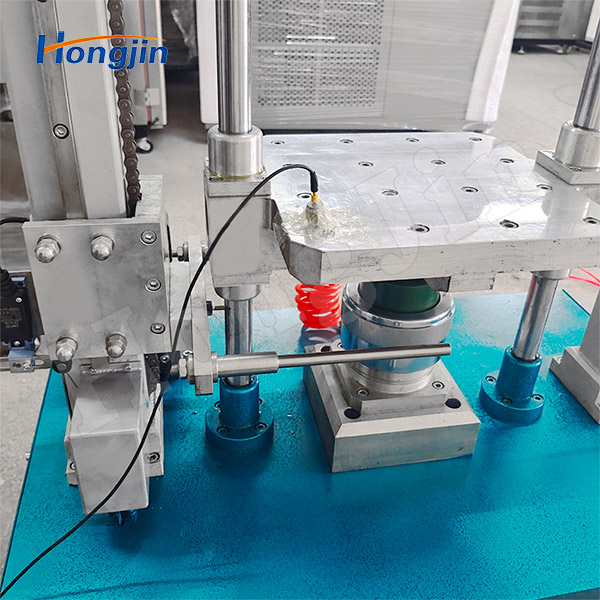

7.High-Performance Cast Aluminum Platform: The cast aluminum platform has high strength, hardness, and a high first-order resonance frequency, producing low noise with no spurious signals.

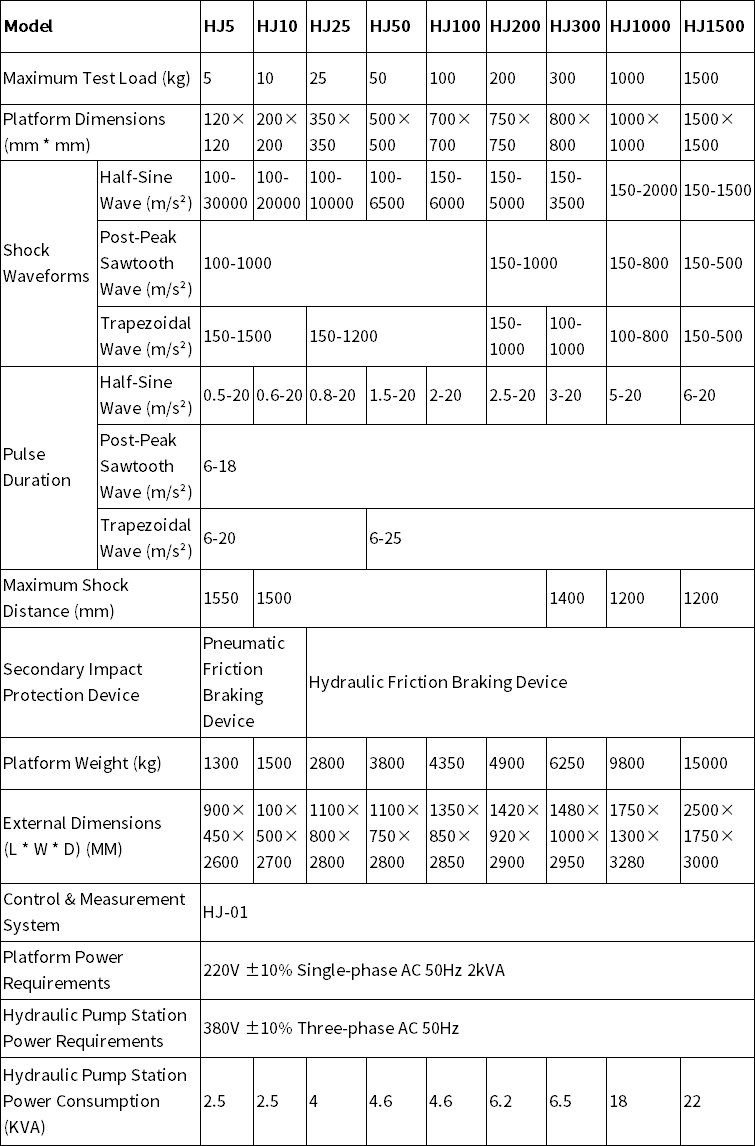

Product Parameters:

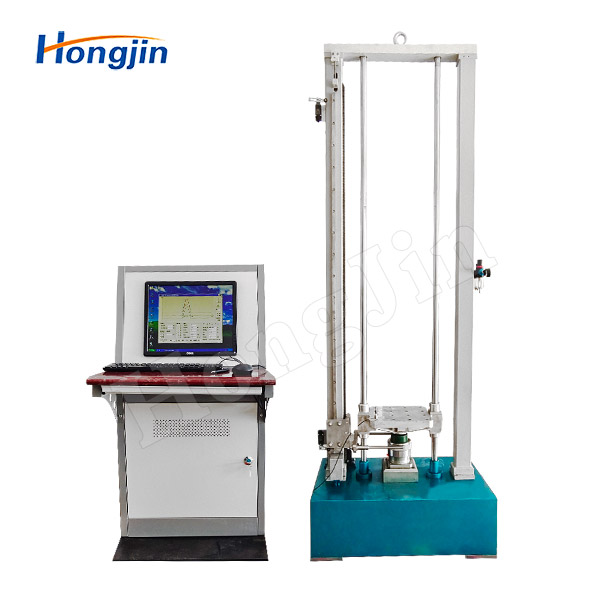

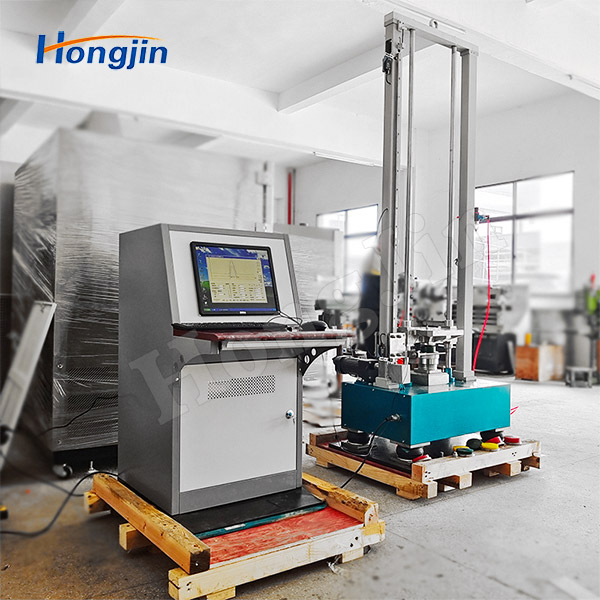

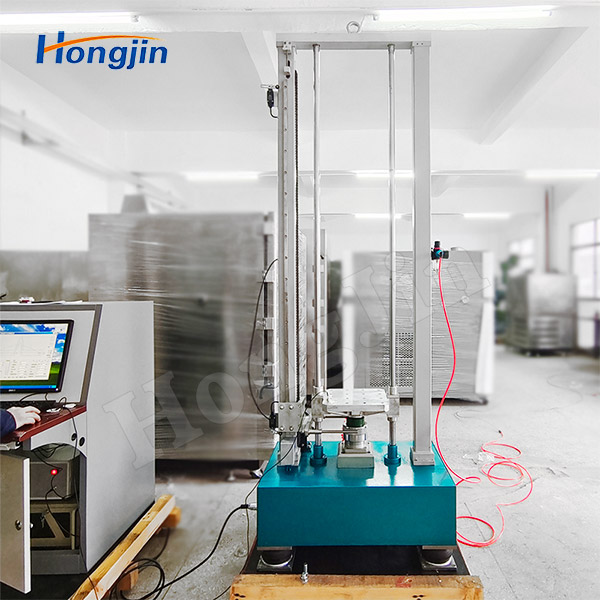

Actual Product Photos:
Company Profile:
