Product Introduction:
The electrodynamic vibration series products manufactured by our company adopt advanced modern technologies and specialized processes, including dual magnetic circuit structure, self-generated moving coil frame, air suspension support, linear bearing and roller guidance, and trunnion vibration isolation.The system is capable of independently performing three-axis sinusoidal vibration tests and broadband random vibration tests, as well as classic pulse tests (half-sine, trapezoidal, and terminal-peak sawtooth) and shock response spectrum (SRS) tests.An environmental chamber can be configured to enable comprehensive multi-environment testing that integrates mechanical and climatic conditions.
Product Features:
1.A carefully designed armature coil structure provides a high first-order axial resonance frequency.
2.Dual magnetic circuit design with low magnetic leakage and a compact, well-balanced structure. A composite guidance mechanism combining rocker rollers and imported linear bearings delivers high guiding stiffness and strong off-axis load capacity.
3.Trunnion vibration isolation eliminates the need for a dedicated foundation, making installation and relocation convenient.
4.Advanced armature coil winding technology ensures high reliability of the moving coil.

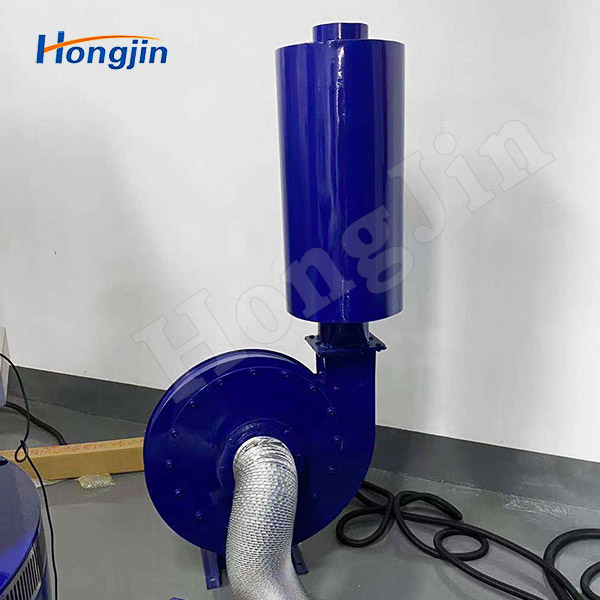

5.A newly designed airflow channel enhances cooling efficiency.
6.Load-bearing air springs with high static stiffness and low dynamic stiffness increase the payload capacity of the vibration table and significantly improve low-frequency performance.

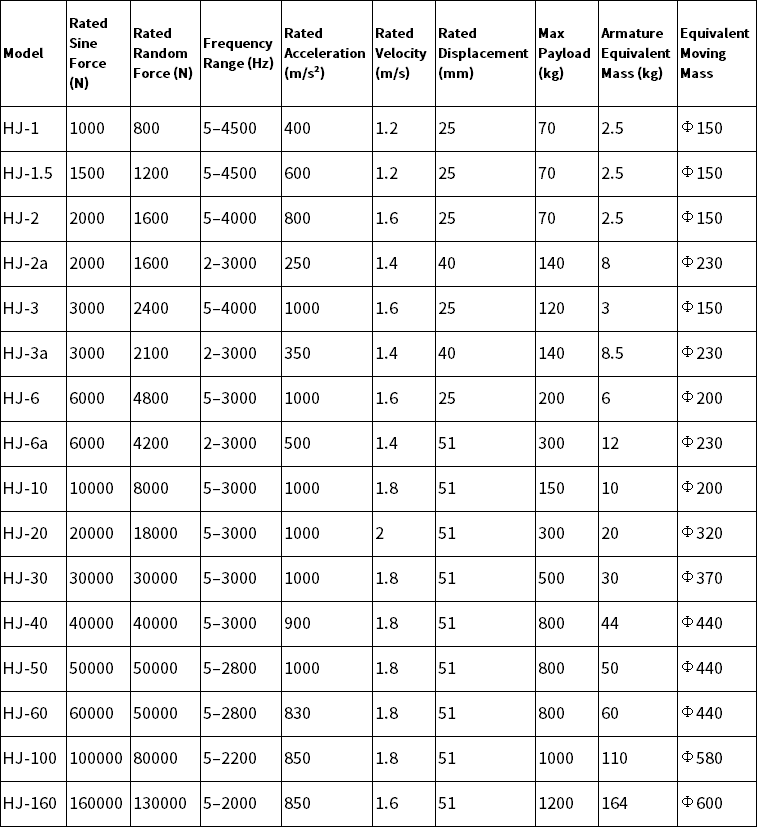

Product Parameters:

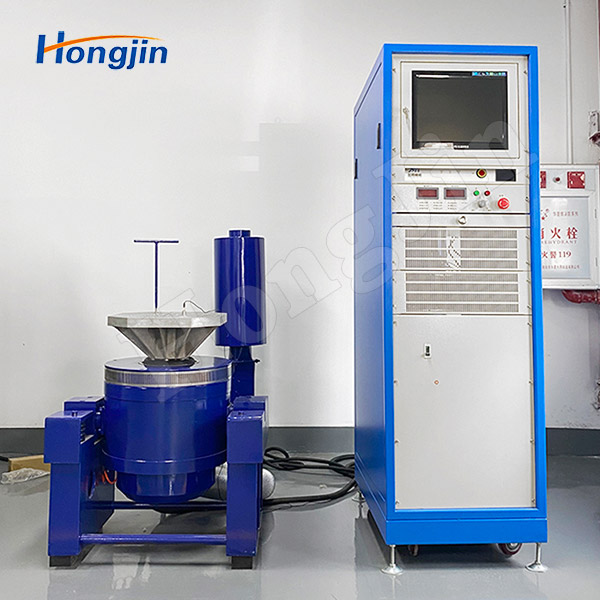

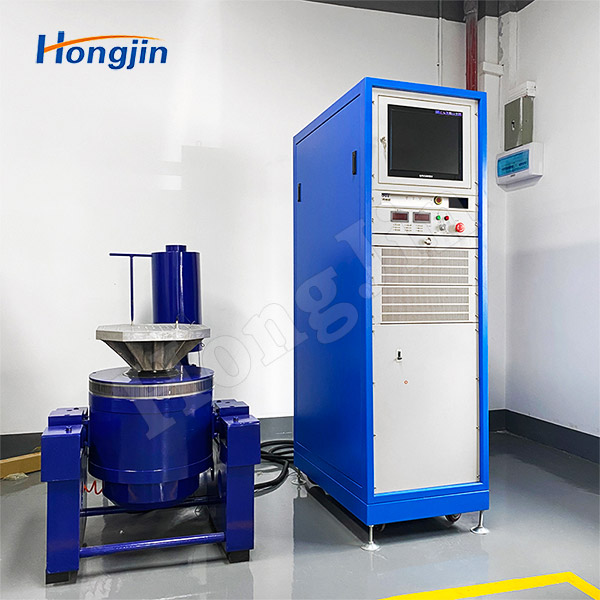

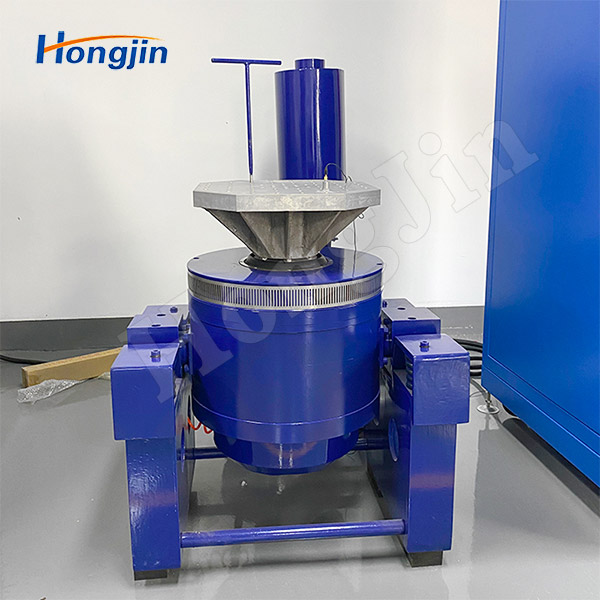

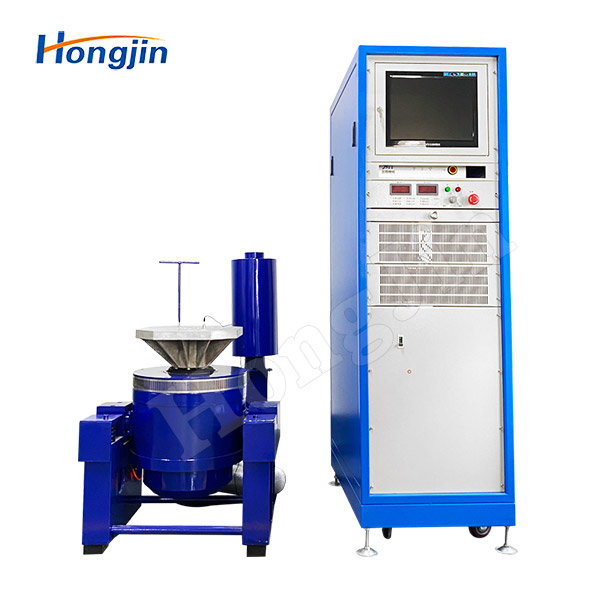

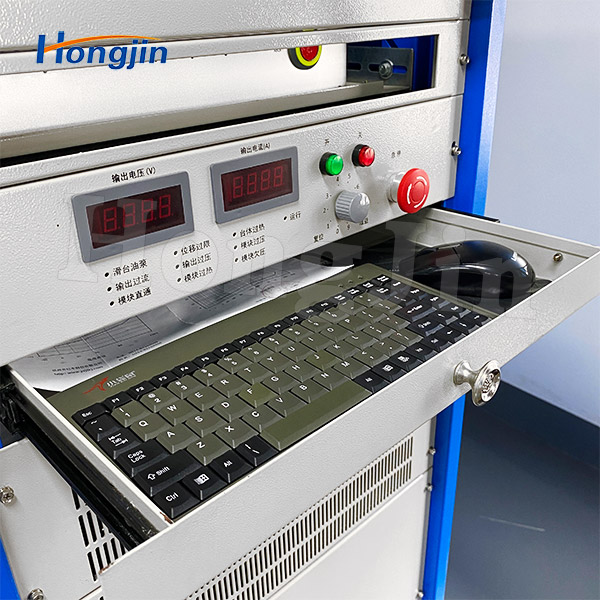

Actual Product Photos:
