Scope of Application:
This tester consists of a test platform, motor, digital inclinometer, braking device, and control cabinet. It features high control accuracy and adopts a mechanical structure with a single lead-screw linkage mechanism, motor-driven control, and digital angle display.The machine is used to test the slip resistance of corrugated cartons. During stacking and transportation of beer cartons or other packaging boxes, insufficient surface friction may easily cause slipping or collapse. Through testing with this machine, packaging designs can be evaluated and improved to enhance anti-slip performance.
Product Features:
1.Aluminum profile frame construction, providing a sturdy structure with an attractive appearance.
2.Driven by an economical gear reduction motor combined with a rectangular lead screw, lightweight bearing housings, dual hardened shaft guides, and synchronous pulley transmission, ensuring balanced operation, strong driving force, and low noise.
3.Digital angle display with convenient upper and lower angle limit settings, allowing the test platform to be easily leveled for specimen placement or tilted during testing.
4.The test platform is equipped with an anti-slip frame featuring an adjustable carton sliding holder and a slip-travel limit switch, preventing the carton from falling off during testing and accurately determining the angle at which sliding occurs.

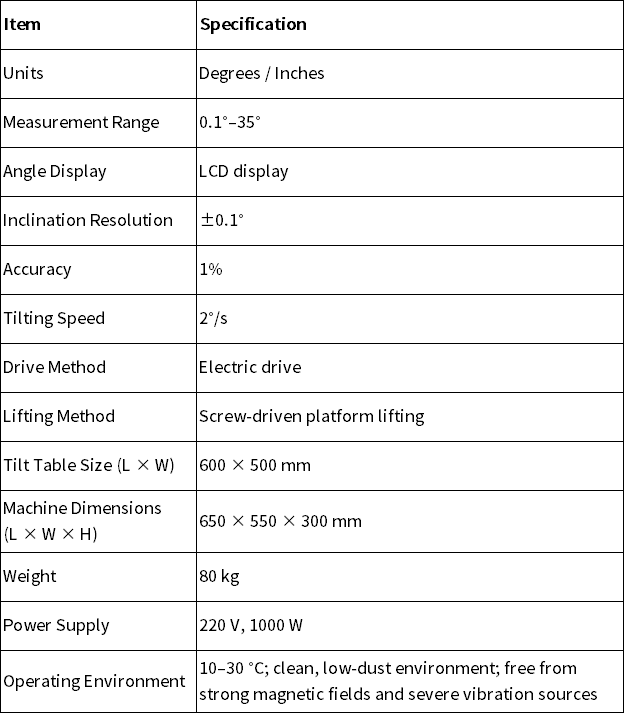

Product Parameters:

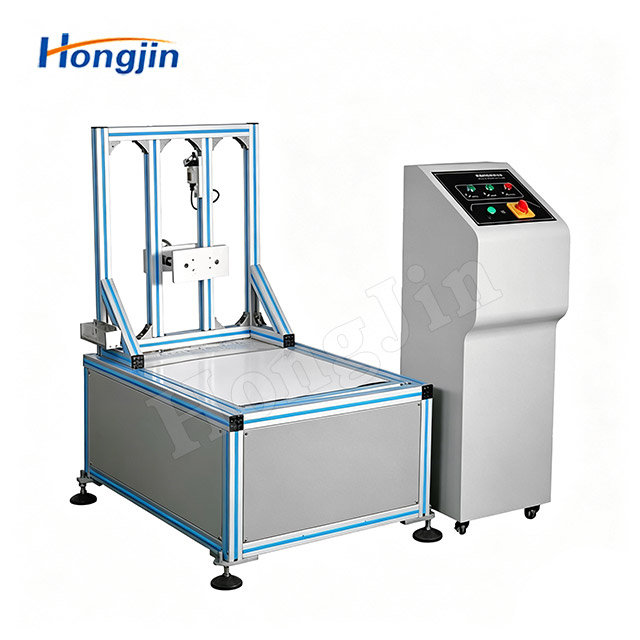

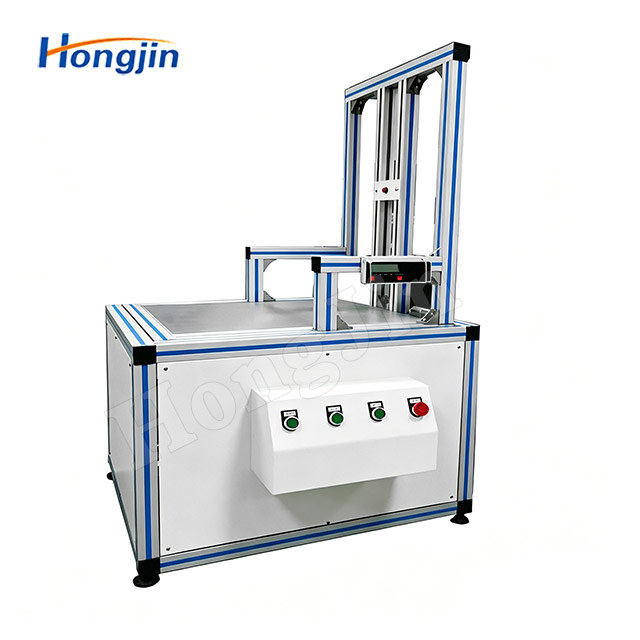

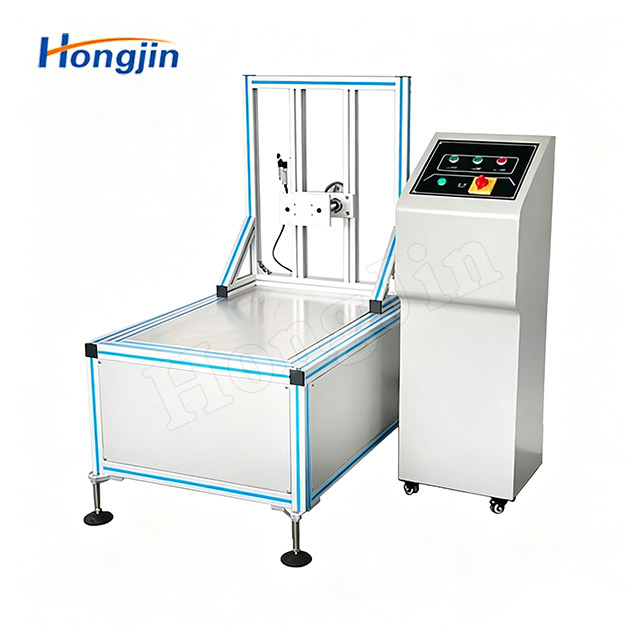

Actual Product Photos
