scope of application

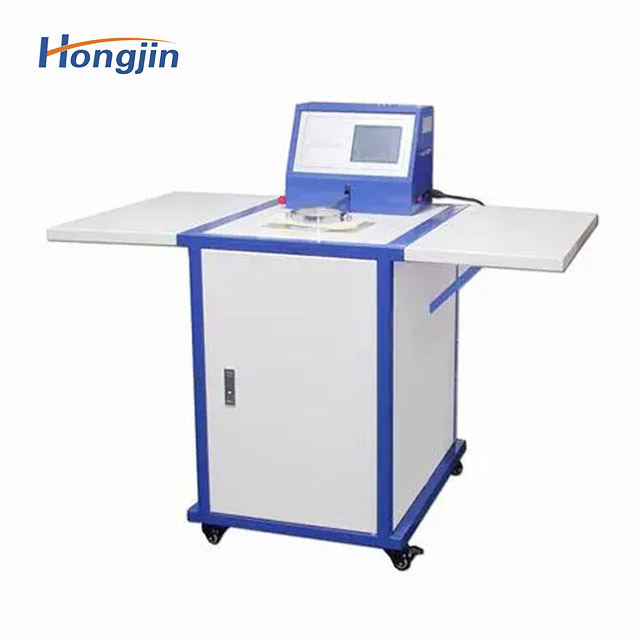

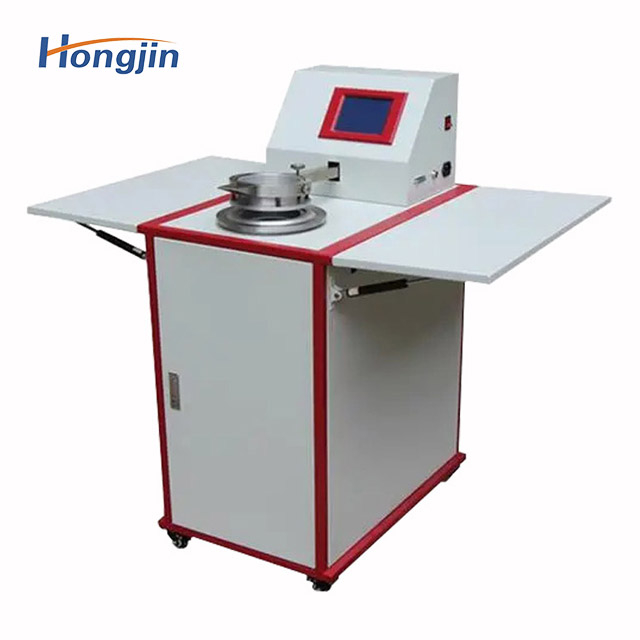

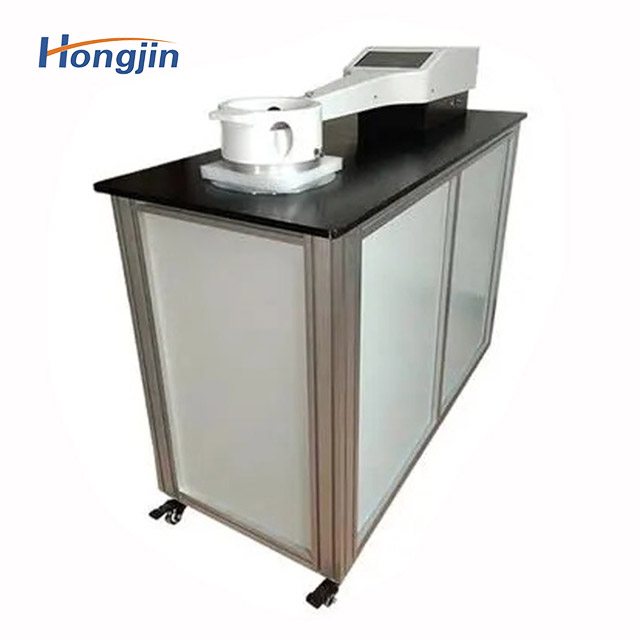

Suitable for testing the breathability of various textiles, industrial fabrics and non-woven products, filters, industrial filter cloth (paper), microporous filter membrane, paper blankets, nonwoven fabrics, coated fabrics and other breathable leather, plastic and other chemical products.
Product parameter table
| Sample pressure difference range: | 1~4000Pa |
| Measurable air permeability: | 0.1~12000mm/s |
| Measurement error: | ≤±2% |
| Fabric thickness can be measured: | ≤15mm |
| Test area: | 5cm2、20cm2、50cm2、100cm2、Φ50mm (≈19.6cm2)、Ф70mm (≈38.5cm2) |
| Nozzle parameters: | Nama kod 0,1,2,3,4,5,6,7,8,9,10 |
| Diameter : | Ф(mm) 0.8,1.2,2,3,4,6,8,10,12,16,20 |
| power supply: | AC220V50Hz,2KW |
| Appearance: | 1070×670×1080mm |
| Weight: | 75kg |
