Scope of Application:
The electronic dynamic testing machine is suitable for testing the dynamic and static mechanical properties of various metals, non-metals, composite materials, and lithium battery cell poles. It can conduct tensile, compression, bending, dynamic and static stiffness, and low-cycle fatigue tests under sine, triangle, square, trapezoidal, random, and combined waveforms.
Product Features:
1.Electronic Servo and DDR Torque Motor Drive Technology: High efficiency, long lifespan, low noise, and maintenance-free advantages.
2.Horizontal Floor Structure" for the Test Machine: Provides good dynamic stability, easy and safe loading/unloading of test samples.
3.Parameter Settings for Different Tests: Torque, frequency, angle, and other parameters can be set and displayed through the computer screen. The progress of the test can be called and queried at any time.
4.User Interface: The test software operates under the Windows system, allowing for test setup, operational control, data collection, and processing. The simple and reliable human-machine interface and data processing interface meet various user experimental requirements, displaying and printing test results.
5.Open Data Structure: Both result parameters and process data can be randomly called by users, making it very convenient for research and education.
6.Multiple Protection Measures: Automatically stops the test and alarms in the event of sample destruction, tool breakage, or equipment failure. During automatic control tests, the machine features overload, over-angle, over-temperature, electronic limit protection, overcurrent, overvoltage, and other electrical protections, along with software overload and mechanical forced safety limit protection.

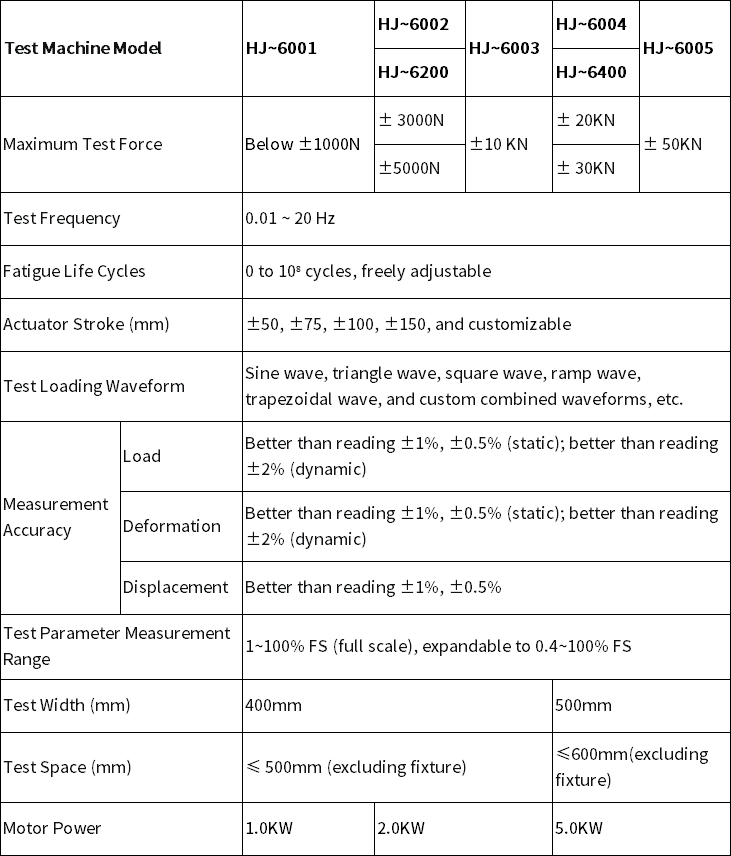

Product Parameters:

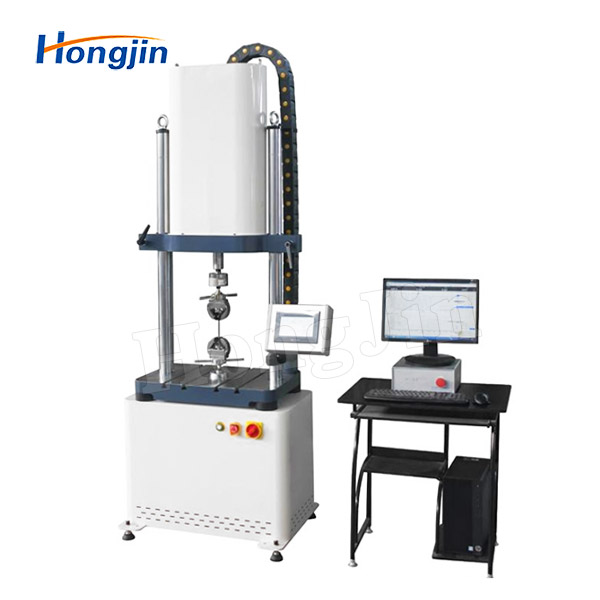

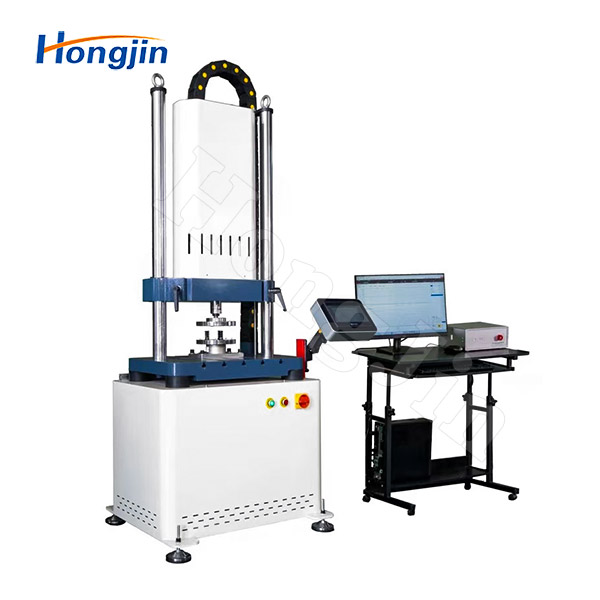

Actual Product Photos:
Company Profile:
