Scope of Application:
The spring mechanical properties tester is mainly used for testing the mechanical characteristics of lockable gas springs, specifically for measuring their maximum compression force and minimum compression force.
Product Features:
(I) Hardware Features
1.Equipped with a Panasonic servo motor system combined with precision electric cylinder multi-axis positioning technology, offering displacement accuracy of Grade 0.5 and smooth, stable transmission.
2.Supports customization of 2 to 8 working stations; stations can operate simultaneously or perform tests independently.
3.The test module can be manually adjusted up and down, making it suitable for samples with different stroke lengths.
4.Force sensors with different capacity ranges are available as options, used in combination with corresponding fixtures to meet testing requirements for samples of various sizes and specifications.
(II) Software Features
1.PLC-based online control is adopted, effectively preventing interference from circuit boards, servo drives, and other components, ensuring reliable test data.
2.The controller uses the company’s self-developed force testing software, with selectable languages including English and Chinese, providing intuitive and user-friendly operation.
3.Automatic shutdown after test completion, with support for long-term standalone operation.
4.Equipped with power-off memory, fault detection, limit protection, and overload protection functions to ensure safer operation.

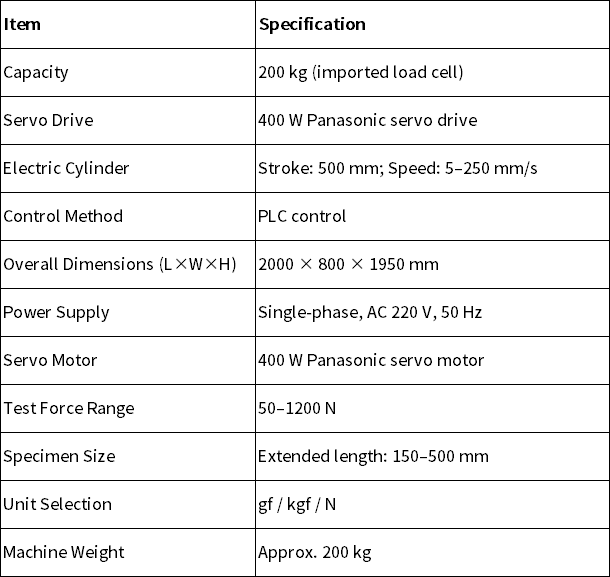

Product Parameters:

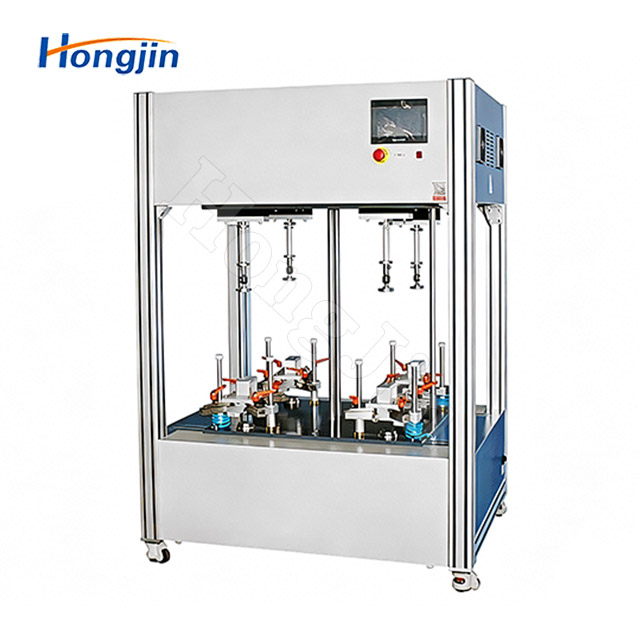

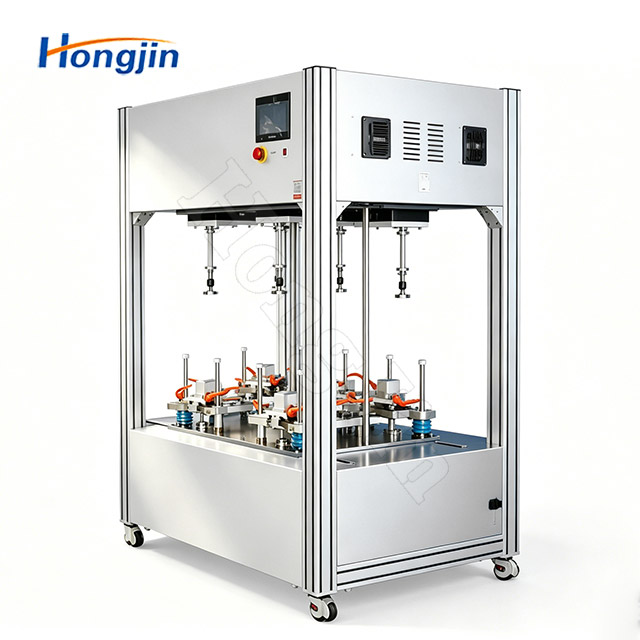

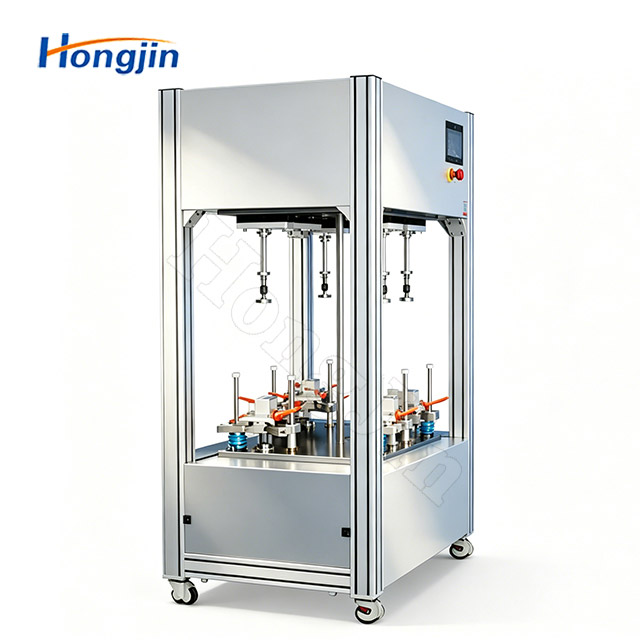

Actual Product Photos:
