Scope of Application:
Used for three-directional vibration amplitude testing of various rackets (badminton rackets, tennis rackets, squash rackets, racket shafts, etc.).
Product Features:
1.Ues a pneumatic cylinder as the racket release mechanism.
2.Suitable for various rackets (badminton rackets, tennis rackets, squash rackets, racket shafts, etc.) and clubs (such as golf clubs).
3.The club/racket holding fixture can be re-adjusted in size, height, and distance from the release cylinder according to different clubs or rackets.
4.Control mode: computer-controlled operation.
5.Sensor: one XYZ three-axis sensor.
6.One set of data acquisition system.
7.Supplied with one branded computer and one printer.
8.Software functions: after releasing the racket from a fixed vertical elastic force distance, the vibration amplitudes of the racket tip on the X, Y, and Z axes are displayed as curves on the computer, along with the maximum vibration amplitude of each axis. The maximum configurable data acquisition time is 10 seconds. Test reports can be generated, exported, and saved.
9.The sensor is clamped to the end of the racket, with a weight of approximately 30 g.

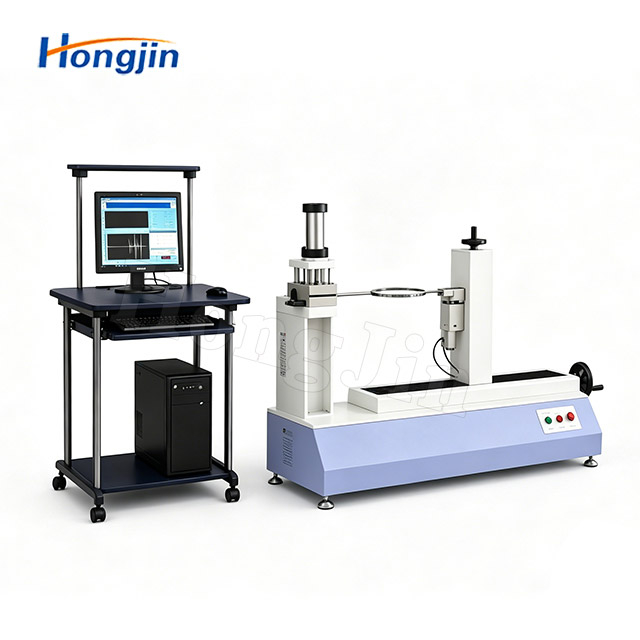

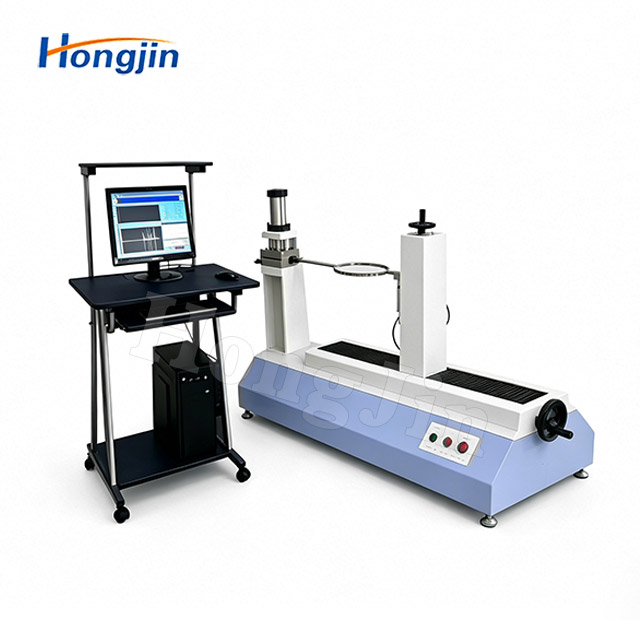

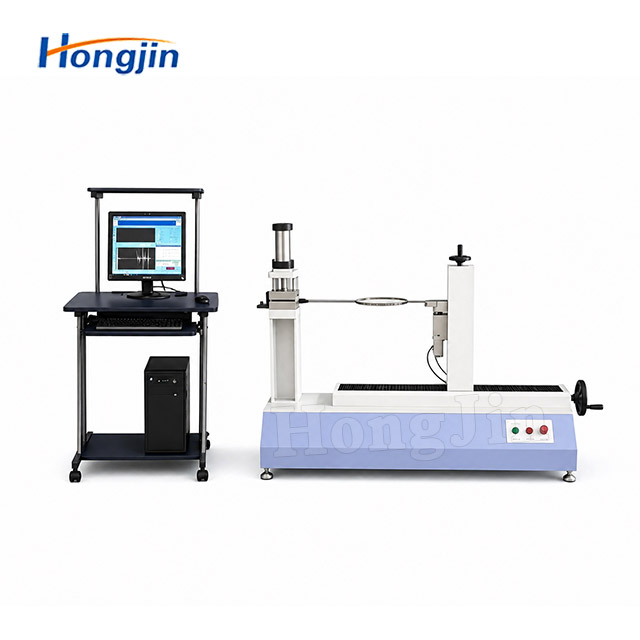

Actual Product Photos:
