HONGJIN
Scope of Application:
This testing machine is suitable for evaluating the dynamic impact resistance of basketballs, footballs, volleyballs, and handballs. It uses two high-speed rotating drum wheels positioned opposite each other. Under the combined action of friction and compression, the test specimen is propelled at high speed to impact a rebound plate. The rebound plate then returns the specimen into a receiving funnel, from which it is guided by gravity back to the launching drum wheels to be projected again.After a preset number of test cycles, the specimen is inspected for changes in internal pressure and for any defects such as rupture, internal explosion, peeling, debonding, yarn breakage, or deformation.

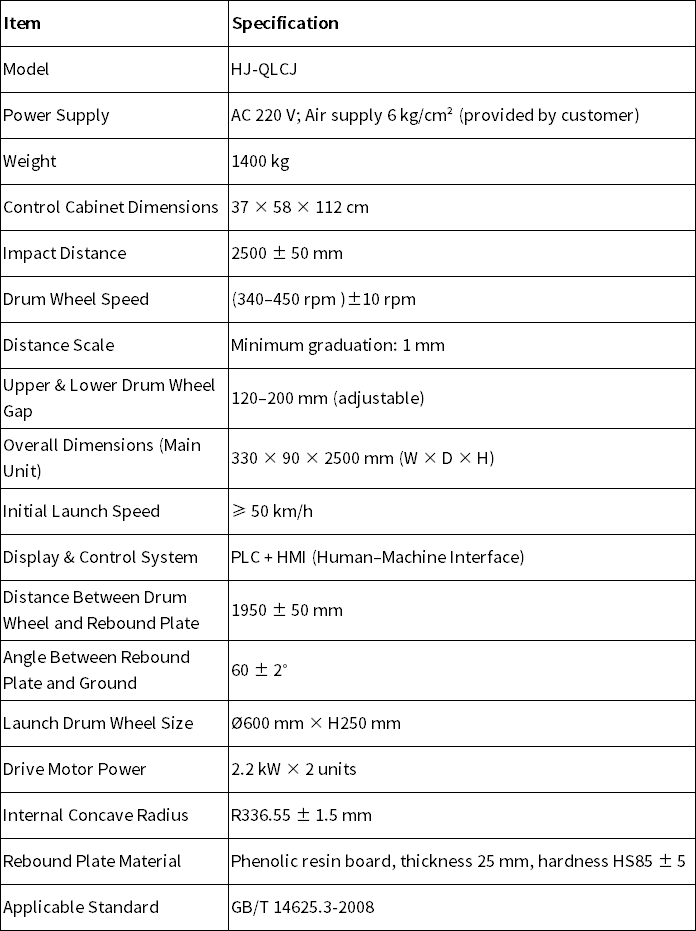

Product Parameters:

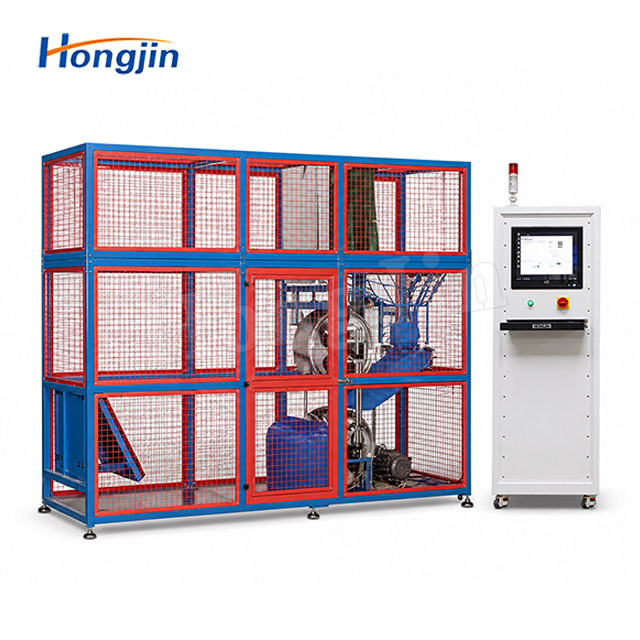

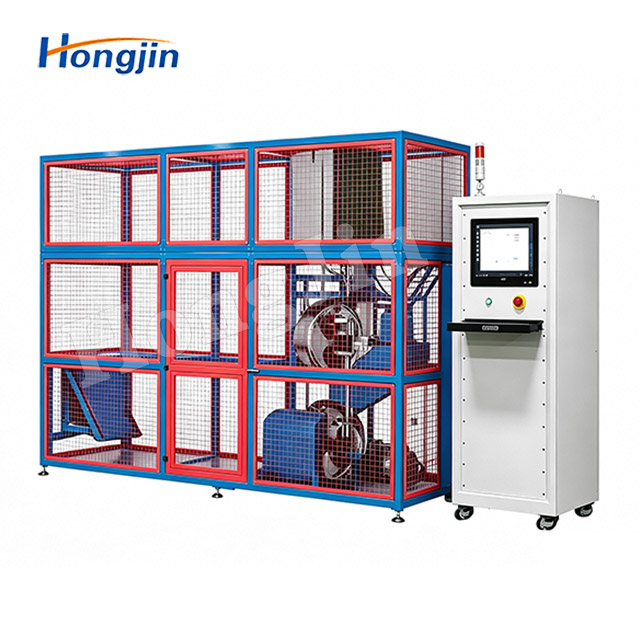

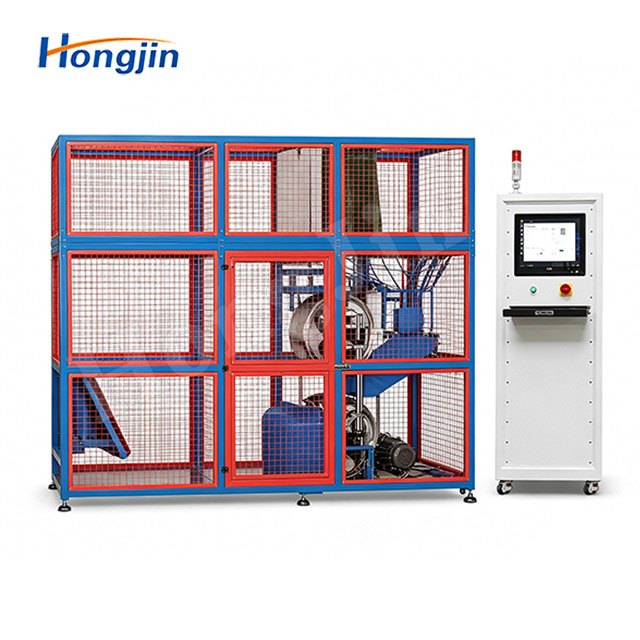

Actual Product Photos:

Company Profile:
