Application Range:
This machine is suitable for testing materials such as wires, leather, plastics, rubber, and fabrics. After being evenly heated at specified temperature and time, it maintains fresh air inside the chamber to observe the aging properties of samples. These include yellowing resistance, adhesive peeling, shrinkage, elongation, residual rate, and other performance indicators, which are used to determine the aging characteristics. For wire and cable materials, the machine is specially designed with an air exchange adjustment system to ensure the air inside the chamber remains fresh during heating.
Product Introduction:

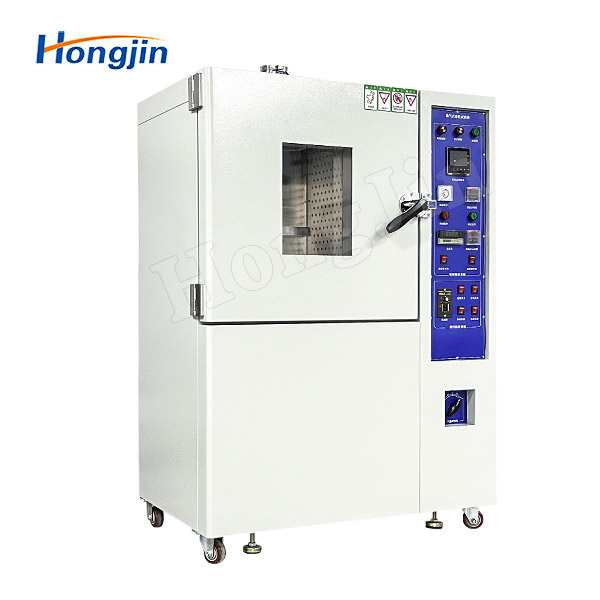

This is a specialized device used to evaluate the aging of materials in air under high temperature and atmospheric pressure conditions.
Product Features:
1. Simulating High Temperature Environment: The device can simulate high temperature conditions and accelerate aging through the oxidation of incoming air. It is suitable for testing the heat resistance of electrical insulation materials, electronic components, and plastic products. It evaluates their adaptability to storage and use under high temperature conditions.
2. Precise Temperature Control: The device features an automatic calculation function to immediately correct temperature fluctuations, ensuring more accurate and stable temperature control. The temperature controller uses imported digital touch buttons and a P.I.D microcomputer S.S.R temperature controller, coordinating the P.I.D + S.S.R system on the same channel to ensure accuracy and stability in temperature control.
3. Safety Performance: Safety is a key consideration during the design and manufacturing process. The device is equipped with over-temperature protection, overload protection, and leakage protection to ensure the safety and reliability of the testing process.
4. Humidity and Air Exchange Performance: In addition to temperature control, the device also has the ability to regulate humidity levels to simulate aging under different humidity conditions. It features a well-designed airflow system to ensure consistent air circulation inside the chamber, preventing uneven temperature and humidity. The air exchange system allows for the exchange of air inside and outside the chamber, maintaining fresh air inside.
5. Control System Performance: The device is typically equipped with an advanced control system capable of automatic control and monitoring of testing parameters. It offers various control modes and functions, such as temperature/humidity program control, alarm functions, data recording, and communication interfaces.

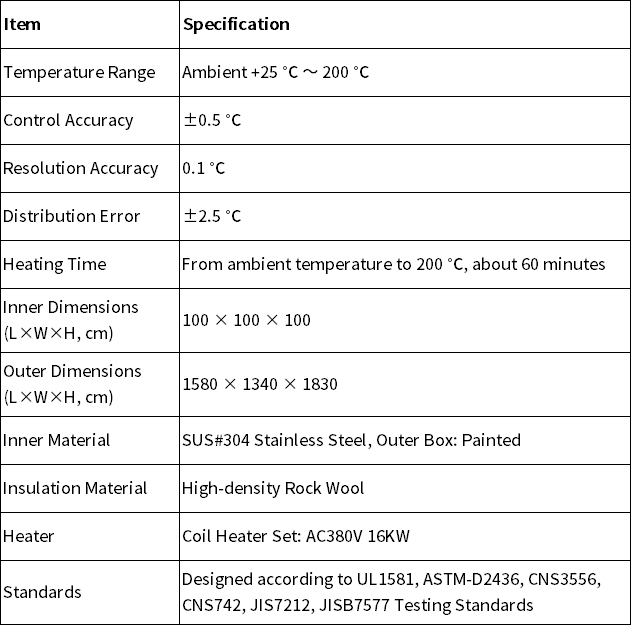

Product Parameters:

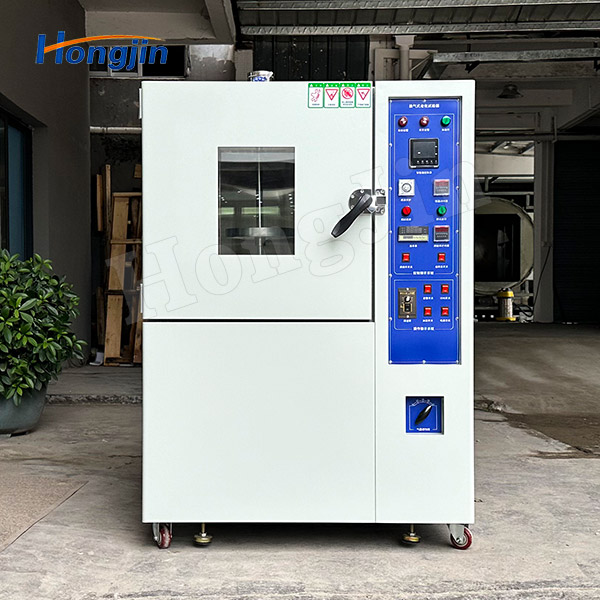

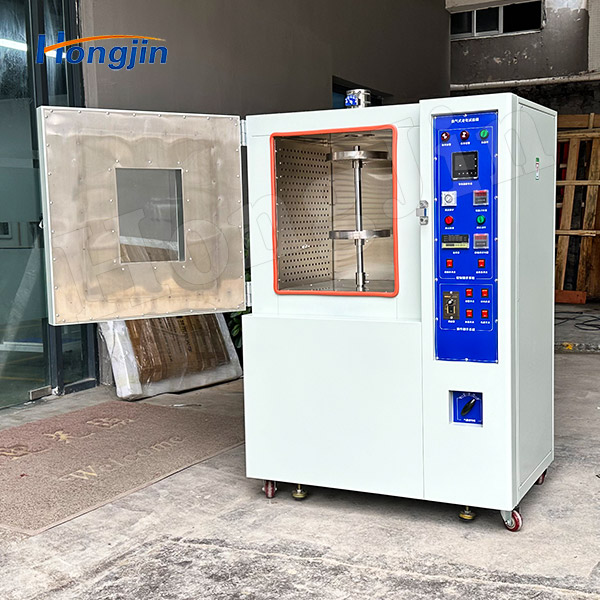

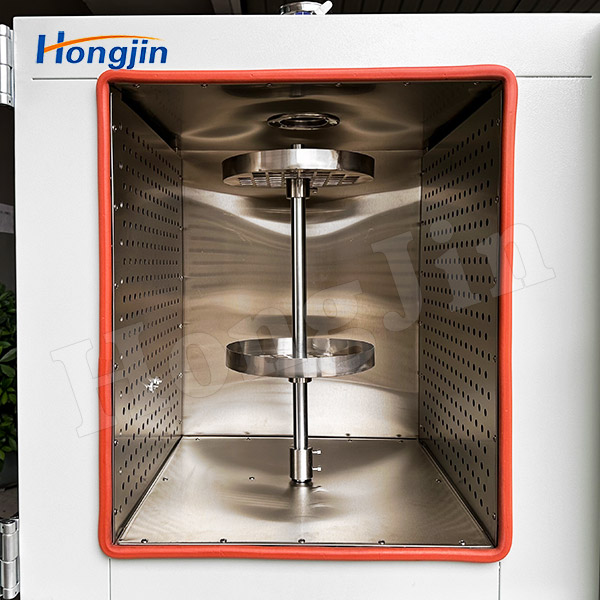

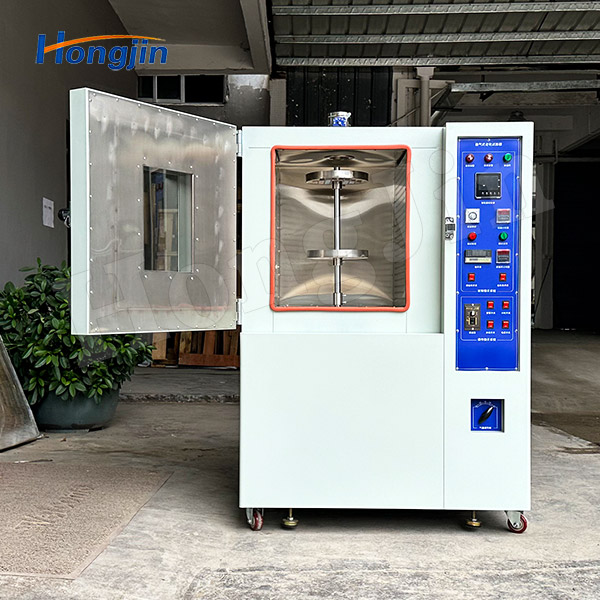

Actual Product Photos:
