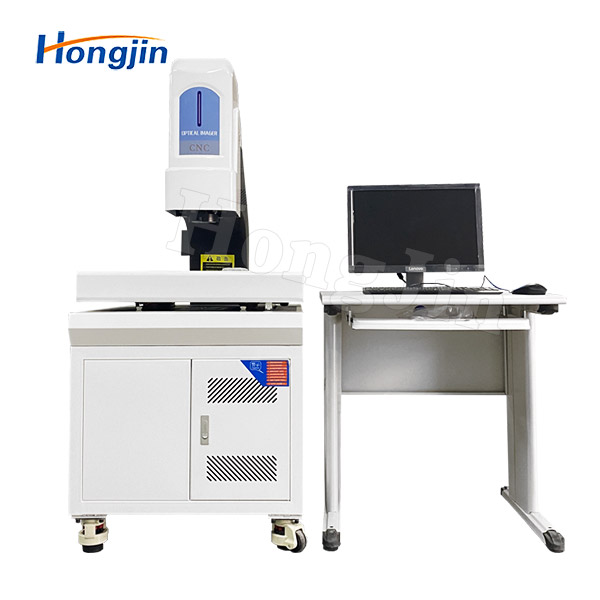

Automatic 2D Vision Measuring Instrument

Application Scope:

The 2D vision measuring instrument uses an optical microscope to magnify objects at high magnification, then transmits the images to a computer via a CCD camera system for measurement and analysis. The instrument can quickly read displacement values from the optical scale, and through software modules, instantly generate measurement results, while displaying graphics on the screen for operators to visually compare images and measurements, allowing intuitive identification of potential deviations. It features high accuracy, high speed, and ease of operation, and is widely used in mechanical manufacturing, electronics, precision components, scientific research, automotive industry, and other fields.

Product Features:

1.The base, column, and worktable are made of high-hardness aluminum alloy material with a high-precision granite rock base.

2.The surface undergoes high-strength anodized treatment, making it suitable for high-speed movement and ensuring long-term stable operation of the machine.

3.High-performance four-axis CNC full-closed-loop servo control system, stable at high-speed operation.

4.The three axes all use brand-name, non-threaded linear shaft drive technology, ensuring no wear, smooth and quiet operation, and precise positioning.

5.Advanced XYZ plane flatness and verticality precision calibration method to ensure true spatial accuracy. Coaxial optical lenses can be configured.

6.Inspect3D software features a user-friendly interface, simple operation, fast automatic focusing, automatic edge detection, and powerful programming and automatic measurement functions.

7.Equipped with powerful SPC statistical functions to greatly enhance management efficiency.

8.Reserved space for future upgrades (compatible with automated production lines).

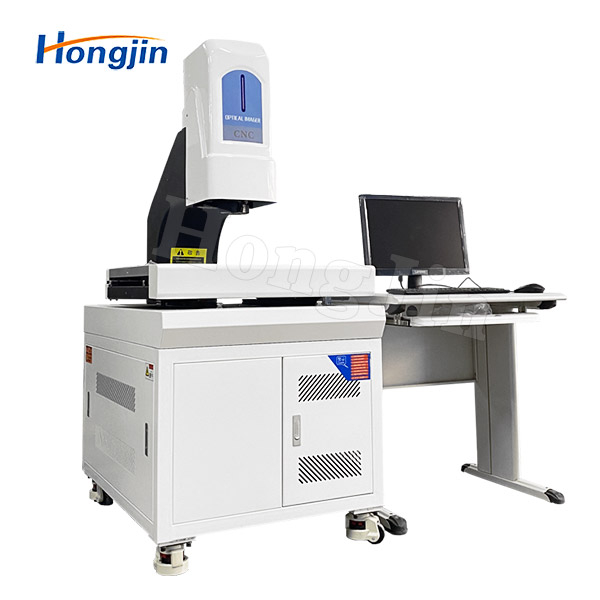

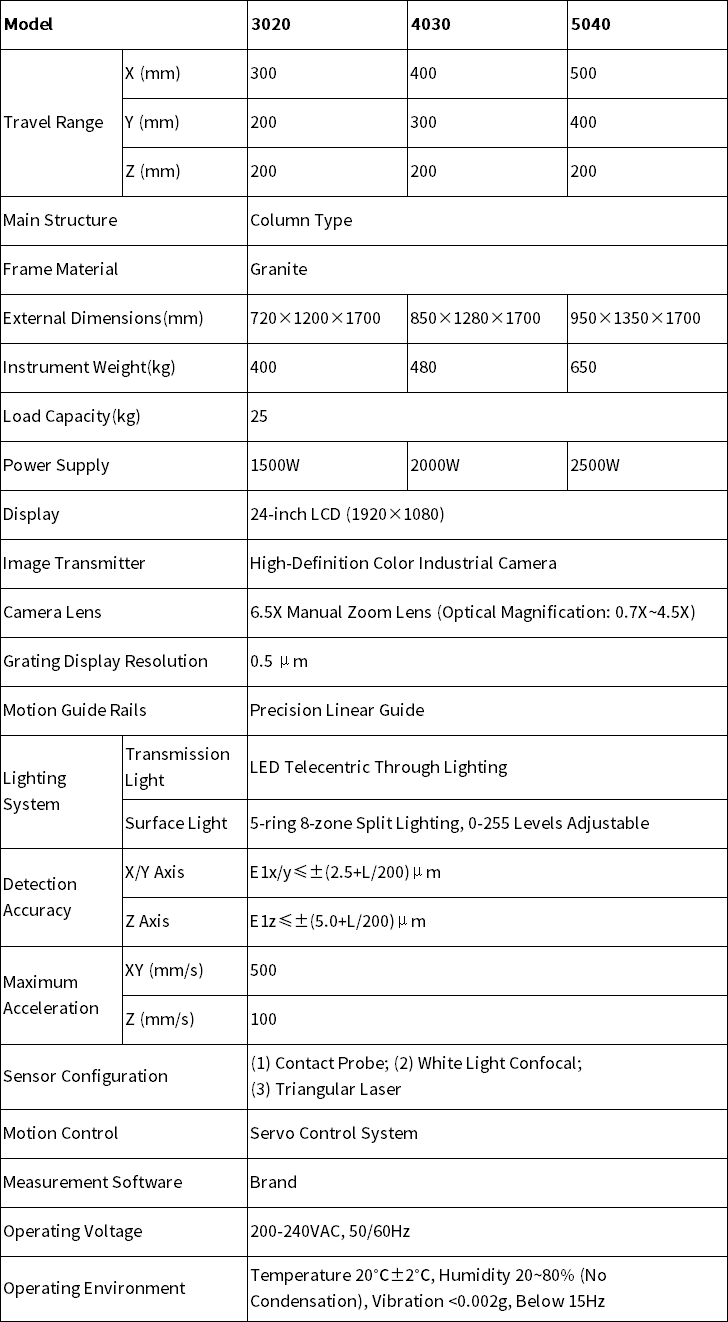

Product Parameters:

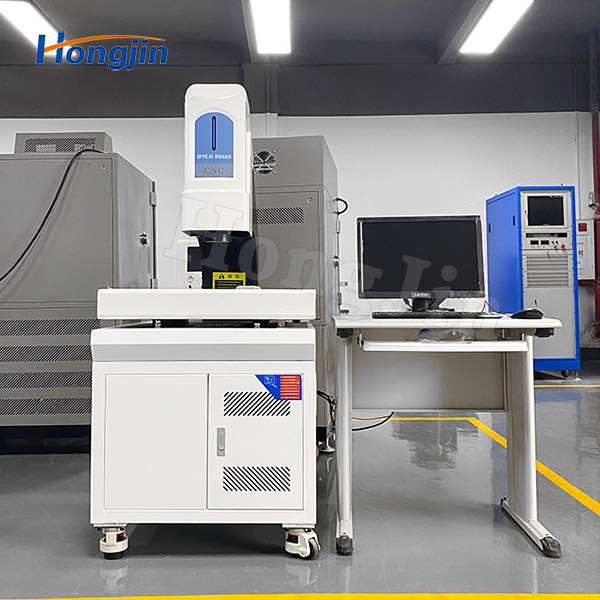

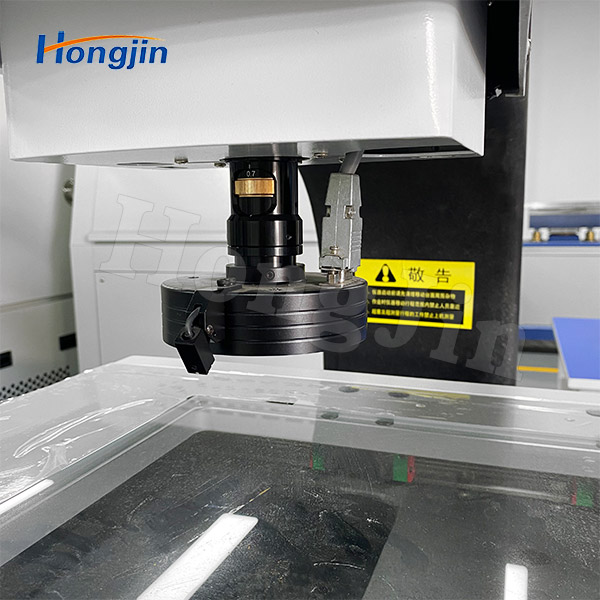

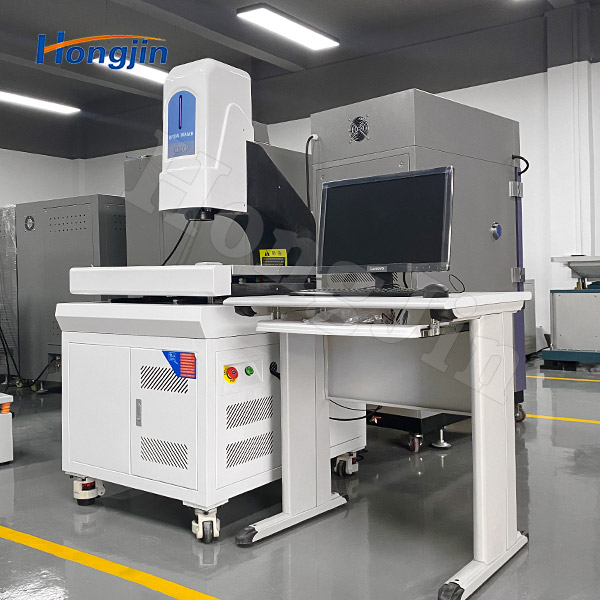

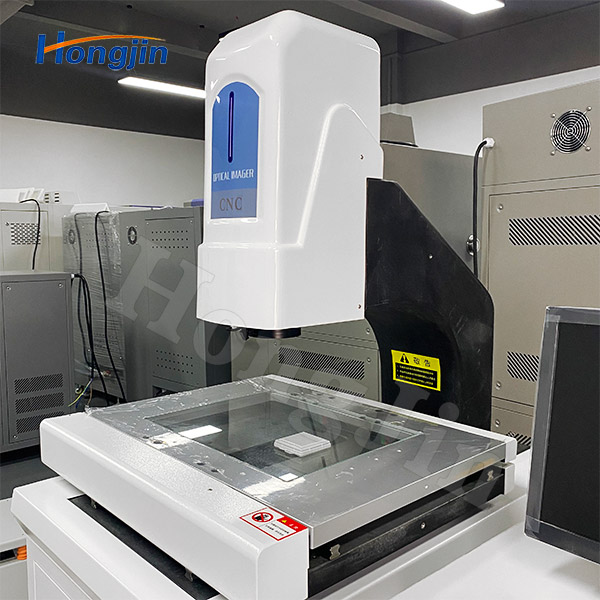

Actual Product Photos:

Company Profile:
