One-click Instant Measuring Instrument

Scope of Application:

Widely used for batch rapid measurement of small-sized products and components in industries such as machinery, electronics, molds, injection molding, hardware, rubber, low-voltage electrical appliances, magnetic materials, precision stamping, connectors, terminals, mobile phones, home appliances, printed circuit boards, medical devices, watches, tools, and more.

Product Features:

1.Efficient Measurement: Single or multiple products can be measured simultaneously within the field of view. Products can be placed randomly, and with just one click, the product dimensions are quickly output, revolutionizing traditional measurement methods.

2.Large Field of View with Dual-Side Telecentric Lens: Low distortion and high measurement accuracy.

3.20-Megapixel High-Definition Black-and-White Gigabit Ethernet Digital Camera.

4.No Human Error: The measurement results are the same for anyone, ensuring consistent accuracy.

5.User-Friendly Interface: Easy and quick operation for anyone, thanks to an intuitive human-machine interaction interface.

6.Flexible Product Placement: Products can be randomly placed within the field of view without the need for any fixtures.

7.Automatic Data Report Export: After measurements are complete, data reports can be automatically generated and exported.

8.Automatic Surface Ring Light Adjustment: The light source automatically raises and lowers to accommodate products of different heights, and software adjusts automatically (optional coaxial surface light source).

9.Parallel Telecentric Bottom Light Source for consistent illumination.

10.Aesthetic Design: Stylish and visually appealing. The body is made from granite and aerospace aluminum, ensuring the device's stability.

11.Powerful Software Processing System and Precise Algorithms: Achieves high-precision measurement results.

Product Introduction:

1.Large Diameter High Depth of Field: Achieves clear imaging across the full field of view with ultra-low distortion.

2.20-Megapixel High-Resolution Digital Camera: Equipped with a high-resolution camera.Software uses advanced 20:1 sub-pixel image edge processing.

3.Automatic Software Filtering: Automatically filters burrs and anomalies, minimizing the impact on feature positioning.

4.Automatic Workpiece Recognition: No need for positioning, the system automatically recognizes workpieces.

5.Flexible Workpiece Placement: Multiple workpieces can be placed randomly; automatic recognition and batch measurement are supported.

6.Powerful Programming Interface: Offers a comprehensive programming interface for custom tasks.

7.Simple and Convenient Quick Test Interface: User-friendly for quick testing.

8.Advanced Compensation, Calibration, and Calculation Functions: Effectively reduces equipment errors.

9.Powerful Measurement FunctionsThe software provides complete geometric measurement functions.Includes powerful edge detection and matching capabilities.High efficiency in matching, with support for multi-feature matching.One-click measurement for multiple workpieces.Direct CAD file import for measurements.Flexible user programs.Automatic calculation of form and position tolerances.Diverse data report and graphic data export options.Rich external interfaces, suitable for online production needs.

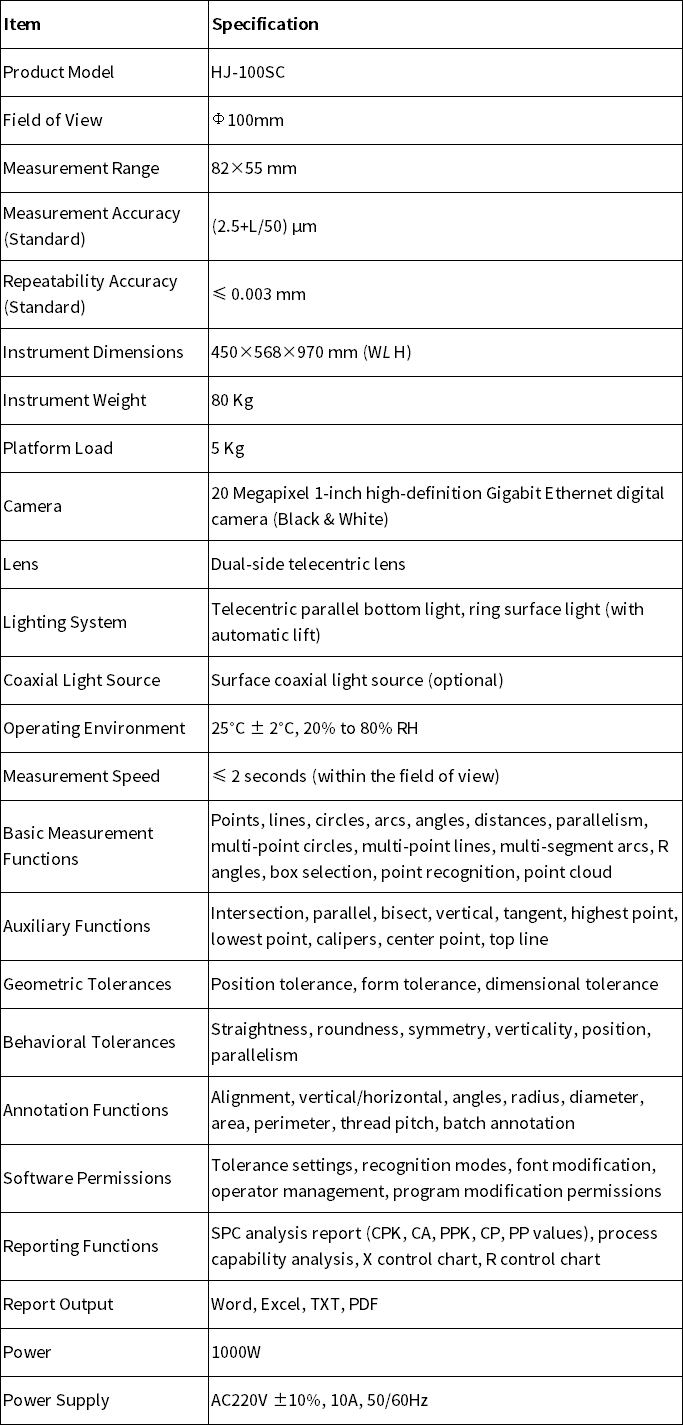

Product Parameters:
