Scope of Application:

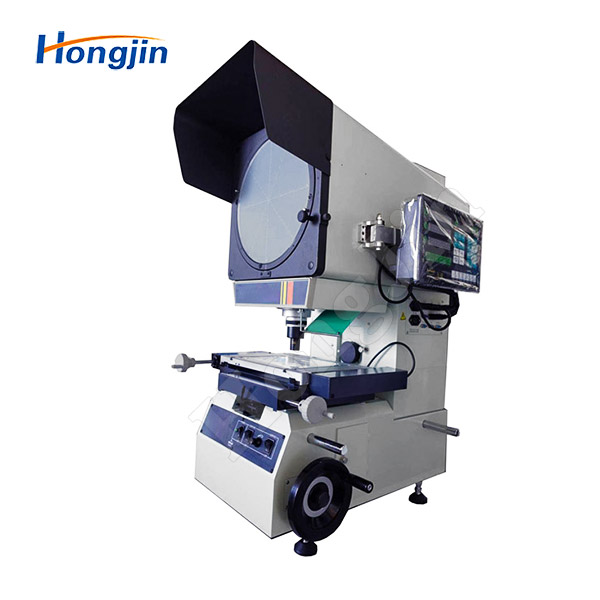

The projector is a precision and efficient measuring instrument that integrates optics, mechanics, and electronics. It is widely used in industries such as machinery, instrumentation, electronics, light industry, as well as in universities, research institutes, and metrology departments. This instrument efficiently detects the contour dimensions and surface shapes of various complex-shaped workpieces, such as templates, stamped parts, cams, threads, gears, and forming milling cutters.
Product Features:
This product features a high-quality optical system, providing clear imaging through the objective lens and accurate magnification. Under transmitted light illumination, the contour measurement error is less than 0.08%, and the coordinate measurement reading error can reach (3+L/200) μm. It is equipped with a dedicated mini printer and footswitch, making data output and sampling very convenient. The workpiece image can be either an upright or an inverted image. The projector’s Z-axis elevation uses a rail transmission method, enhancing the stability and durability of the machine. The projector delivers clear imaging with accurate magnification.

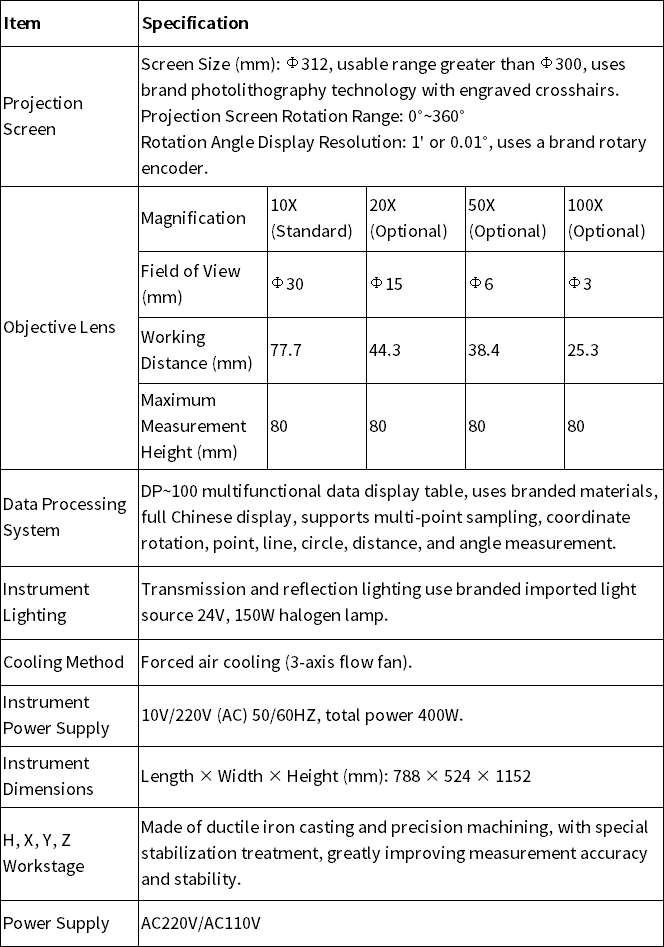

Product Parameters:
Actual Product Photos:
