HONGJIN
Carton Compression Strength

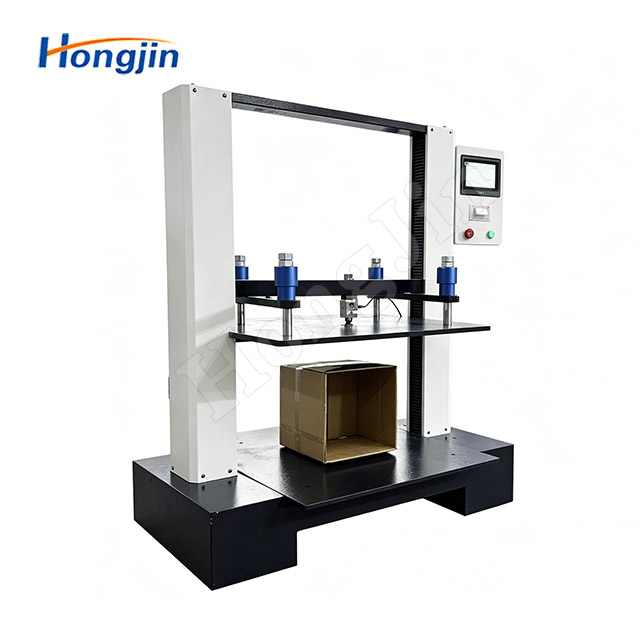

Carton compression strength refers to the maximum load and deformation a carton can withstand before failure when a uniform dynamic compressive force is applied by a compression testing machine.The carton compression testing machine is suitable for compression and stacking tests of packaging containers, corrugated cartons, paper drums, paper tubes, plastic containers, and similar products. A single machine supports multiple test modes, including compression strength testing, constant-load testing, and stacking testing.Equipped with a precision ball screw drive system, the carton compression testing machine is widely used in food manufacturing, pharmaceutical companies, packaging enterprises, and quality inspection organizations.
Technical Features:
1.Microcomputer processing system with color touchscreen control, providing convenient and user-friendly operation.
2.Integrated functions for testing, display, data storage, statistics, printing, and real-time display of compression curves.
3.Built-in data processing capability, allowing direct calculation and output of statistical test results.
4.Automatic return (reset) and fault diagnosis functions for easy and reliable operation.
5.Multiple test modes available, including compression strength, stacking strength, constant-load strength, and compression displacement measurement.
6.Real-time display of compressive force, deformation, and other test information during testing.
7.Equipped with dual precision lead screws and four precision guide columns, ensuring high parallelism of the upper and lower platens and stable high-speed transmission during testing.
8.Software supports real-time compression curve display, with powerful data display, analysis management, and data storage functions.
Test Modes:
1.Compression Strength Test: Measures the maximum compressive load of the carton and the corresponding displacement.
2.Constant-Value Test: Evaluates the overall performance of the carton based on preset load and displacement values.
3.Stacking Test: Conducted in accordance with national standards, allowing stacking tests under different conditions such as 12 hours, 24 hours, etc.

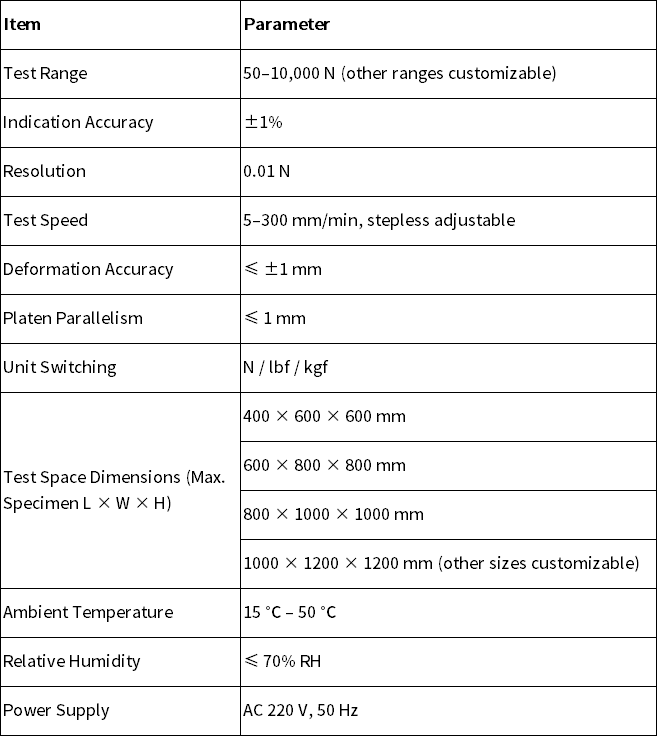

Product Parameters:

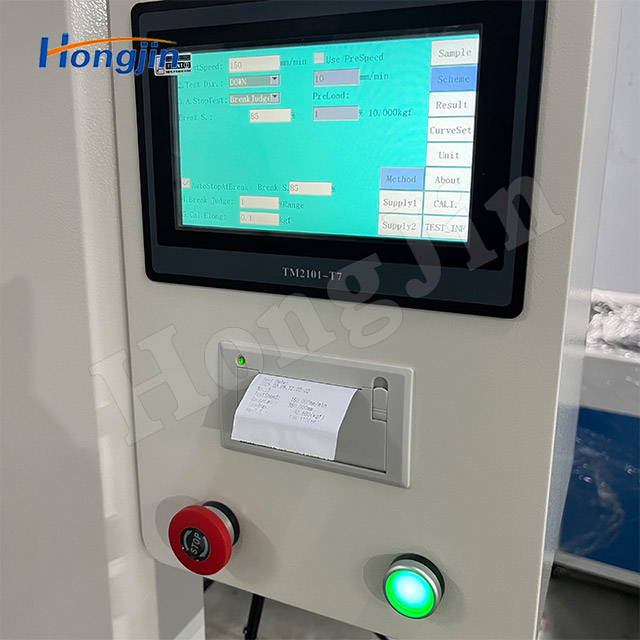

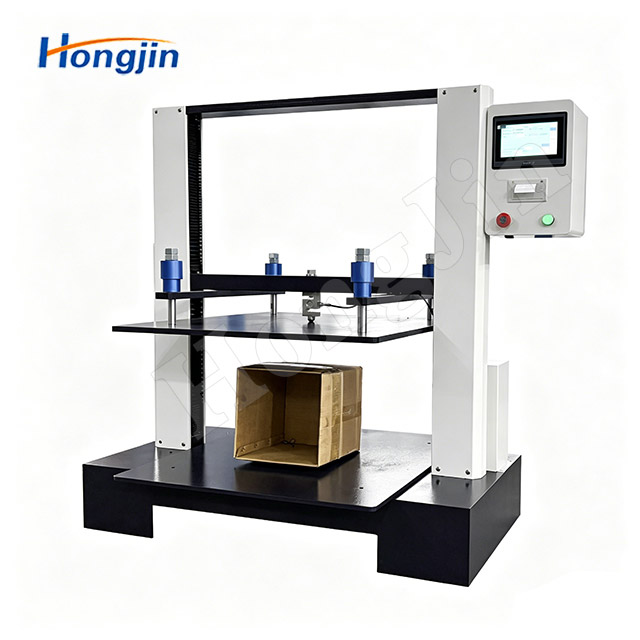

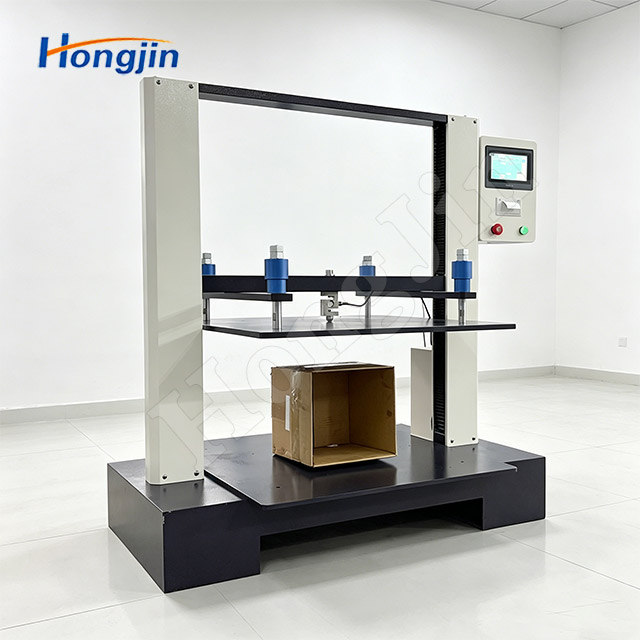

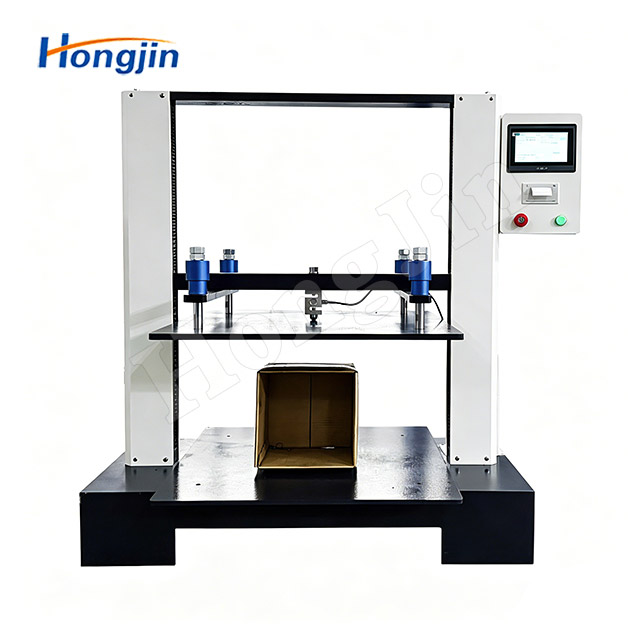

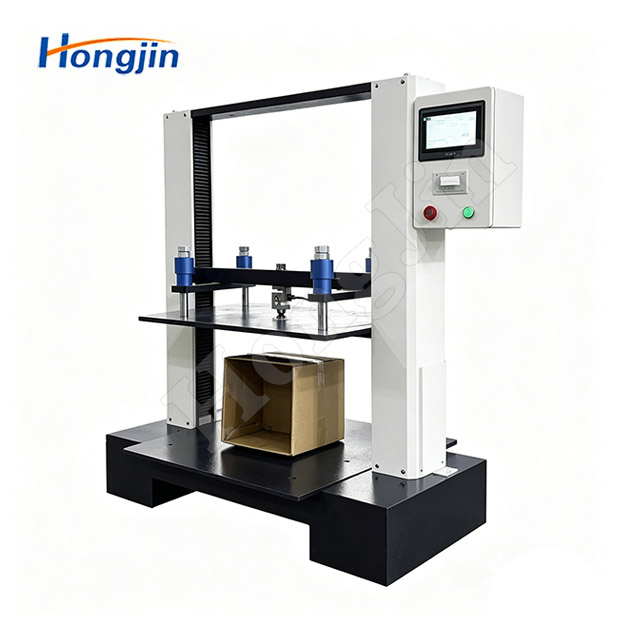

Actual Product Photos:
