HONGJIN
Application:

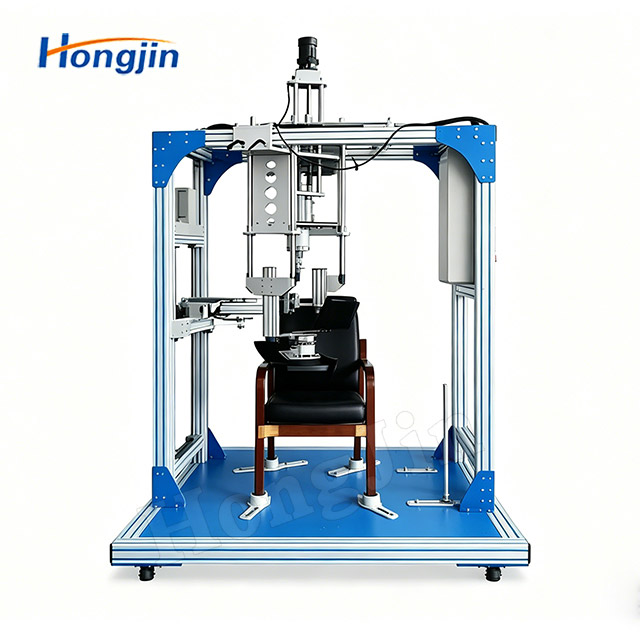

Suitable for seating products such as office chairs, chairs, and stools. This office chair testing equipment is a multifunctional testing system that simulates a human repeatedly sitting on the seat and leaning backward against the backrest, in order to evaluate the performance of the seat and the chair back.
Product Features:
1.Touchscreen with PLC control, featuring power-off and power-failure memory functions;
2.Multifunctional testing equipment with selectable pneumatic cylinder output force;
3.Equipped with sample damage alarm and automatic shutdown function—during testing, the machine stops immediately when a damaged sample triggers the sensor;
4.Automatic or manual pressure regulation; the pressure-regulating valve ensures stable cylinder output force, with digital display of the cylinder force value;
5.Test fixtures are installed using quick connectors for easy and fast operation;
6.Aluminum profile frame structure with a stainless-steel testing platform, providing a sturdy structure and an attractive appearance;
7.Positioning and stroke adjustment use electric lifting, while air pressure is automatically regulated by a servo proportional valve.

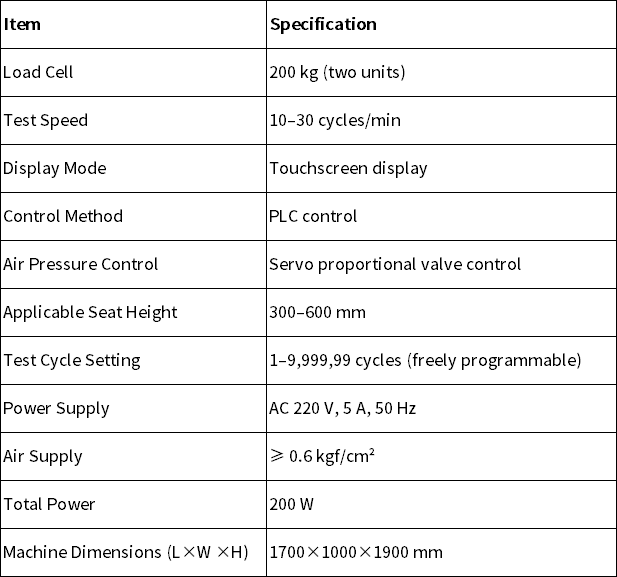

Product Parameters:

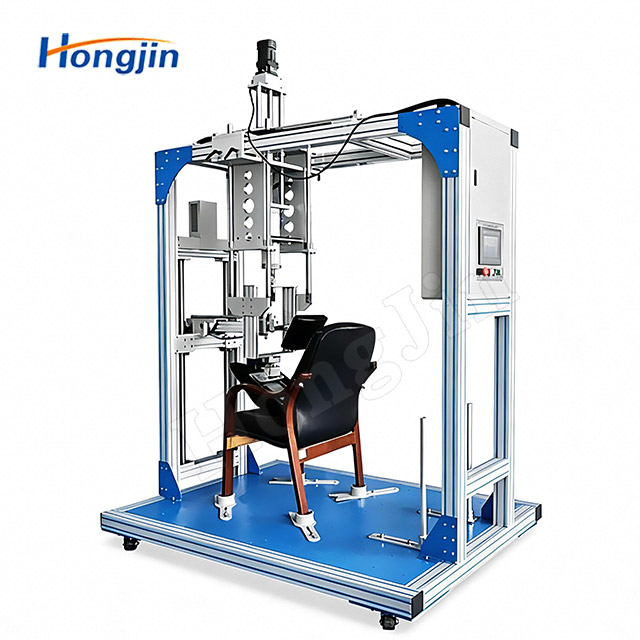

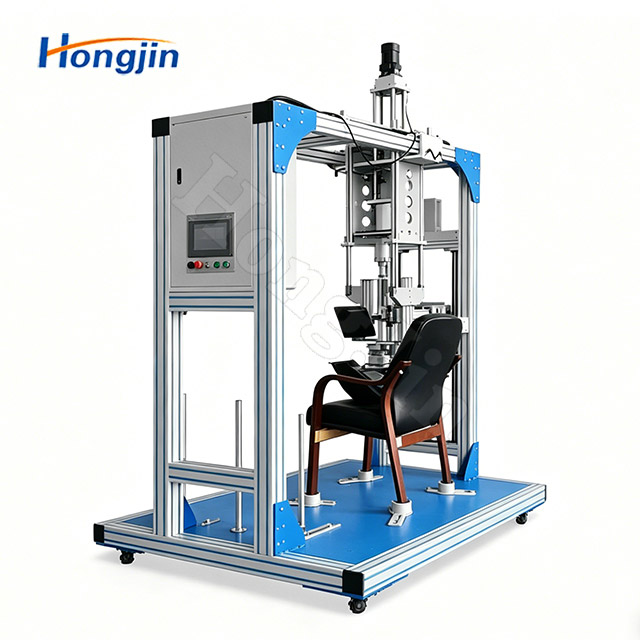

Actual Product Photos:
Company Profile:
