Scope of Application:

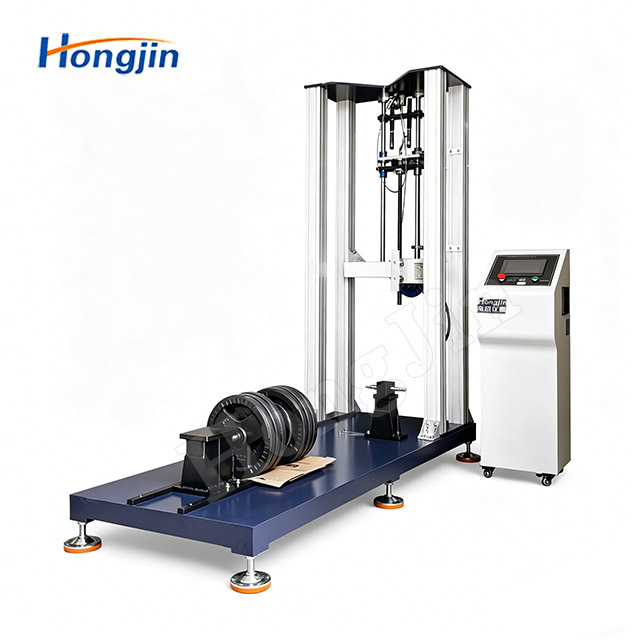

The bicycle frame front fork drop impact test machine is mainly used to evaluate the vertical impact performance of the bicycle frame and front fork assembly, simulating the scenario when the front wheel leaves the ground and then contacts the surface during riding.
Specific Scope of Application:
1. Front Fork Drop Impact: Tests the strength and durability of the front fork during free fall or under external impact.
2. Frame Assembly Drop Impact: Simulates the overall structural stability of the frame and front fork during a drop.
3. Heavy Object Drop Impact: Verifies the impact resistance of the frame and front fork assembly under vertical heavy object impact, simulating bumps encountered during riding.
Product Overview:
This testing machine is suitable for drop tests of bicycle components, including drop impact tests of frame and front fork assemblies. The machine features a modular design, with specifications, functions, and applications in compliance with relevant standards. It is safe and easy to operate.
Product Features:
1.The main structure of the machine is made of steel components, offering high strength and excellent resistance to deformation.
2.The machine base is constructed of solid steel, providing good stability, and is equipped with reinforcing ribs and adjustable leveling feet.
3.The machine surface is treated with electrostatic powder coating, while other components are electroplated, ensuring high corrosion resistance and an attractive appearance.

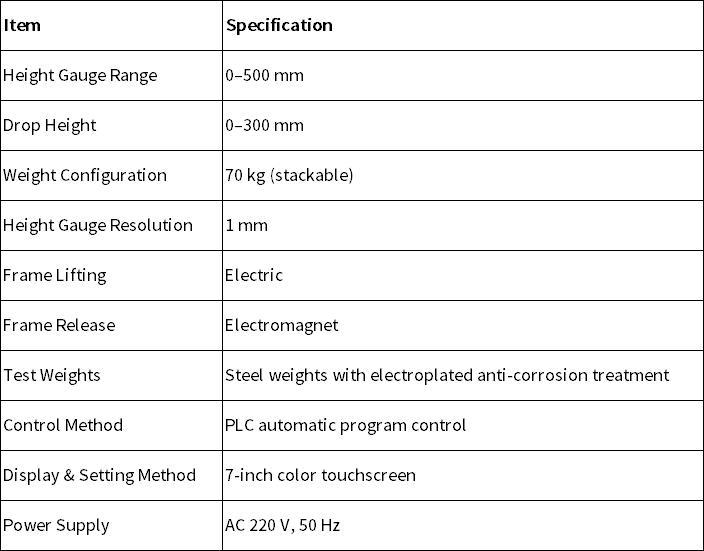

Product Parameters:

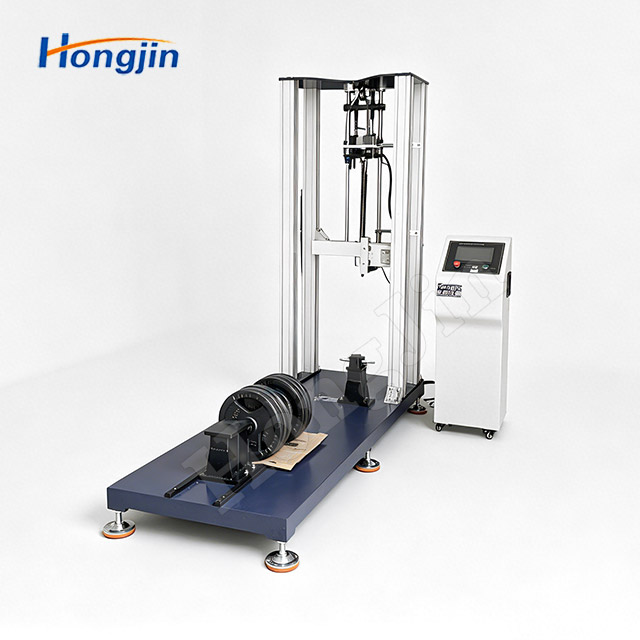

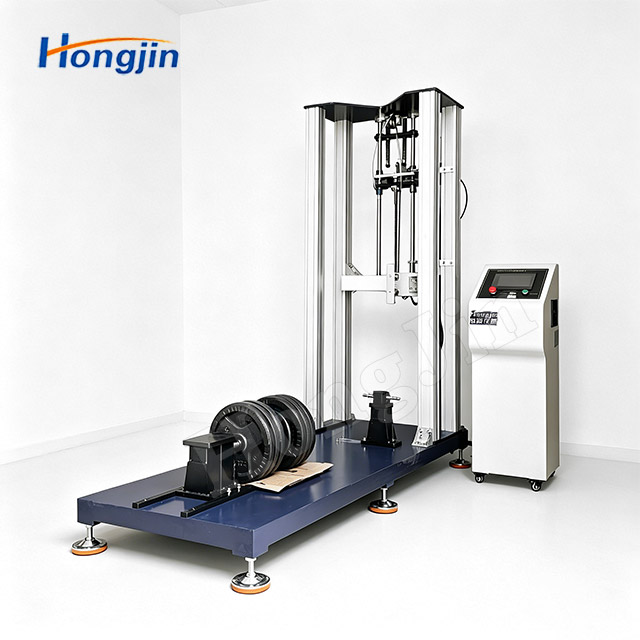

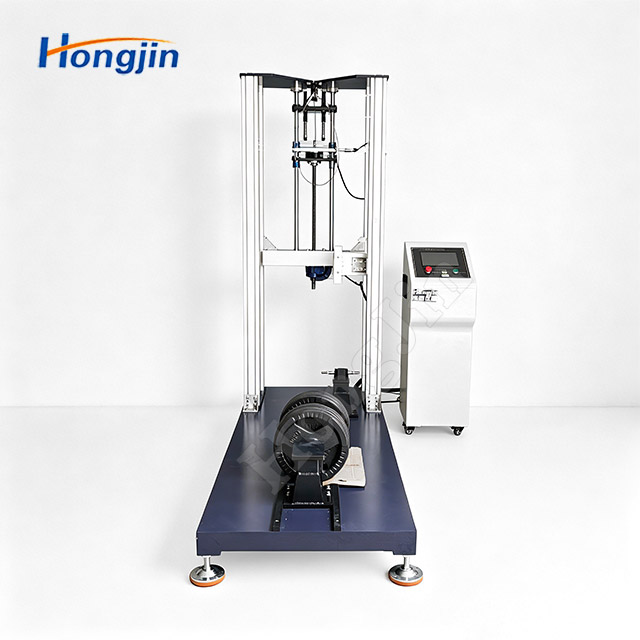

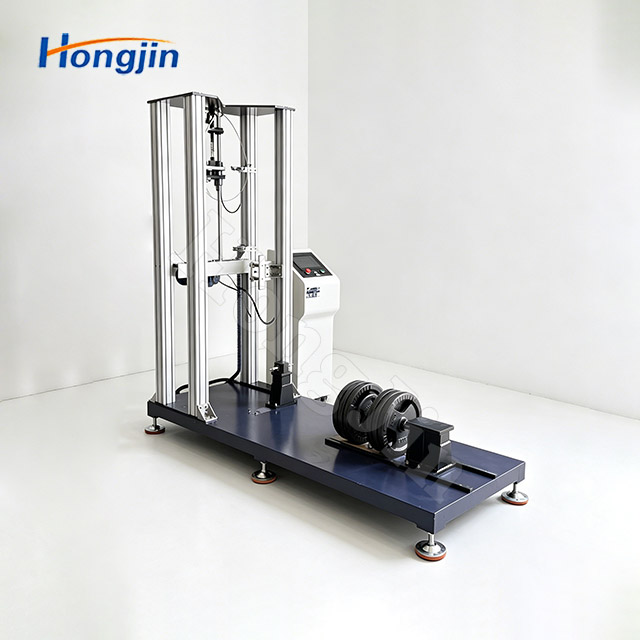

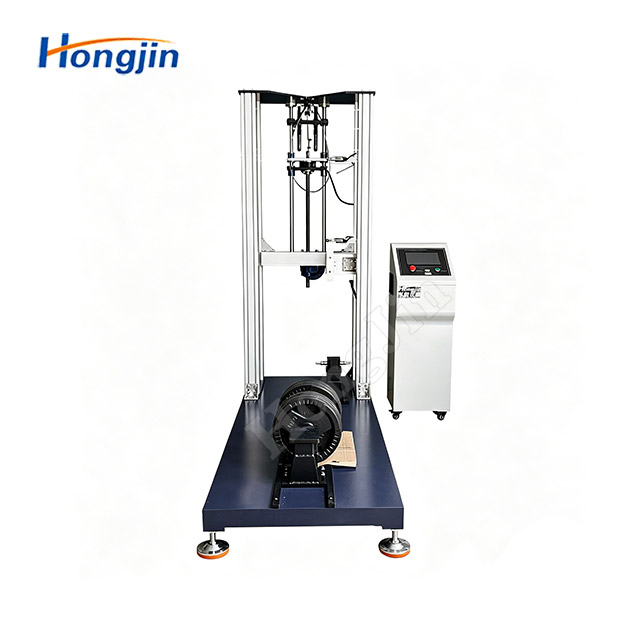

Actual Product Photos:
