HONGJIN
Application Scope:
Used to test the wear resistance of wires under various environmental conditions. This equipment mainly simulates friction and abrasion of wires in harsh environments, ensuring that the wire insulation can withstand actual wear during use, thereby guaranteeing the safety and reliability of the wires.
Test Standards and Methods:
The wire abrasion resistance tester evaluates the abrasion resistance of electrical wires by simulating scraping and wear conditions encountered during actual use. The specific test methods are as follows:
1.The scraping device moves back and forth along the axis of the wire, with a stroke greater than 10 mm and an operating frequency of 50–60 cycles per minute.
2.An intelligent counting system provides clear and intuitive display; the machine automatically stops once the preset number of cycles is reached.
3.Automatic stop function: When the scraping needle wears through the insulation and comes into contact with the conductor, the equipment automatically stops.
Through these test methods and standards, the wire abrasion resistance tester can comprehensively evaluate the abrasion resistance of wires, ensuring their reliability and durability under various environmental conditions.

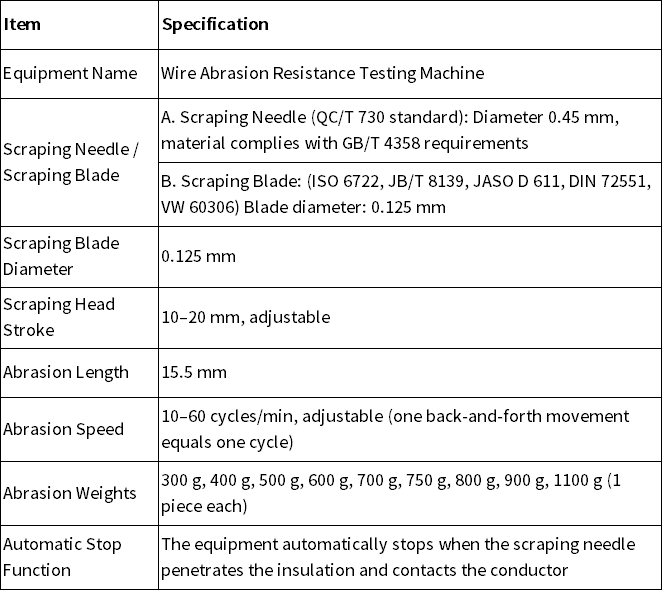

Product Parameters:

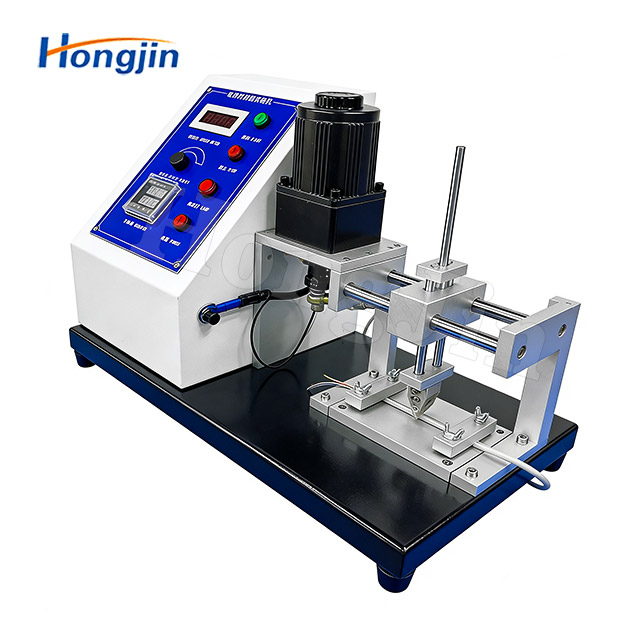

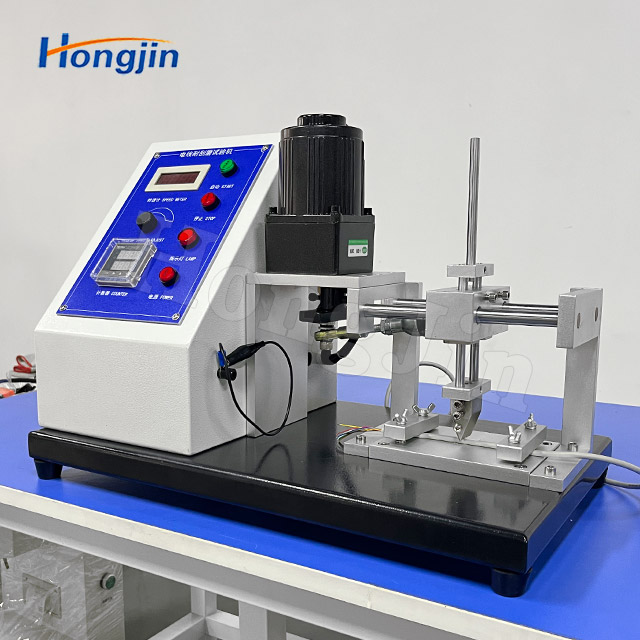

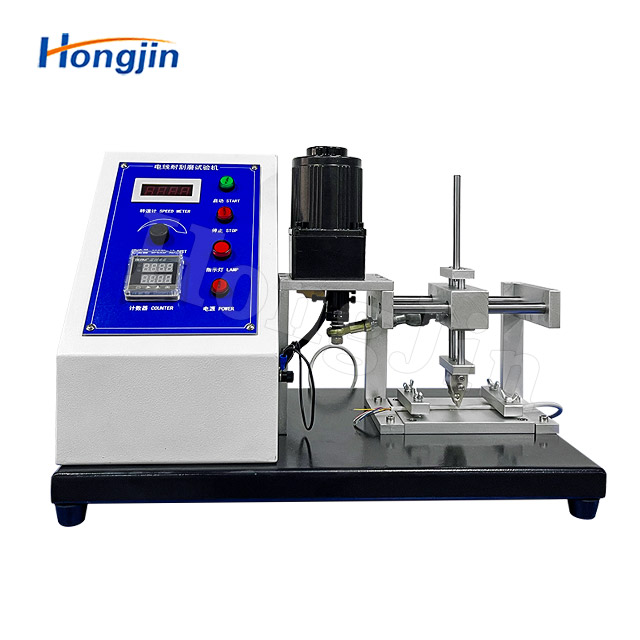

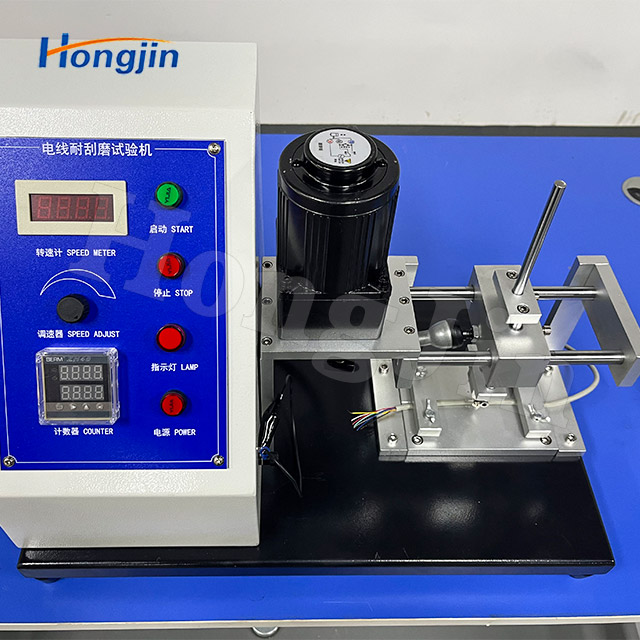

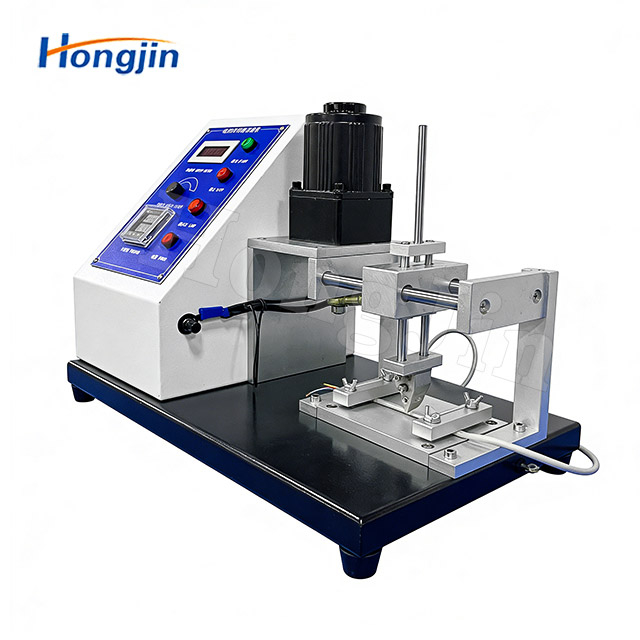

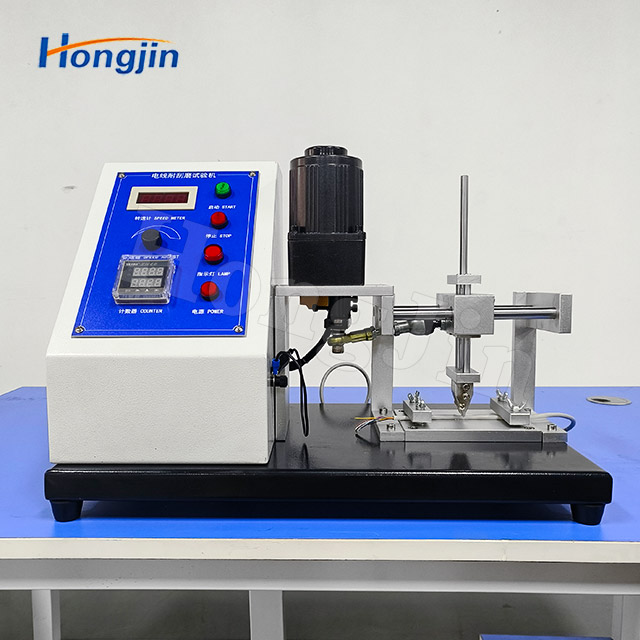

Actual Product Photos:
