HONGJIN
Application Scope:
The heat sealing tester uses the hot-press sealing method to determine key heat-sealing parameters—including sealing temperature, sealing time, and sealing pressure—of plastic film substrates, flexible packaging laminates, coated paper, and other heat-sealable composite films. It is an indispensable testing instrument for laboratories, scientific research, and on-line production quality control.
Test Principle:
The heat sealing tester adopts the hot-press sealing method to determine the heat sealing temperature, sealing pressure, and sealing time of plastic films and flexible packaging composite materials, so as to obtain accurate heat sealing performance parameters.The required temperature, pressure, and time are set via the touch screen. The built-in embedded microprocessor drives the corresponding components and controls the pneumatic system to move the upper sealing head up and down. Under specified heat sealing temperature, pressure, and time conditions, the packaging materials are heat-sealed together.By adjusting the heat sealing temperature, sealing pressure, and sealing time parameters, the optimal heat sealing process conditions can be determined.
Product Features:
1.Controlled by an embedded high-speed microprocessor, featuring a concise and efficient human–machine interface that provides a smooth and comfortable user experience.
2.Standardized, modular, and serialized design concept, maximizing the ability to meet users’ customized requirements.
3.Touchscreen operation interface.
4.8-inch high-definition color LCD screen with real-time display of test data and curves.
5.Imported high-speed, high-precision sampling chips ensure excellent test accuracy and real-time performance.
6.Digital PID temperature control technology enables rapid achievement of the set temperature while effectively minimizing temperature fluctuations.
7.Test parameters such as temperature, pressure, and time can be directly input via the touchscreen.
8.Specially designed heat sealing head structure ensures uniform temperature distribution across the entire sealing surface.
9.Both manual and foot-pedal test start modes, combined with anti-scalding safety design, ensure operational convenience and user safety.
10.Upper and lower heat sealing heads can be independently temperature-controlled, providing more flexible combinations of test conditions.

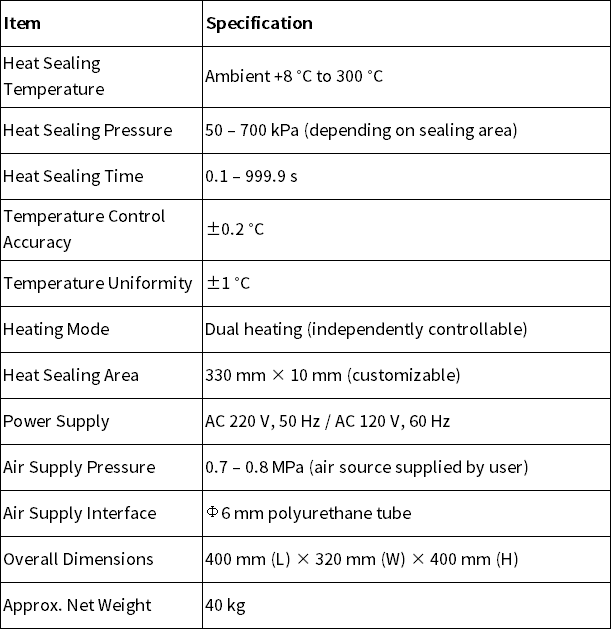

Product Parameters:

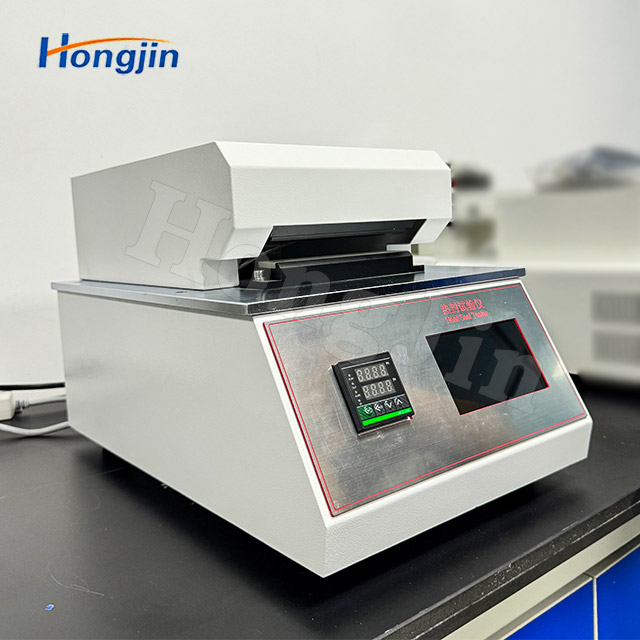

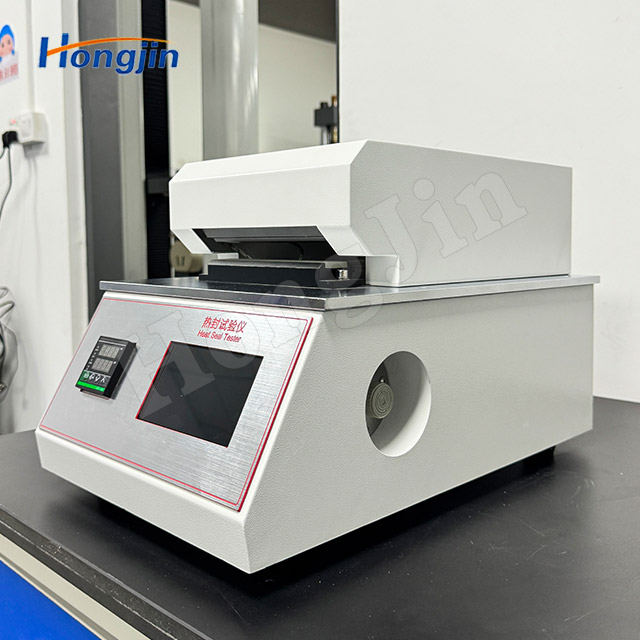

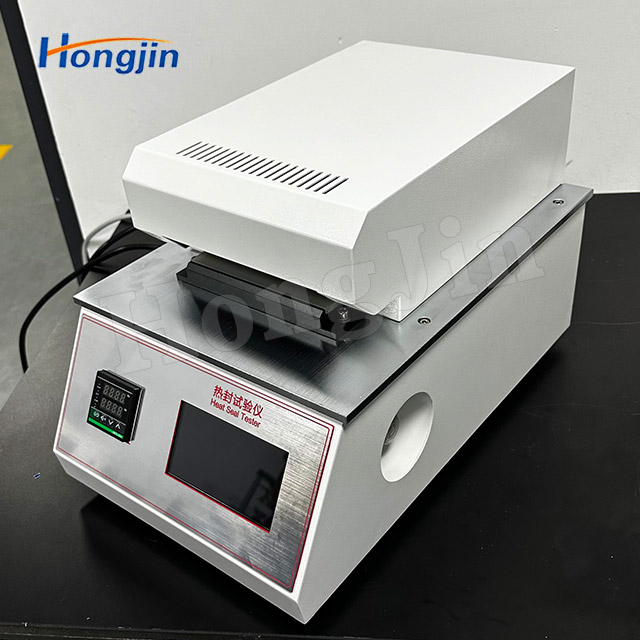

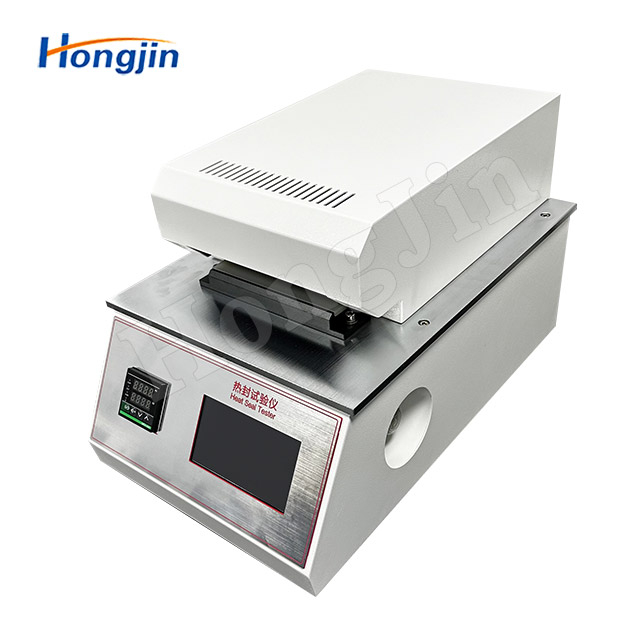

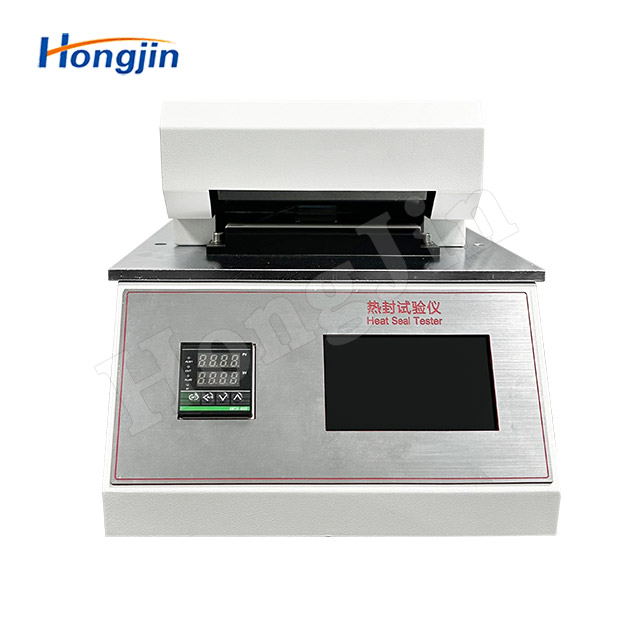

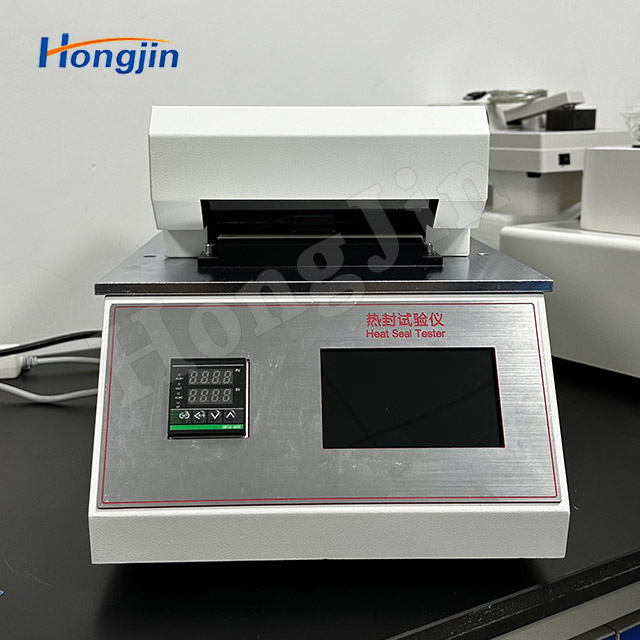

Actual Product Photos:
