HONGJIN
Application Scope：
The HJ-180E is an economical, practical, and easy-to-operate X-ray Fluorescence (XRF) Spectrometer, designed for RoHS compliance testing, halogen analysis, heavy metal content analysis, and metal plating thickness/composition analysis.The instrument provides excellent detection limits and high analytical accuracy for elements such as Lead (Pb), Mercury (Hg), Cadmium (Cd), Chromium (Cr), Bromine (Br), and Chlorine (Cl).Its analysis software integrates Fundamental Parameter (FP) method, Neural Network algorithms, empirical coefficient method, and basic parameter analysis, ensuring reliable and precise results.The HJ-180E fully complies with the regulatory requirements of RoHS, WEEE, EN71 standards, and ELV directives.With a carefully designed open working curve function, it is especially suitable for multi-material factory process control and incoming material inspection.Typical Applications:RoHS compliance analysis of incoming materials;Heavy metal and halogen content analysis;Metal plating thickness and composition analysisApplicable Industries & Materials：Hardware and fasteners;Connectors and terminals;Electronics and electrical components;Electroplating industry;PCBs;PlasticsLeather and footwear materials.
Functions：
RoHS compliance analysis、Metal composition analysis、Halogen content analysis、Electroplated coating (plating thickness and composition) analysis
Product Features(Applicable test samples: powders, solids, and liquids)：
1.Rapid elemental analysis covering elements from sulfur (S) to uranium (U).
2.Wide detection range from 0.01% to 100%.
3.Short measurement time, with each analysis completed in 60–300 seconds.
4.Equipped with a 50-megapixel color CCD camera for real-time sample imaging and observation.
5.Multiple collimator and filter options available: 6 collimators and 4 filters with motorized automatic switching to meet different testing requirements for various materials.
6.High-performance thermoelectrically cooled Si-PIN detector from a renowned brand, providing improved measurement stability and higher analytical accuracy, with no consumables required.
7.Streamlined appearance design with a simple and reliable mechanical structure.
8.Internationally advanced qualitative and quantitative analysis algorithms, including Fundamental Parameters (FP) method, empirical coefficient method, neural network method, and basic parameter method.
9.Fully enclosed metal housing with leakage-protection safety interlock, ensuring enhanced operator safety. Conveyor-style streamlined design, elegant appearance, large internal sample chamber, optimized internal ventilation, and effective electromagnetic interference shielding.
10.Advanced ultra-short optical path design combined with an air-cooled X-ray tube and proprietary tube control program, providing superior heat dissipation, ensuring long-term stable operation, and effectively extending X-ray tube service life.
11.Top-illumination configuration, suitable for testing samples of various shapes. A high-precision imaging and collimation system enables accurate spot analysis of the sample.
12.Automatic spectral line identification and simultaneous multi-element qualitative and quantitative analysis, allowing users to easily understand sample composition. An automatic safety protection system is integrated to ensure safe operation.

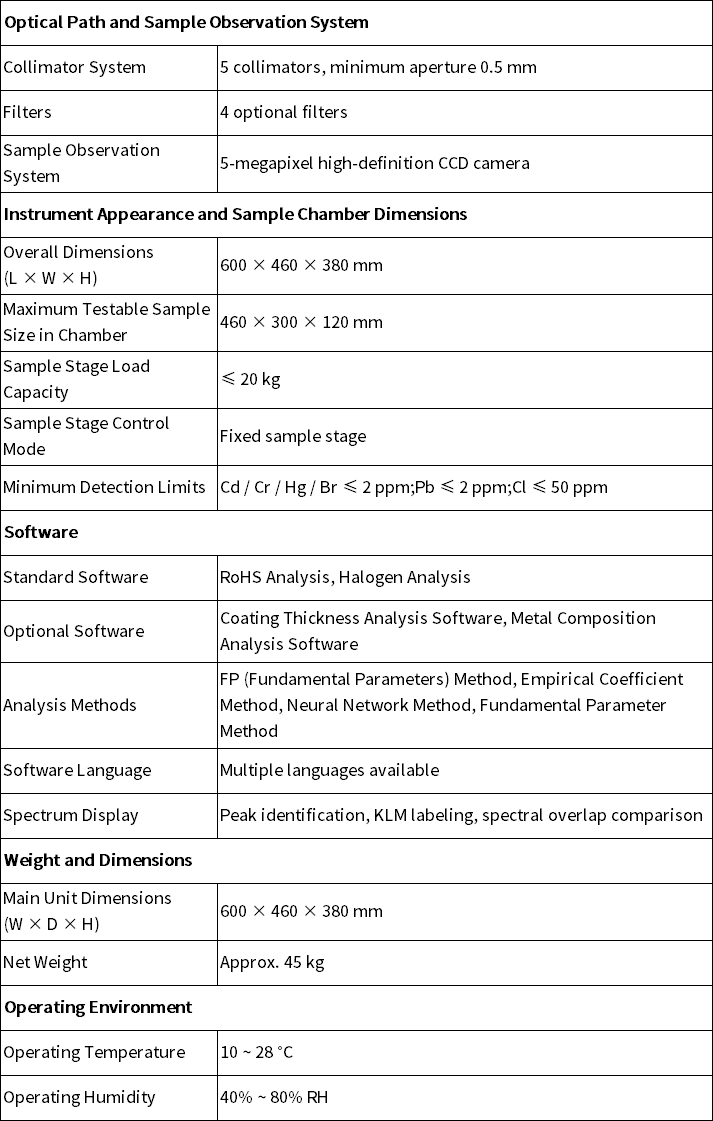

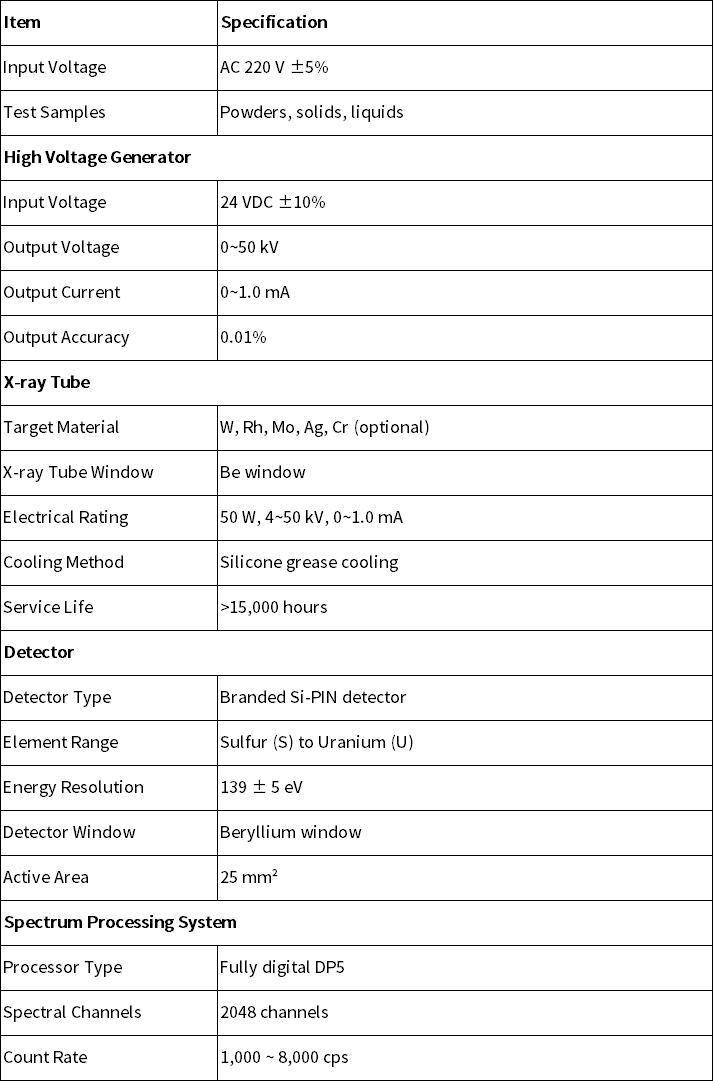

Product Parameters:

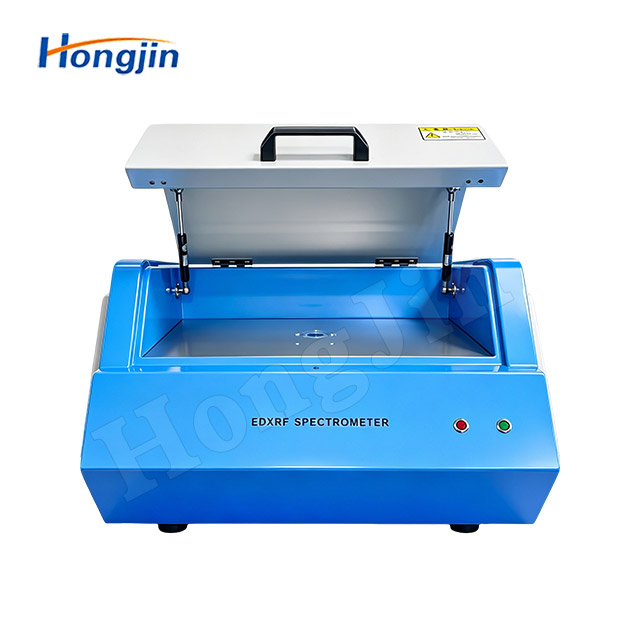

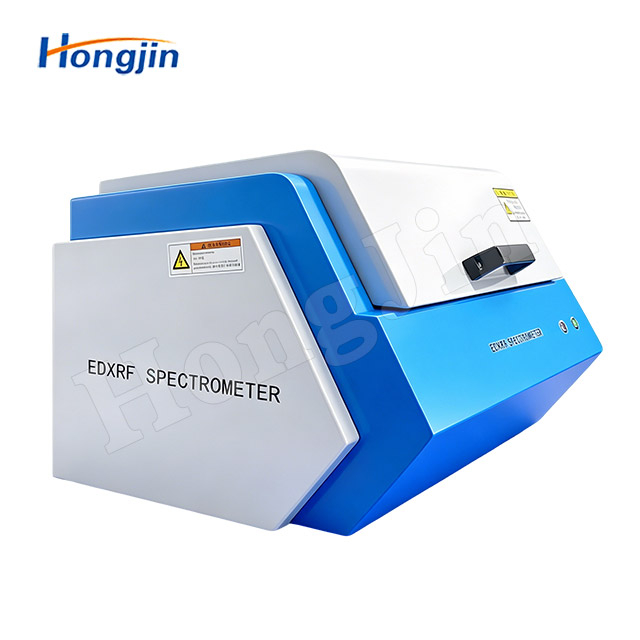

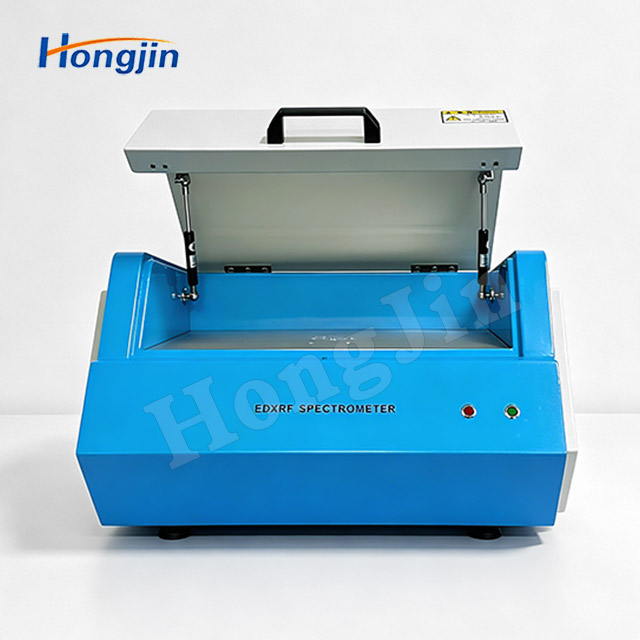

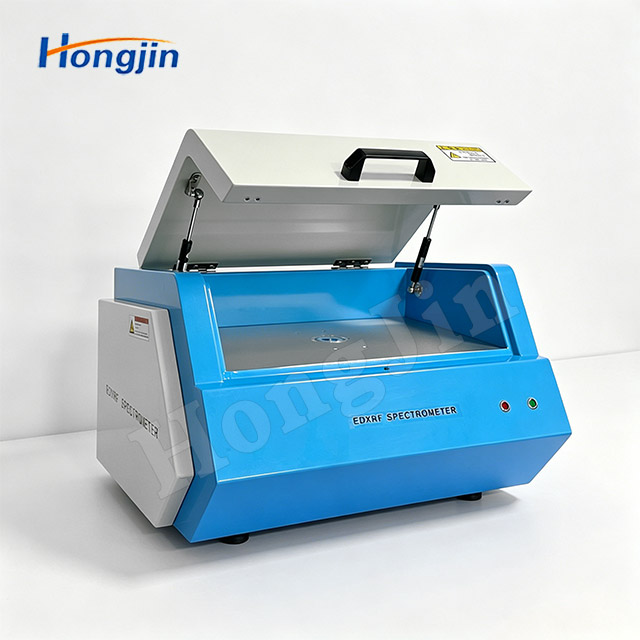

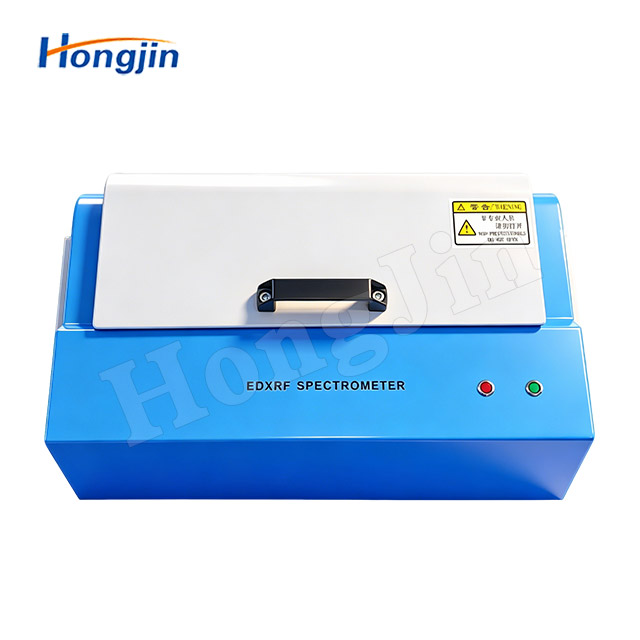

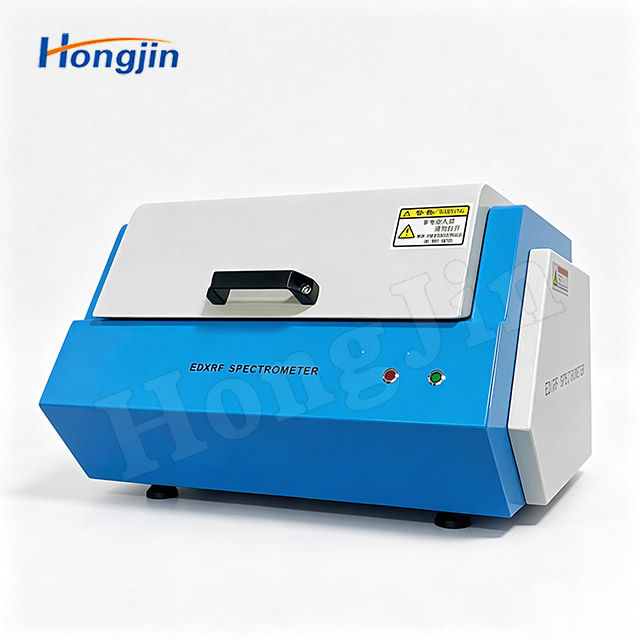

Actual Product Photos:
