Scope of Application:
The laptop hinge life test machine is suitable for testing notebook computers to determine whether the hinge still maintains sufficient holding force or whether the hinge resistance increases and causes damage to the plastic housing after repeated opening and closing of the top cover.This machine adopts a high-end touchscreen LCD with full Chinese display, making it easy to operate. All parameters—including force, angle, speed, and cycle count—are digitally controlled. The hardware uses a stepper motor combined with an imported PLC and LCD screen, offering high accuracy, low noise, and long service life.
Equipment Features:
1.Electrostatic baking paint finish is applied, while the worktable and fixtures are made of anodized aluminum. The overall design is well-engineered with a rigid structure, ensuring safe, stable, accurate operation that meets testing requirements.
2.Touchscreen setting interface with a PLC control system and precision motor drive makes testing convenient and better aligned with test requirements.
3.Presettable parameters such as angle, speed, and cycle count offer a user-friendly design and improved practicality.

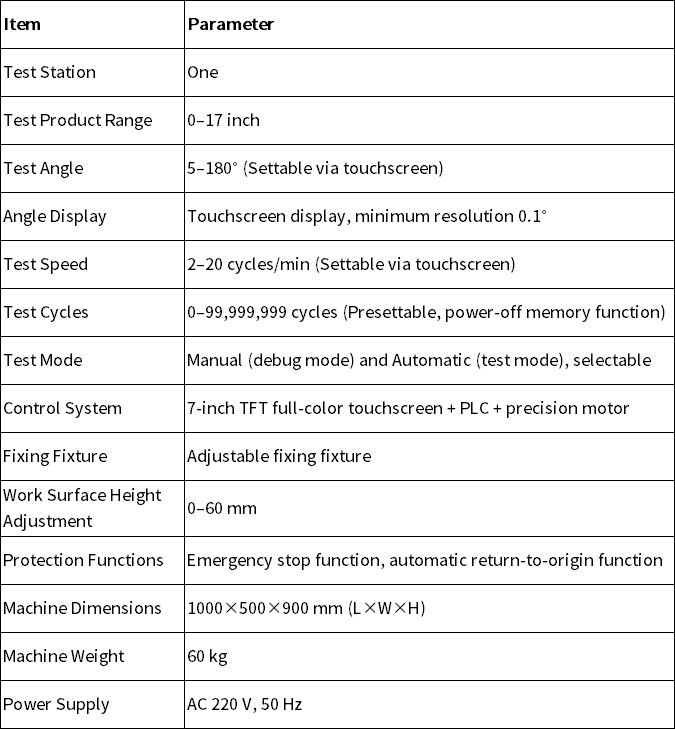

Product Parameters:

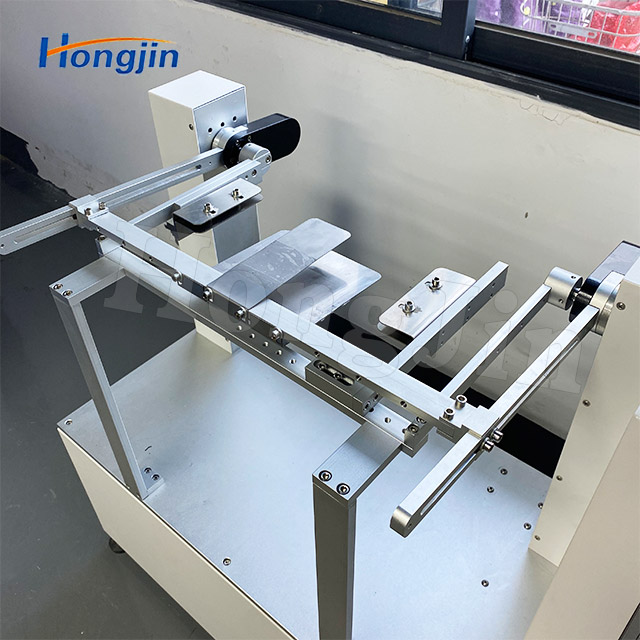

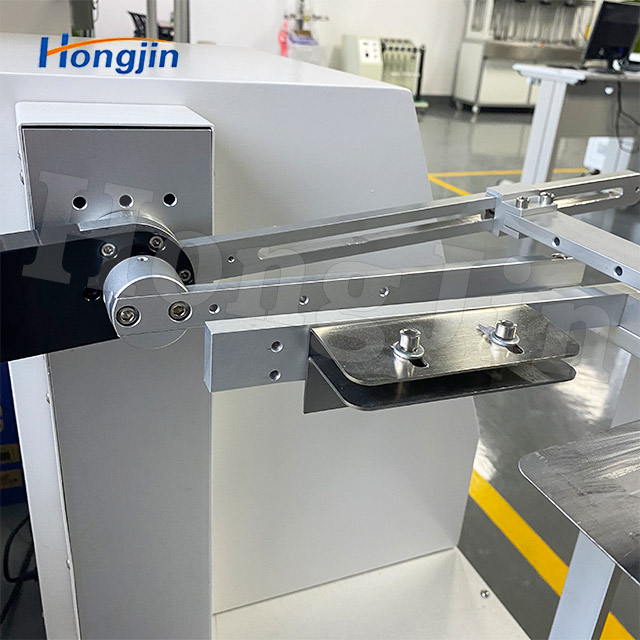

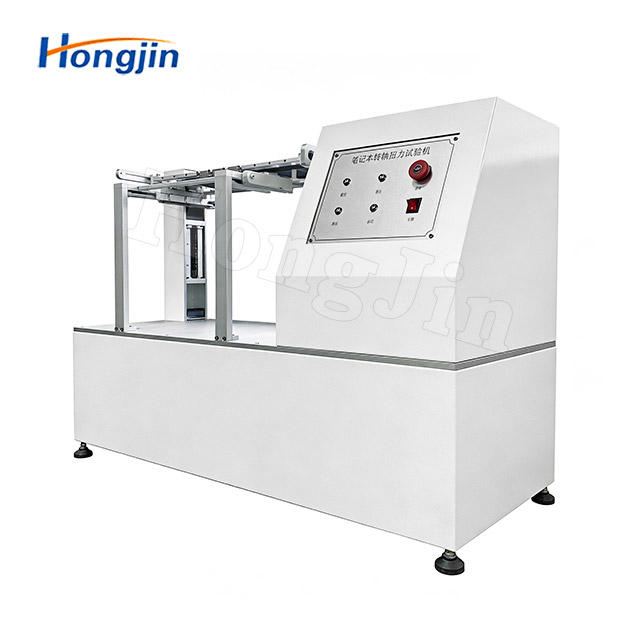

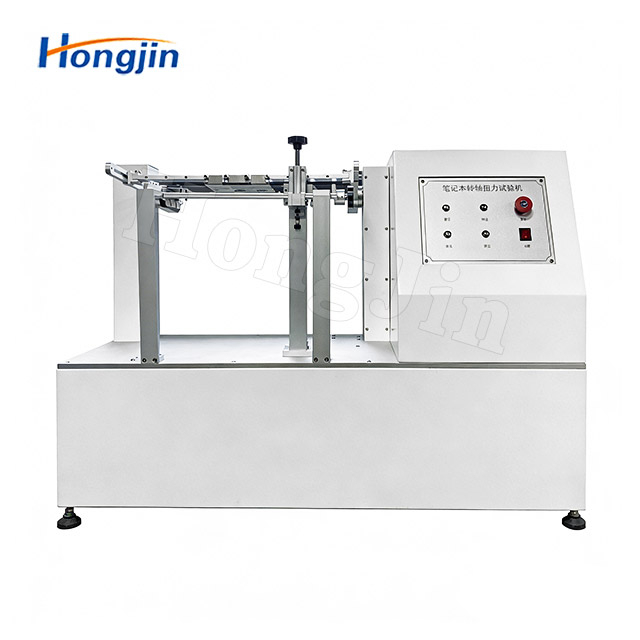

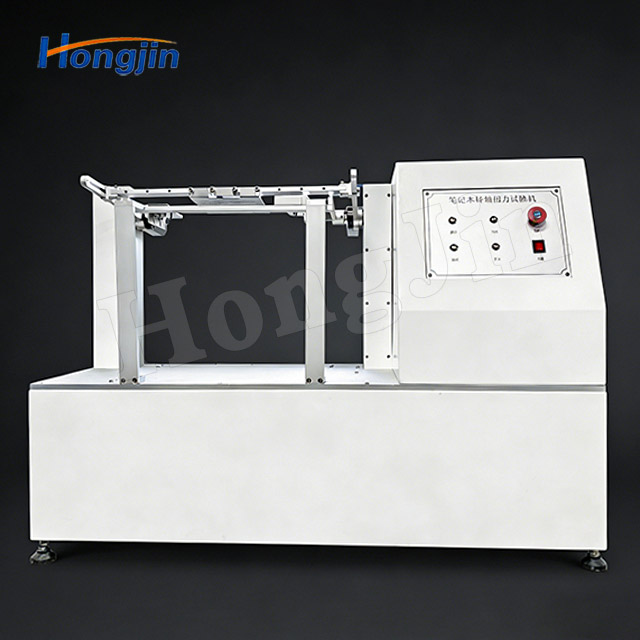

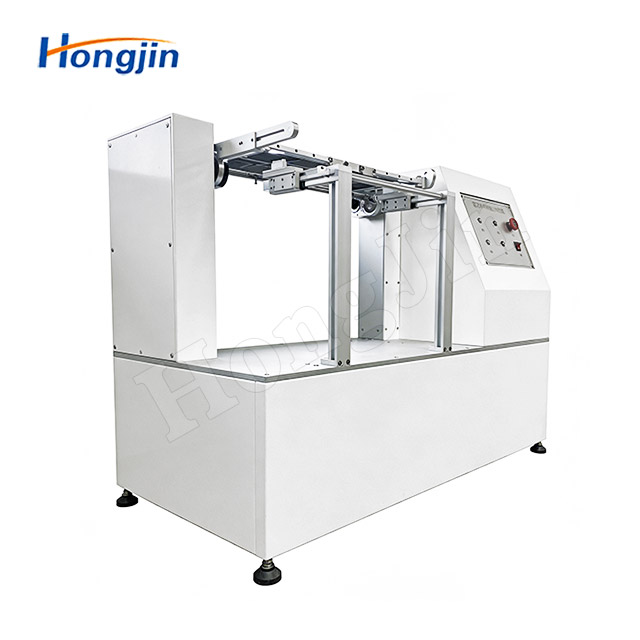

Actual Product Photos:
Company Profile:
